Inflatable Air Tent with Waterproof Sealed Seams and Rapid 16-Minute Setup for Modular Scalability up to 32.4m
Inflatable Air Tent with Waterproof Sealed Seams and Rapid 16-Minute Setup for Modular Scalability up to 32.4m
Inflatable Air Tent with Waterproof Sealed Seams and Rapid 16-Minute Setup for Modular Scalability up to 32.4m
Inflatable Air Tent with Waterproof Sealed Seams and Rapid 16-Minute Setup for Modular Scalability up to 32.4m
Inflatable Air Tent with Waterproof Sealed Seams and Rapid 16-Minute Setup for Modular Scalability up to 32.4m
Inflatable Air Tent with Waterproof Sealed Seams and Rapid 16-Minute Setup for Modular Scalability up to 32.4m
Specifications
Payment Terms :
T/T,L/C
Supply Ability :
3000 UNITS /YEAR
Model Number :
Air Tent
Frame Type :
Inflatable air beams instead of traditional poles
MOQ :
1 UNIT
Delivery Time :
5-8 work days
Shipping Way :
By sea , by air , by express
Price :
Negotiable
Workmanship :
Triple stitch on jumping surface
Packaging Details :
transport case or carton
Certification :
CE
Trade Term :
FOB
Place of Origin :
China
Lifepsan :
5 Years Above
Brand Name :
HAFE
Water Resistance :
Waterproof with sealed seams
Description

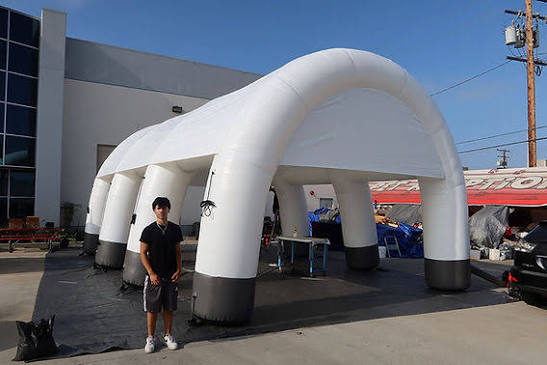

HAFE Multi-Arch Modular Pavilion Series
Create a seamless, cathedral-like corridor of space with HAFE's interlocking arch pavilions—engineered for modular scalability, effortless setup, and a pristine white aesthetic.
The HAFE Multi-Arch Modular Pavilion Series presents a stunning architectural solution for large-scale outdoor gatherings. Characterized by a series of continuous, repeating arched entryways, this white inflatable tunnel system delivers an impressive, rhythmic visual impact while providing a deeply functional, expansive interior.
Product Specifications
Specification Item HAFE Multi-Arch Modular Pavilion (Per Standard Unit)
Recommended Single Arch Footprint 8.2m (Width) * 5.4m (Depth) per arch
Maximum Connected Span Up to 32.4m continuous length (Connects up to 6 arches)
Peak Internal Clearance 4.2m – 4.4m (Vaulted tunnel arch)
Structural Architecture High-pressure multi-chamber tubular air-beam arch frame
Primary Membrane Material Premium 685g/m² UV-resistant PVC-coated architectural canvas
Membrane Thickness 0.63mm – 0.77mm
Exterior Colorway Crisp White Shell / Heavy-Duty Black Base Skirt
Entryway Design 3 open arches per unit (Front, middle, rear for cross-flow)
Modular Connection System Heavy-duty weather-sealed side zipper tracks with tension flaps
Operating Temperature Range -15°C to +50°C
Wind Load Capacity ≥ 23.5 m/s (Aerodynamic continuous arch)
Snow Load Capacity ≥ 0.46 kN/m² (Curved self-shedding roof)
Recommended Internal Pressure 155 Pa – 185 Pa
Flame Retardant Rating EN 13501-1 (B-s1,d0)
Setup Time (2-3 Persons) Approx. 16 Minutes per arch (High-volume electric blower required)
Included Accessories Heavy-duty spiral ground stakes, high-tensile guy lines, water-fillable ballast bags, arch-to-arch connection kits, storage rolls
Engineering & Operational Intelligence
  • Continuous Modular Arch Connection System: The hallmark of this design is the seamless side-zipper connection that allows adjacent arch units to be locked into a unified tunnel. The connection is reinforced by overlapping weather flaps and high-tensile tension straps, creating a fluid, continuous interior corridor.
  • Integrated Black Ballast Base Skirt: The prominent heavy-duty black skirt running along the bottom perimeter acts as a protective buffer against abrasion and houses reinforced anchor loops for water-fillable ballast bags, providing exceptional low-center gravity stability.
  • Three-Arch Open Flow Design: Each individual module features an arched entryway at the front, middle, and rear. This triple-open design allows for natural cross-breeze ventilation while maintaining the ability to convert to a fully sealed, weather-tight enclosure.
  • Tension-Lock Roof System: The arched roof is engineered with a proprietary tension-lock system. When fully pressurized, the inner cross-beams pull the white canopy fabric taut, ensuring the entire vaulted ceiling remains perfectly smooth and resistant to flapping in moderate winds.
Product Advantages
Limitless Modular Scalability
Start with a single 5.4-meter arch and seamlessly connect up to 6 units to create a cavernous, 32.4-meter continuous hall that perfectly scales to your exact requirements.
Rapid, Zero-Metal Commercial Setup
A single 8.2-meter wide arch inflates to full rigidity in just 16 minutes. No heavy steel trusses, complex crane rigging, or specialized construction crews required.
Versatile Hard-Surface Anchoring
The robust black base skirt and included water-ballast bags allow secure anchoring on asphalt parking lots, concrete plazas, or indoor exhibition halls without surface damage.
Professional Architectural Aesthetics
The crisp white shell combined with repeating arch silhouettes creates a highly polished, contemporary, and elegant visual presence that elevates brand activations.
100% Clear-Span Interior Corridor
With zero intrusive internal support legs, the tunnel offers an unobstructed, continuous corridor perfect for drive-through displays, rowed seating, or sprawling exhibition layouts.
Application Scenarios
  • Drive-Through Auto Shows & Vehicle Displays: The 8.2-meter wide, 4.2-meter high arches easily accommodate SUVs and commercial vans. Connect multiple units to create continuous, weather-protected display lanes.
  • Festival Entrance Gates & Ticketing Areas: Use connected arch series to create grand, welcoming entry portals for music festivals, guiding thousands of attendees through shaded, organized entry and security zones.
  • Temporary Warehouse & Inventory Staging: The durable, waterproof shell and rapid deployment make it exceptional for temporary logistics hubs, keeping bulk inventory dry and secure during peak seasonal surges.
  • Outdoor Catering & Food Court Pavilions: The open-arch design allows for excellent ventilation and an inviting atmosphere, perfect for housing multiple food vendor stalls in organized marketplaces.
Structural Comparison
Feature HAFE Multi-Arch Modular Pavilion Series Heavy Steel Frame Tunnel Tent Single-Chamber Standard Inflatable
Support Mechanism High-pressure multi-chamber air-beams Interlocking steel trusses Thin single air-tube
Continuous Scalability Excellent (Instant zipper connection for up to 6 units) Moderate (Requires additional steel kits and labor) Poor (Generally standalone)
Setup Speed (20m span) Ultra-Fast (< 32 mins for 4 units) Slow (Requires a crew and hours of work) Fast
Hard-Surface Anchoring Excellent (Integrated black skirt + water-ballast bags) Poor (Usually requires heavy drilling or bolting) Moderate
Interior Space 100% Column-Free (Open corridor) Heavily obstructed by steel legs Generally open
Aesthetic Appeal High (Repeating white arches, sleek design) Industrial (Exposed steel) Basic
Frequently Asked Questions
How does the connection system between different arches ensure water and wind tightness?
The connection point uses a three-layer sealing process: a heavy-duty industrial zipper provides the primary structural link, an overlapping PVC apron flap covers the zipper track, and a final set of tension straps compresses the seam against the air-frame. This ensures a completely watertight, airtight bond between modules, even during heavy rain.
What is the function of the black base skirt on the bottom of the pavilion?
The heavy-duty black skirt serves three critical functions. First, it acts as an abrasive shield, protecting the fragile white fabric from scraping against rough concrete, gravel, or asphalt. Second, it houses reinforced loops specifically for attaching the heavy water-ballast bags. Third, it provides a low-profile, dark visual border that anchors the white structure visually to the ground.
Do the continuous arches require a blower to run the entire time?
No. Like all HAFE products, this system utilizes a closed-loop inflation mechanism. You inflate the multi-chamber frame to the recommended 155–185 Pa pressure, seal the heavy-duty air-lock valves, and detach the blower. The entire connected 32-meter tunnel complex will remain completely rigid and self-supporting for days without continuous electrical power.
How do the water-ballast bags work on an asphalt parking lot?
The water-ballast bags are made from heavy-duty, watertight PVC. You simply fill them with water on-site (using a hose or water pump) and securely strap them around the heavy-duty anchor loops hidden inside the black base skirt. The combined weight of the water-filled bags provides immense downward pressure, preventing the tent from shifting or lifting, all without needing to drill a single hole into the asphalt surface.
Can I fully enclose the open arches if the weather turns bad?
Yes. Each module is supplied with optional detachable PVC end-walls and side panels. These panel sets are designed with a matching arch silhouette and can be quickly zipped into the front and rear archways, instantly converting the open-air tunnel into a fully sealed, waterproof, and wind-tight enclosed hall.
Why Choose HAFE?
  • Durable, Commercial-Grade Canvas: Our 685g/m² PVC materials are subjected to stringent testing for tensile tearing, UV degradation, and flame propagation, fully complying with the rigorous EN 13501-1 (B-s1,d0) international fire-safety standard.
  • Redundant Multi-Chamber Safety: The air-beam frame is divided into independent, sealed pressure zones. A single puncture in an isolated area will not result in a catastrophic collapse, ensuring the safety of your valuable equipment and event attendees.
  • Global Logistics & Technical Support: Every pavilion ships with comprehensive structural schematics, assembly manuals, and a dedicated point of contact within our global spare-parts network, ensuring you can readily source replacement components for years of reliable service.
  • Bespoke Customization Services: Need the black base skirt swapped for a custom brand color? Looking for a specific arch width to fit a given automotive lane? HAFE's in-house design and fabrication engineers are fully prepared to build custom-tailored modular halls that precisely match your unique requirements.
Ready to create a continuous, elegant event corridor with HAFE's multi-arch pavilion?
Contact our expert team today to configure your custom modular arch system.
