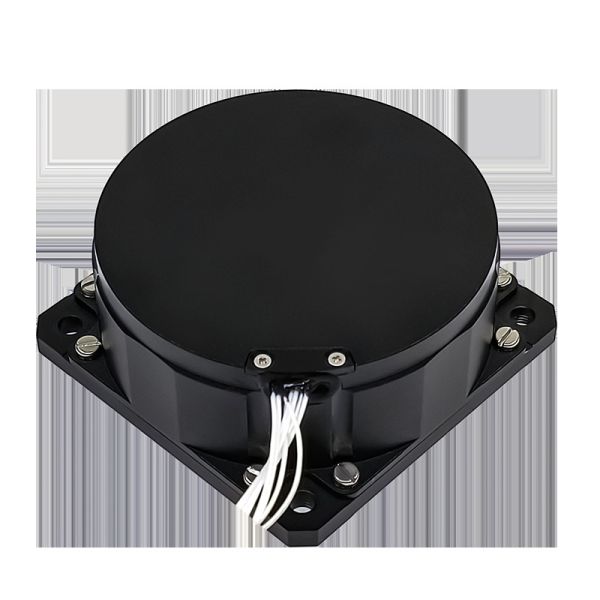

High-Precision Optical Fiber Gyroscope for Navigation and Orientation
High-Precision Optical Fiber Gyroscope for Navigation and Orientation
Specifications
Brand Name :
Star & Inertia Technology
Place of Origin :
China
MOQ :
1 set
Supply Ability :
5000 set per year
Delivery Time :
30 work days
Technical System :
Single-axis
Settling Time :
10s
Measuring Range :
≥±600°/sec
Accuracy :
≤0.2~0.05°/hr （10sec）
Power Supply :
+5V
Power Consumption :
≤ 3W
Data Output :
RS-422
Size :
60mm×60mm×28mm
Weight :
＜200g
Vibration Screening :
20~2000Hz，6.06g
Operating Temperature :
-45℃~+70℃
Storage Temperature :
-50℃～+85℃
Description

The optical fiber gyroscope (FOG) is a solid-state angular rate sensor based on modern physical principles. With no moving parts, it provides high reliability and excellent performance under vibration and shock. Data is output via serial interface, ensuring easy integration with navigation or control systems.

Key Features:

  • Solid-State Design – No mechanical components, reducing wear and maintenance.

  • High Reliability – Stable performance under vibration, shock, and harsh environmental conditions.

  • Direct Data Output – Serial interface allows seamless connection to navigation processors.

  • Precision Angular Rate Measurement – Provides accurate rotational data critical for navigation and orientation.

Applications:

  • Core sensor for inertial navigation systems (INS)

  • Angular rate measurement for marine vessels, land vehicles, and aerospace platforms

  • High-precision heading, roll, and pitch monitoring for ships and specialized vehicles

  • Integration with navigation and guidance systems that require accurate rotational data
