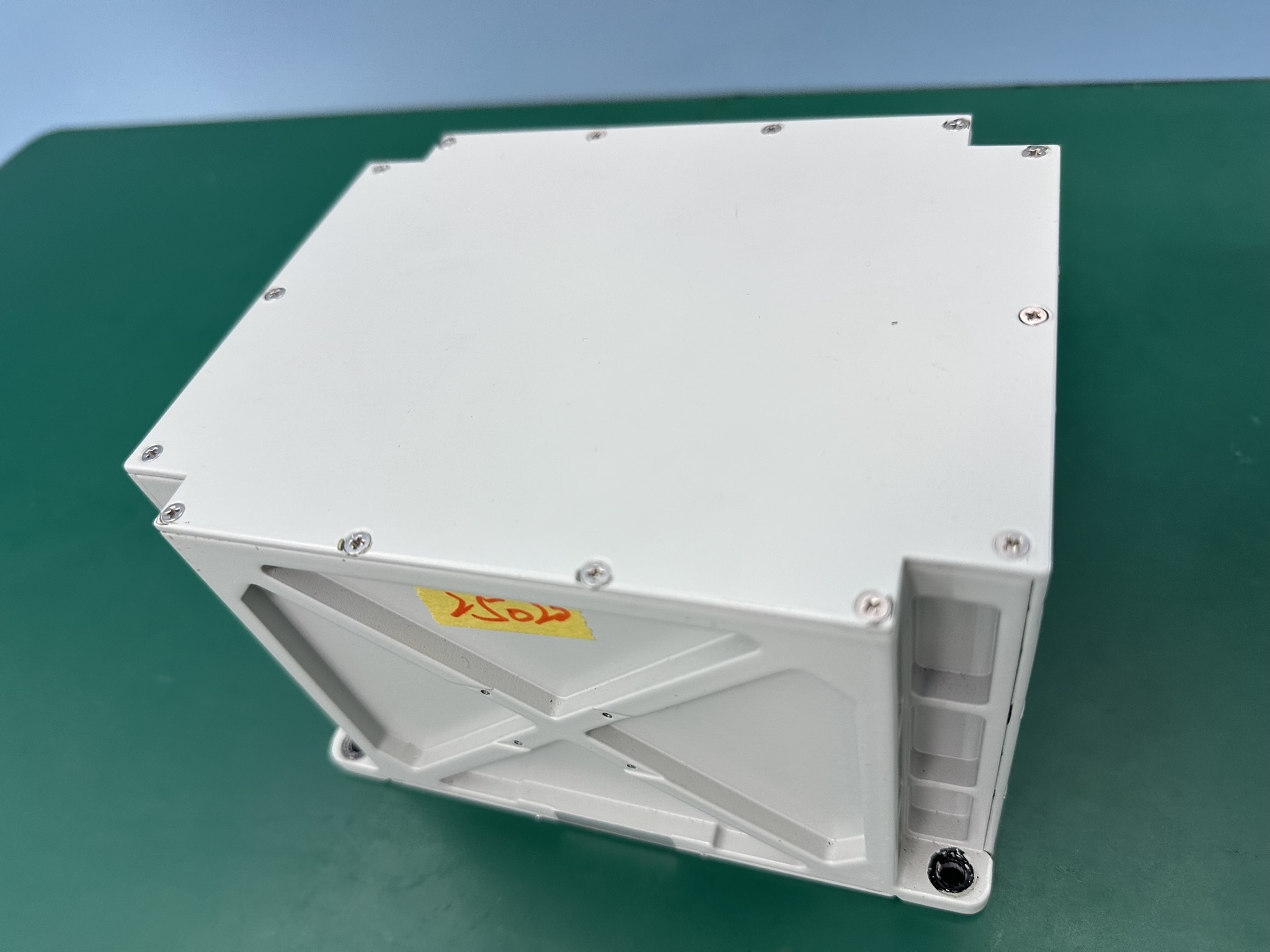

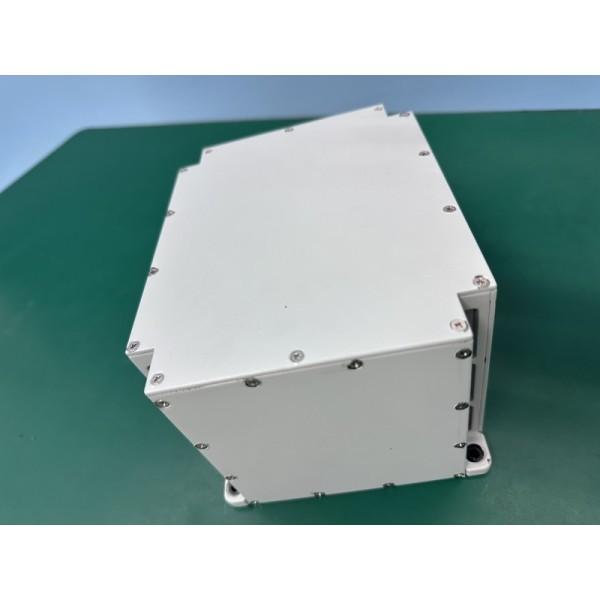

High Precision IMU Inertial Measurement Unit with ±20g Accelerometer, 400°/s Gyro, and -40℃～60℃ Operating Temperature
High Precision IMU Inertial Measurement Unit with ±20g Accelerometer, 400°/s Gyro, and -40℃～60℃ Operating Temperature
High Precision IMU Inertial Measurement Unit with ±20g Accelerometer, 400°/s Gyro, and -40℃～60℃ Operating Temperature
High Precision IMU Inertial Measurement Unit with ±20g Accelerometer, 400°/s Gyro, and -40℃～60℃ Operating Temperature
High Precision IMU Inertial Measurement Unit with ±20g Accelerometer, 400°/s Gyro, and -40℃～60℃ Operating Temperature
High Precision IMU Inertial Measurement Unit with ±20g Accelerometer, 400°/s Gyro, and -40℃～60℃ Operating Temperature
High Precision IMU Inertial Measurement Unit with ±20g Accelerometer, 400°/s Gyro, and -40℃～60℃ Operating Temperature
High Precision IMU Inertial Measurement Unit with ±20g Accelerometer, 400°/s Gyro, and -40℃～60℃ Operating Temperature
Specifications
Operating temperature :
-40℃～60℃
Accelerometer input range :
±20g
Place of Origin :
WUHAN
Brand Name :
CSSC
MOQ :
1
Payment Terms :
T/T
Gyro zero bias :
0.005°/h
Packaging Details :
30cm*30cm*28cm
Power supply :
18～36V(DC)
Gyro input range :
400°/s
Supply Ability :
100/1day
Delivery Time :
7days
Model Number :
DP-M-99UA
Certification :
GTD528731594
Dimensions :
130*130*110mm
Description
Good Quality Guidance INS Guidance System - IMU Measurement Unit
Deep pilot Model DP-M-99UA - High precision inertial measurement unit designed for industrial guidance systems.
Technical Specifications
Component Parameter Indicator Value
Gyro Zero Bias Bias stability (10s) 0.005°/h
Zero bias stability at variable temperature (100s) 0.02°/h
Scaling Factor Scale factor nonlinearity ≤20ppm
Other Indicators Random walk coefficient 0.0005°/½h
Range Indicators Input range 400°/s
Accelerometer Deviation Zero bias repeatability 20μg
Bias temperature sensitivity 20μg/℃
Scaling Factor Scale factor repeatability 20ppm
Scale factor temperature sensitivity 20ppm/℃
Accelerometer Range Indicators Input range ±20g
Environmental Performance
Operating Temperature: -40℃ to 60℃
Storage Temperature: -45℃ to 70℃
General Requirements
Power Supply: 18-36V (DC)
Stable Power Consumption: ≤16W
Mounting Hole Diameter: 4-Φ5.5mm
Dimensions: 130 × 130 × 110 mm
Weight: ≤2200g
