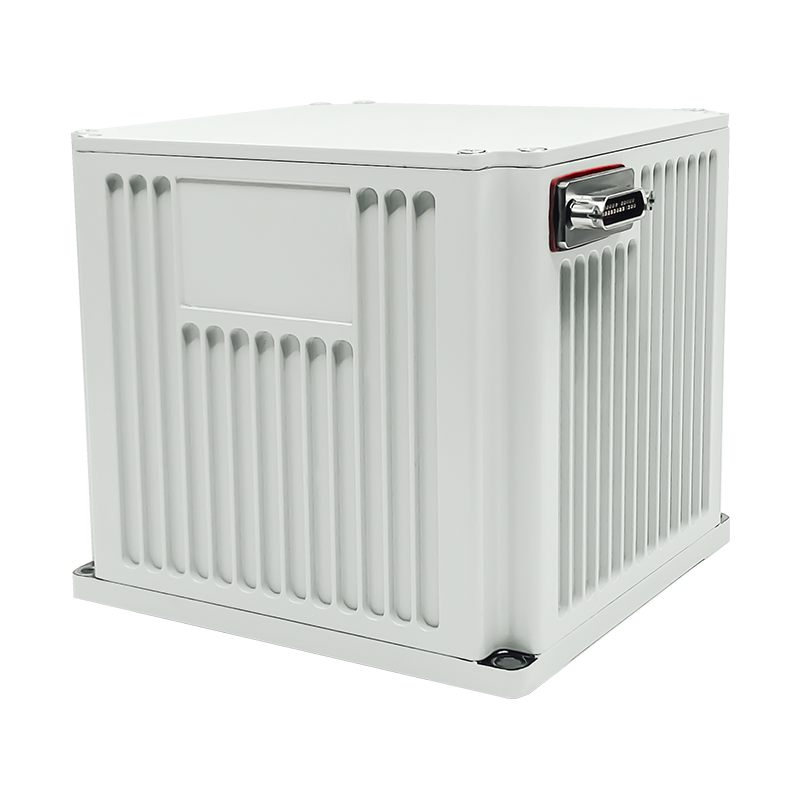

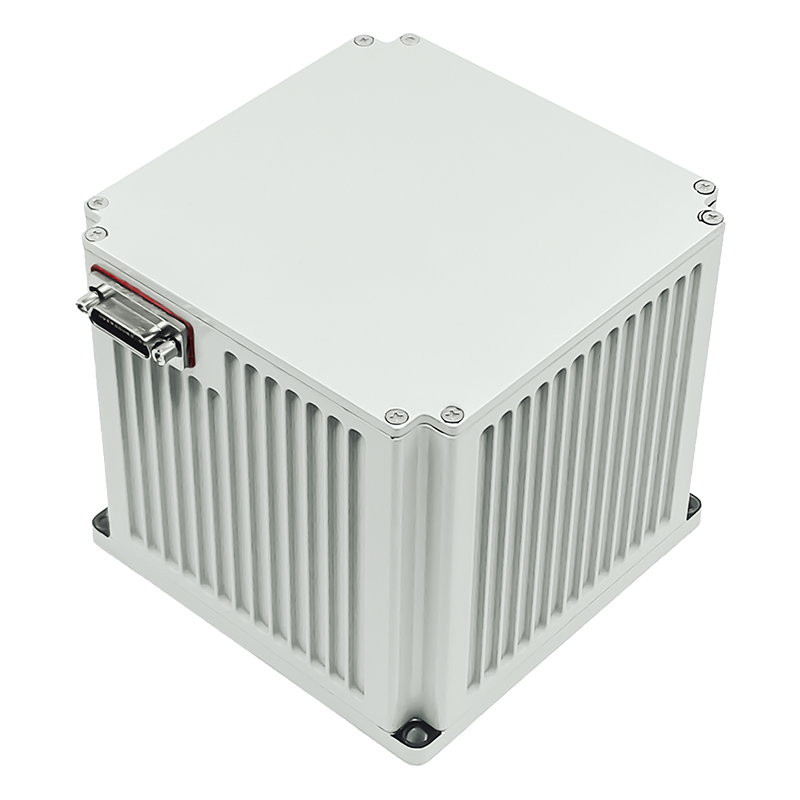

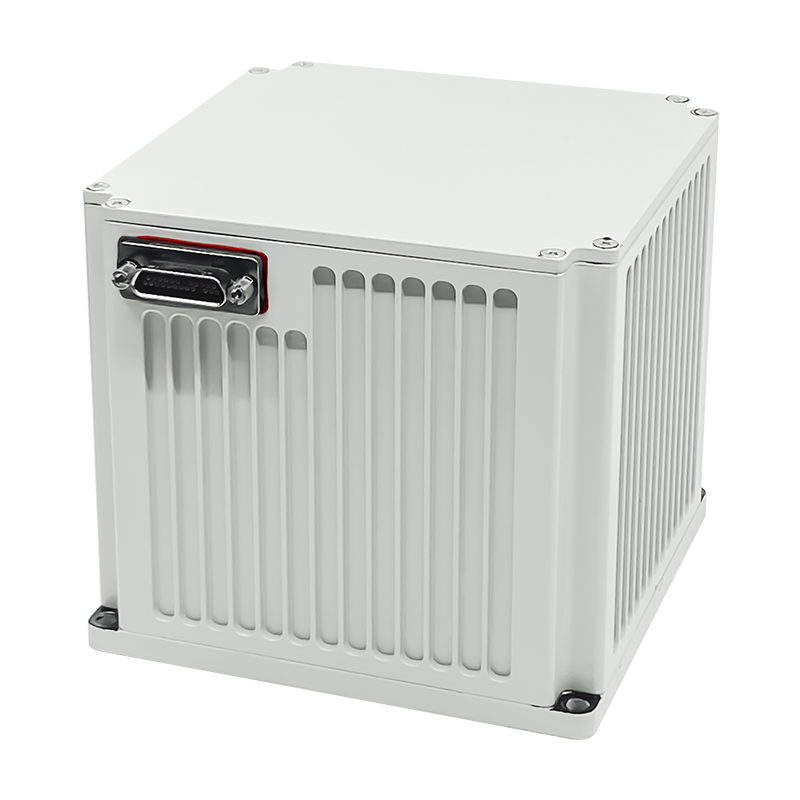

high precision fiber optic gyroscope inertial navigation system
high precision fiber optic gyroscope inertial navigation system
high precision fiber optic gyroscope inertial navigation system
high precision fiber optic gyroscope inertial navigation system
high precision fiber optic gyroscope inertial navigation system
high precision fiber optic gyroscope inertial navigation system
Specifications
Model Number :
DP-M-00500
Gyro Bias :
≤0.01°/hr
Brand Name :
CSSC
Accelerometer Bias :
≤30μg
Packaging Details :
40CM *40CM*50Cm
Payment Terms :
T/T
Supply Ability :
10PS/weeks
MOQ :
1
Delivery Time :
10work days
Speed Accuracy :
≤1.5m/s,RMS
Certification :
GTH524186586
Random walk :
≤0.005°/√hr
Place of Origin :
hubei
Position Accuracy :
≤2nm/1h,CEP
Price :
160000-260000
Power consumption :
＜15W
Description
Series Aerospace Inertial Navigation System(INS-A)
Deep pilot Model DP-M-A05
Accelerometer Months Bias Repeatability(1σ) ≤30μg
Months Scale Factor Accuracy(1σ) ≤30ppm
Gyro Bias Repeatability(1σ) ≤0.01°/hr
Scale Factor Accuracy(1σ) ≤30ppm
Random walk(1σ) ≤0.005°/√hr
Features Position Accuracy Pure inertia ≤2nm/1h,CEP
INS/GNSS combination better than satellite accuracy
Speed Accuracy Pure inertia ≤1.5m/s,RMS
INS/GNSS combination ≤0.2m/s,RMS
Angular Rate ≥±400°/sec
Angular Acceleration 100000°/sec2
Acceleration ＞25g
Angular Attitude Any Orientation
Input/output 3 RS422 full-duplex serial ports, 1 100M Ethernet port
Alignment time ＜5min
AHRS Applications Performance Heading Accuracy Pure inertia ≤0.1°sec(L),RMS
INS/GNSS combination ≤0.05°,RMS
Pitch & Roll Accuracy Pure inertia ≤0.03°,RMS
INS/GNSS combination ≤0.02°,RMS
Characteristics Power consumption ＜15W
Dimensions(Lmm*Wmm*Hmm) 130*130*110
Weight ＜2.2kg
Temperature -40℃~60℃
Shock 15g,Half-sine wave 11ms
Input Voltage DC24V(±25%)
cooling Conduction to mounting plate
Vibration 20~2000Hz,6.06g
MTBF ＞20000 hours
