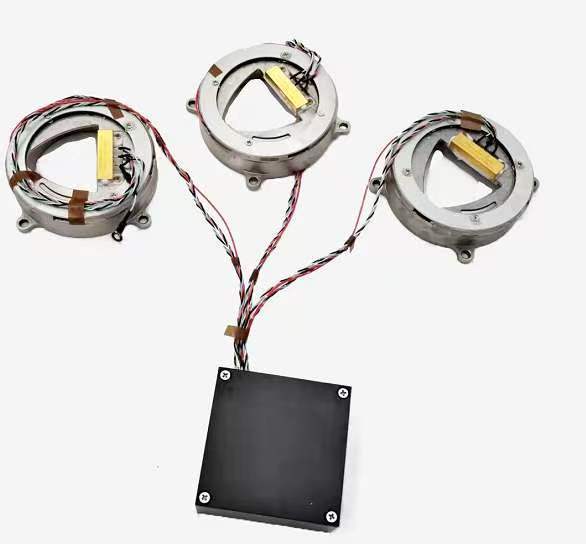

High Reliability Three Axis Gyroscope High Precision For INS And AHRS SIS-100HD
High Reliability Three Axis Gyroscope High Precision For INS And AHRS SIS-100HD
Specifications
Brand Name :
SI
Model Number :
SIS-100HD
MOQ :
1set
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Delivery Time :
6-8 weeks
Technology :
Fiber Optic Gyroscope
Applications :
Drones, Robotics, Gaming, Navigation Systems
Grade :
Industrial
Customized Support :
OEM, ODM
Supply voltage :
+5 V
Bias Stability :
≤0.005(°)/h
Description

The product is an inertial angular velocity sensor based on the Sagnac effect for measuring the rotational angular velocity of the carrier along the sensitive axis. The digital closed-loop detection circuit is used to extract the optical path difference of the counterclockwise propagating light caused by the external physical angular speed of the optical fiber coil. At the same time, the voltage signal of the optical path difference signal is converted to modulation and demodulate the signal, and the closed-loop feedback and control are realized to achieve the purpose of real-time angular velocity signal detection.

Main performance Parameters

order number

test item

unit

technical requirement

1

Turn-on time

s

3

2

Bias

(°)/h

≤0.3

3

Fixed temperature (constant temperature) bias stability (10s smoothing)

(°)/h

≤0.005

4

Variable temperature bias stability

(1℃ / min variable temperature, 100s smoothing)

(°)/h

≤0.005

5

Bias repeatability

(°)/h

≤0.0015

6

Biase magnetic sensitivity

(°)/h /Gs

≤0.003

7

Random walk coefficient

(º)/h1/2

≤0.0002

8

Scale factor nonlinearity

ppm

≤5

9

Scale-factor asymmetry

ppm

≤2

10

Scaling factor repeatability

ppm

≤5

11

Threshold

(°)/h

≤0.0015

12

Resolution

(°)/h

≤0.0015

13

Width

Hz

≥200

14

Operating temperature

℃

-45～+70

15

Storage temperature

℃

-55～+85

16

Dynamic range

(°)/s

±300

17

Supply voltage

V

+5

18

Steady state power consumption

W

≤4.5

19

Full temperature steady state power consumption

W

≤8

20

Instantaneous starting current

A

＜2
