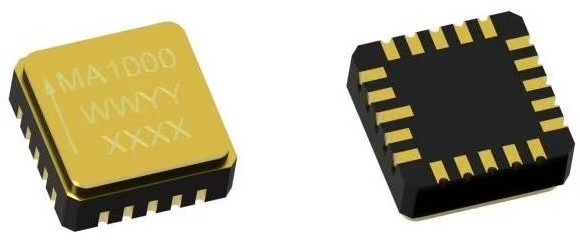

Low Noise MEMS Accelerometer Chip With Full Temperature Compensation SIMA1000
Low Noise MEMS Accelerometer Chip With Full Temperature Compensation SIMA1000
Specifications
Brand Name :
SI
Model Number :
SIMA1000
MOQ :
1set
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Delivery Time :
5-8 work days
Bias Stability :
≤100μg
Type :
digital MEMES accelerometer
Applications :
Consumer electronics, automotive, industrial, wearable devices
Axis :
1-axis / 2-axis / 3-axis
Featuring :
lower noise, higher stability, good repetitiveness
Description

MA1000 series digital MEMES accelerometer is a silicon-based MEMES inertial sensor with high performance, high reliability and domestic production, featuring lower noise, higher stability, good repetitiveness, low non-linearity, low temperature drift and vibration resistance. The MA1000 series MEMS accelerometers contain internal temperature sensors and support on-chip temperature compensation.

Main performance Parameters

test item

unit

MA1000-30A

MA1000-30B

MA1000-50A

Range

g

30

30

50

Noise

μg/√Hz

≤80

≤150

≤100

Bias stability (1σ@10s)

μg

≤100

≤500

≤150

Bias temperature sensitivity

μg/℃

≤50

≤200

≤150

Bias temperature hysteresis

mg

≤2

≤10

≤5

Scale factor

LSB/g

250000±2500

250000±2500

150000±1500

Scale factor non-linearity

%

≤0.3

≤0.5

≤1

Second-order nonlinear coefficient

μg/g2

≤100

≤200

≤100

Bandwidth (tunable)

Hz

100

100

100

Resolution

μg

≤25

≤50

≤50

Shock resistance

g

500

500

500

VRE (6.06grms)

g

≤0.15

≤0.3

≤0.1

Operating temperature2

mg/g2rms

-45~85

-45~85

-45~85

Start up time

s

≤1

≤1

≤1

Sample frequency (tunable, maximum value 2000)

Hz

500

500

500

Supply voltage

V

5±0.25

5±0.25

5±0.25

Current

mA

≤10

≤10

≤10

Communication interface

-

SPI/I2C

SPI/I2C

SPI/I2C
