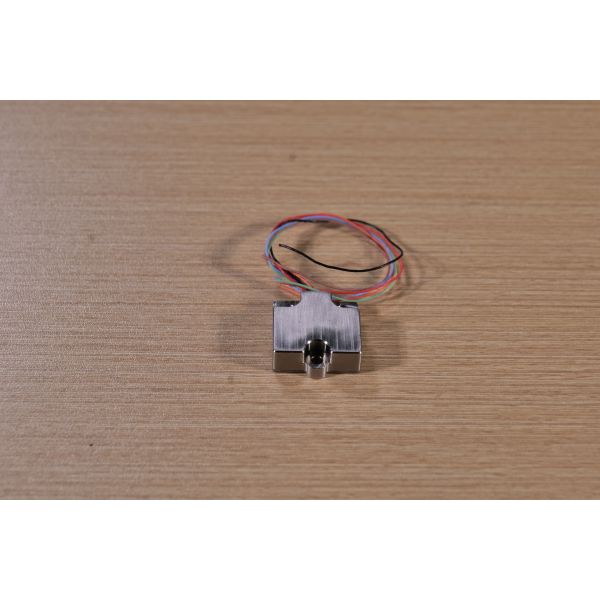

3 Axis MEMS Gyroscope For Robot Attitude Control / Turntable Servo Control SI-MG-3Q-FB1
3 Axis MEMS Gyroscope For Robot Attitude Control / Turntable Servo Control SI-MG-3Q-FB1
Specifications
Brand Name :
SI
Model Number :
SI-MG-3Q-FB1
MOQ :
1set
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Delivery Time :
5-8 work days
Bias stability :
≤10°/h
Power Supply Range :
5V DC
Measurement Axes :
3-axis gyroscope, 3-axis accelerometer, optional 3-axis magnetometer
Customized Support :
OEM, ODM
High Bandwidth :
≥110Hz
Description

The SI-MG-3Q-X5 three-axis micro-mechanical gyroscope is a small, high-performance, low-cost three-axis micro-mechanical gyroscope based on micro-electro-mechanical system (MEMS) technology.
It is mainly used to measure the angular velocity of a sensitive system carrier on three orthogonal axes and outputs a digital signal proportional to the angular velocity of the carrier.
The SI-MG-3Q-FB1 series three-axis micro-mechanical gyroscope has built-in algorithms and compensation software for full temperature compensation, installation misalignment angle compensation, and nonlinear compensation, ensuring stable and excellent performance of the product under static and dynamic conditions, and ensuring that it can still provide users with excellent and reliable measurement data under harsh environmental conditions.

Main performance Parameters

Indicator Type

Specification

Unit
Performance indicator

Measurement range

±300

°/s

Bias

0.05

°/s

Bias Stability(10s smoothing,1σ)

≤ 10

°/h

Bias Repeatability(1σ)

≤ 10

°/h

Random walk

≤0.25

°/√h

Scale Factor Nonlinearity

≤100

ppm

Resolution

≤0.005

°/s

Bandwidth

≥110

Hz

Electrical interface

Operating voltage

5±0.2

V

Working current

≤0.1

A

Operating temperature

-40~70

℃

Storage temperature

-55~85

℃

Vibration

6.06g,20Hz-2000Hz

-

Shock

100g,10ms,Half Sine

-

Dimensions

22.4*22.4*8

mm

Weight

≤18g(No cables included)

g

Data communication frequency

1000

Hz

Communication interface

RS422

-
