High Resolution Mini 2-Axis UAV EO Gimbal Camera, High Precision, Multi-Spectral Light Sources for Aerial Surveillance & Reconnaissance
High Resolution Mini 2-Axis UAV EO Gimbal Camera, High Precision, Multi-Spectral Light Sources for Aerial Surveillance & Reconnaissance
Specifications
MOQ :
1set
Application :
Object detection, counting, positioning in automation systems
Delivery Time :
6-8 weeks
TI camera :
640X512,25mm focal length, 12um
Video interface :
ETH
Brand Name :
SI
Power supply :
12~32V
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Controlinterface :
RS232,RS422,ETH(UDP)
Product name :
Photoelectric Pod
Model Number :
SI-S070TA
Description

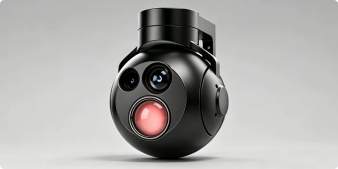

The micro 2-axis gimbal camera has micro size, ultra-light welght (within 500gi and lowimage delay, integrating multi-optical payloads (star-level EO camera, high-resolutlon thermalimaging camera, laser range finder), 2-axis servo-stabilized platfacms and Al Image-processingunits, with servo-stabilization, automatic target identification, automatie Image tracking, hybridr0om and otheF funetions, suitable for all kinds of micro- and small-sized UAV, roving bombs and so on.

Main performance Parameters

test item unit
Long-focus EO camera 2560x1440,4M pixel
Long-focus EO camera FOV/Focal length 26.1°x14.9°,16mm
Short-focus EO camera 2560X1440,4M pixel
Short-focus EO camera FOV/ Focal length 79.7°x50.3°,4.45mm
TI camera 640X512,25mm focal length, 12um
TI camera FOV 17.5°x13.1°
Controlinterface RS232,RS422,ETH(UDP)
Video interface ETH
Local storage ≤128G Micro SD card
Power supply 12~32V
Weight 252g
Size 70mmx71.5mmx95.3mm
Features Hybrid zoom, Work day and night, Al recognition,Automatic target tracking, MAVLink
