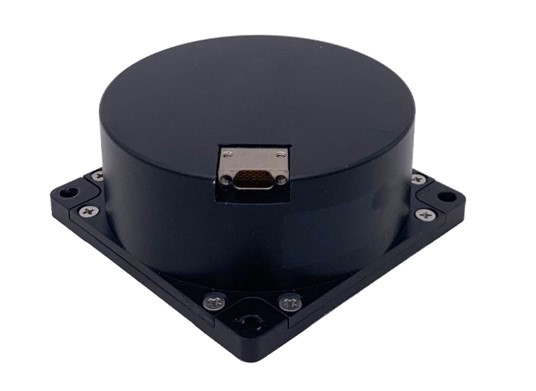

Precision Single Axis FOG Gyroscope For Positioning And Orientation Systems SIF-70
Precision Single Axis FOG Gyroscope For Positioning And Orientation Systems SIF-70
Specifications
Brand Name :
SI
Model Number :
SIF-70
MOQ :
1set
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Delivery Time :
6-8 weeks
Productname :
Single Axis Gyroscope
Customized Support :
OEM, ODM
Applications :
Aerospace, Defense, Navigation, Robotics
Warranty :
1 year
Technology :
Fiber Optic Gyroscope
Bias Stability :
≤0.1(°)/h
Description

FG-70/70C is a fully solid-state, digital closed-loop, tactical-grade single-axis fiber optic gyroscope. Based on the SAGNAC principle, it consists of an SLD light source, fiber coupler, photodetector, integrated optical phase modulator, fiber sensing coil, circuit, and structure.
The C model is an upgraded version of the FG-70, featuring high stability and reliability while delivering enhanced performance indicators. The H model adopts higher-grade components

and stricter manufacturing and testing processes, achieving navigation-grade gyroscope performance. They are widely used in the fields of navigation, guidance, and control.

Main performance Parameters

order number

test item

unit

technical requirement

1

Dimension

mm

70×70×30

2

Turn-on time

s

3

3

Bias

(°)/h

≤0.5

4

Fixed temperature (constant temperature) bias stability (10s smoothing)

(°)/h

≤0.1

5

Variable temperature bias stability

(1℃ / min variable temperature, 100s smoothing)

(°)/h

≤0.2

6

Bias repeatability

(°)/h

≤0.05

7

Biase magnetic sensitivity

(°)/h /Gs

≤0.05

8

Random walk coefficient

(º)/h1/2

≤0.01

9

Scale factor nonlinearity

ppm

≤10

10

Scale-factor asymmetry

ppm

≤5

11

Scaling factor repeatability

ppm

≤10

12

Threshold

(°)/h

≤0.05

13

Resolution

(°)/h

≤0.05

14

Width

Hz

≥500

15

Operating temperature

℃

-45～+70

16

Storage temperature

℃

-55～+85

17

Dynamic range

(°)/s

±500

18

Supply voltage

V

+5

19

Steady state power consumption

W

≤2.5

20

Full temperature steady state power consumption

W

≤4

21

Instantaneous starting current

A

＜1.5
