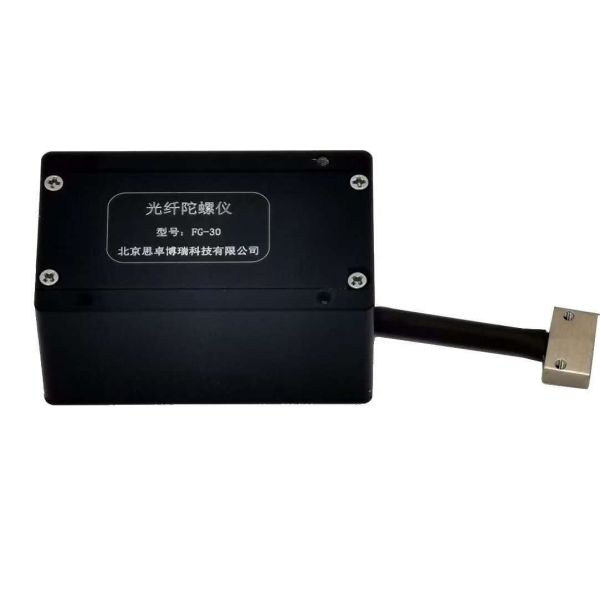

Single Axis Indsutrial Grade FOG Gyro Fiber Optic Gyroscope Lightweight SIF-30
Single Axis Indsutrial Grade FOG Gyro Fiber Optic Gyroscope Lightweight SIF-30
Specifications
Brand Name :
SI
Model Number :
SIF-30
MOQ :
1set
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Delivery Time :
6-8 weeks
Productname :
Single Axis Gyroscope
Grade :
Industrial
Technology :
Fiber Optic Gyroscope
Customized Support :
OEM, ODM
Measurementaxis :
Single axis
Warranty :
1 year
Bias Stability :
≤0.05(°)/h
Description

The product is an inertial angular velocity sensor based on the Sagnac effect for measuring the rotational angular velocity of the carrier along the sensitive axis. The digital closed-loop detection circuit is used to extract the optical path difference of the counterclockwise propagating light caused by the external physical angular speed of the optical fiber coil. At the same time, the voltage signal of the optical path difference signal is converted to modulation and demodulate the signal, and the closed-loop feedback and control are realized to achieve the purpose of real-time angular velocity signal detection.

Main performance Parameters

order number

test item

unit

technical requirement

1

Dimension

mm

60×35×31

2

Turn-on time

s

3

3

Bias

(°)/h

≤1

4

Fixed temperature (constant temperature) bias stability (10s smoothing)

(°)/h

≤0.05

5

Variable temperature bias stability

(1℃ / min variable temperature, 100s smoothing)

(°)/h

≤1

6

Bias repeatability

(°)/h

≤0.3

7

Random walk coefficient

(º)/h1/2

≤0.02

8

Scale factor nonlinearity

ppm

≤20

9

Scale-factor asymmetry

ppm

≤10

10

Scaling factor repeatability

ppm

≤20

11

Threshold

(°)/h

≤0.5

12

Resolution

(°)/h

≤0.5

13

Width

Hz

≥500

14

Operating temperature

℃

-45～+70

15

Storage temperature

℃

-55～+85

16

Dynamic range

(°)/s

±500

17

Supply voltage

V

+5

18

Steady state power consumption

W

≤2.5

19

Full temperature steady state power consumption

W

≤4

20

Instantaneous starting current

A

＜1.5
