E&H Ultrasonic Measurement Time Of Flight Prosonic FMU41-ARB2A2
E&H Ultrasonic Measurement Time Of Flight Prosonic FMU41-ARB2A2
E&H Ultrasonic Measurement Time Of Flight Prosonic FMU41-ARB2A2
E&H Ultrasonic Measurement Time Of Flight Prosonic FMU41-ARB2A2
E&H Ultrasonic Measurement Time Of Flight Prosonic FMU41-ARB2A2
E&H Ultrasonic Measurement Time Of Flight Prosonic FMU41-ARB2A2
E&H Ultrasonic Measurement Time Of Flight Prosonic FMU41-ARB2A2
E&H Ultrasonic Measurement Time Of Flight Prosonic FMU41-ARB2A2
E&H Ultrasonic Measurement Time Of Flight Prosonic FMU41-ARB2A2
E&H Ultrasonic Measurement Time Of Flight Prosonic FMU41-ARB2A2
Specifications
Brand Name :
E+H
Model Number :
FMU41-ARB2A2
Certification :
ROHS
Place of Origin :
GERMANY
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
500+pcs+on stock
Delivery Time :
Negotiable
Packaging Details :
CARTON
Accuracy :
+/- 2 mm or +/- 0,2 % of set measuring range
Process temperature :
-40 °C ... 80 °C (-40 °F ... 176 °F)
Main wetted parts :
PVDF
Measuring principle :
Ultrasonic
Max. measurement error :
Low accuracy
Outputs :
4...20mA(Hart),PA,FF
Inputs :
2-wire 16-36V DC 4-wire 16-36V DC 90-253V AC 50/60Hz
Degree of protection :
IP68
Description
E&H Ultrasonic Measurement Time Of Flight Prosonic FMU41-ARB2A2
E&H Ultrasonic Measurement Time Of Flight Prosonic FMU41-ARB2A2 E&H Ultrasonic Measurement Time Of Flight Prosonic FMU41-ARB2A2 E&H Ultrasonic Measurement Time Of Flight Prosonic FMU41-ARB2A2
Product Details

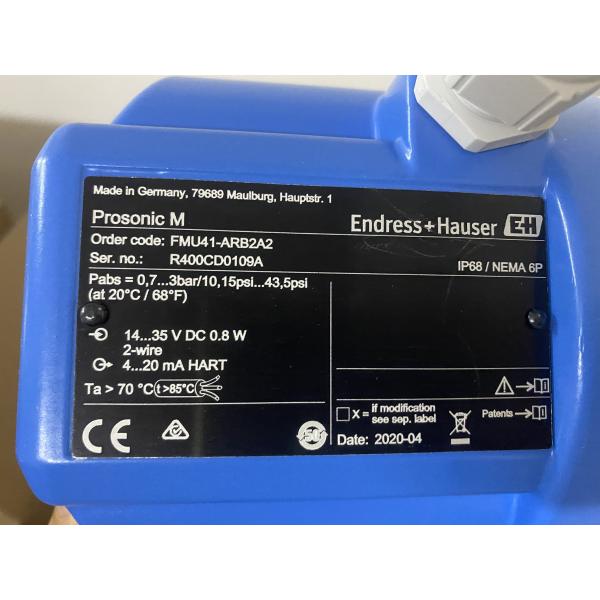

Manufacturer: Endress+Hauser

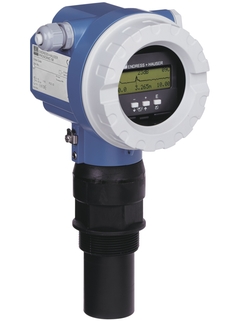

Product Name: Ultrasonic measurement Time-of-Flight Prosonic FMU41
Product No: FMU41-ARB2A2
A-Approval: Non-hazardous area
R-Process Connection: Thread ISO228 G2, PVDF
B-Power Supply; Output: 2-wire; 4-20mA HART
2-Operation: 4-line display VU331, envelope curve display on site
A-Housing: F12 Alu, coated, IP68 NEMA6P
2-Cable Entry: Gland M20 (EEx d > thread M20)
Weight: approx. 2.6 kg (5.73 lbs)
Shipping Weight: 3.6 kg
Product Description
The Prosonic FMU41 sensor is designed for non-contact level measurement in fluids, pastes, coarse bulk material and flow measurement in open channels or at weirs. The two-wire or four-wire compact transmitter can be used in applications with storage tanks, agitators, on stockpiles and conveyor belts. The envelope curve can be shown on the on-site display for simple diagnosis. Linearization function (up to 32 points) for conversion of the measured value into any unit of length, volume or flow rate.
Technical Specifications
Accuracy: +/- 2 mm or +/- 0.2% of set measuring range
Process Temperature: -40°C to 80°C (-40°F to 176°F)
Process Pressure: 0.7 bar to 3 bar abs (10 psi to 44 psi)
Main Wetted Parts: PVDF
Common Models
FMU40-ANG2A2 | FMU41-ARB2A2 FMU860-R1A1A1 | FDU81-RG2A
FMU861-R1B1A1 | FDU80-RG2A FMU862-R1A1A1 | FMU862-R1A1A1
FDU81-RG1A | FMU90-R11CA131AA1A FDU81-RG2A | FMU231A-AA22
FDU81-RG3A | FMU862-R1E1A1 FDU81-RG4A | FDU80-RG8A
FMU230E-AA32 | FMU90-R11CA131AA1A FMU231E-AA32 | FDU92-RG3A
FMU40-ARB2A2 | FTU231E-AA22 FMU40-ANB1A2 | FMU860-R1A2A1
Our Advantages
  • Best possible prices and delivery time
  • Long time experience in the field
  • Well trained staff
  • Own warehouse facilities
  • Best relationships with branch office of manufacture
  • Flexible and individual service for you
  • Cheap and safe forwarder for shipments (air)
Frequently Asked Questions
Q: Does your goods are new and original?
A: Yes, they are new and original.
Q: How long warranty?
A: One-year warranty.
Q: Does any certificates can be provided?
A: Yes, it depends on what product you request, please check details with our sales.
Q: Varied payment methods.
A: We adopt T/T, alipay and paypal and Currency in EURO,USD,RMB.
Q: SHIPPING:
A: We can shipping all over the world via DHL,UPS,Fedex,TNT and IPS,PDE,BRE,KARAPOST etc.
Our Product Range
Transmitter, Safety barriers, Flow meters, Probe, Sensor, Transducer, Valves, Analysis meter, Positioner, Actuator, etc.
