Thermal Case Growth Measurements in Large
Turbines
An important position measurement in Turbine Supervisory
Instrumentation (TSI) is case expansion. Case expansion
(sometimes referred to as shell expansion) is the thermal
growth of the machine case as it expands during machine
startup and on-line operations. The case expansion
transducer system is typically mounted on the foundation at
the opposite end from where the turbine casing is attached
to the foundation and provides information about the growth
of the machine case relative to the foundation.
Case expansion is a parameter that you should use a dual
transducer arrangement to measure. This arrangement
provides information about the position of the sliding feet on
the machine case. A condition that obstructs or jams one
foot could distort the case and damage the machine. The
dual case expansion transducer configuration in conjunction
with the 3300 or 3500 monitors provides an alarm for this
condition. The high temperature dual case expansion
transducer configuration is compatible only with the 3500/45
Position Monitor.
Case expansion measurements also enable you to
determine whether machine conditions are exceeding
expected temperature growth differentials. This is primarily a
startup parameter that determines whether the machine
casing and rotor grow thermally at nearly the same rate.
Different rates of thermal growth can cause the rotating and
stationary parts of the machine to rub.

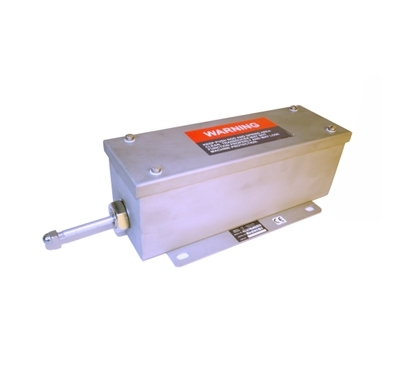

The case expansion transducer assembly consists of a linear
variable differential transformer (LVDT), which is housed in a
weatherproof, protective enclosure.

Specifications
24765 dc LVDT Assembly
Electrical
Input Power +24 Vdc, 30 mA minimum
Scale Factor
24765-01 0.346 V/mm (8.79 V/in).
24765-02 0.404 V/mm (10.25 V/in).
24765-03 0.143 V/mm (3.63 V/in).
Linear Range
24765-01 ± 12.7 mm (±0.5 in).
24765-02 ± 25.4 mm (±1.00 in).
24765-03 ± 51 mm (±2.00 in).-3 dB Frequency
24765-01 20 Hz
24765-02 15 Hz
24765-03 10 Hz
Output
Impedance
7 kΩ. nominal, all models
Minimum Load Resistance
24765-01 50 kΩ
24765-02 100 kΩ
24765-03 200 kΩ

135613 dc LVDT
High Temperature Case Expansion
Transducer System
Electrical
Input Power +13.5 to +26 Vdc
unregulated, 30 mA
minimum
Voltage +1 to +6 Vdc, all models
Output Noise <10 mV

Scale Factor
135613-01 and -11 0.20 V/mm (5.0 V/in)
135613-02 and -12 0.10 V/mm (2.5 V/in)
135613-03 and -13 0.049 V/mm (1.25 V/in)
Linear Range
135613-01 and -11 25.4 mm (1.00 in)
135613-02 and -12 50.8 mm (2.00 in)
135613-03 and -13 101.6 mm (4.00 in)-3 dB Frequency
135613-01 and -11 200 Hz (typical)
135613-02 and -12 200 Hz (typical)
135613-03 and -13 200 Hz (typical)
Stability 0.125% full-scale
Non-Linearity Less than 0.25% full-scale
Temperature
Coefficient
0.05%/°C (0.028%/°F)
maximum

Dimensions
Body Length
135613-01 and -11 171 mm (6.75 in)
135613-02 and -12 209 mm (8.24 in)
135613-03 and -13 297.4 mm (11.71 in)
Body Diameter 19.2 mm (0.75 in), all
models
Body End to Null Center
135613-01 and -11 65.4 mm (2.57 in)
135613-02 and -12 84.3 mm (3.32 in)
135613-03 and -13 129 mm (5.07 in)
Core Length
135613-01 and -11 87.6 mm (3.45 in)
135613-02 and -12 87.6 mm (3.45 in)
135613-03 and -13 135 mm (5.30 in)
Core Diameter 4.8 mm (0.19 in), all models
