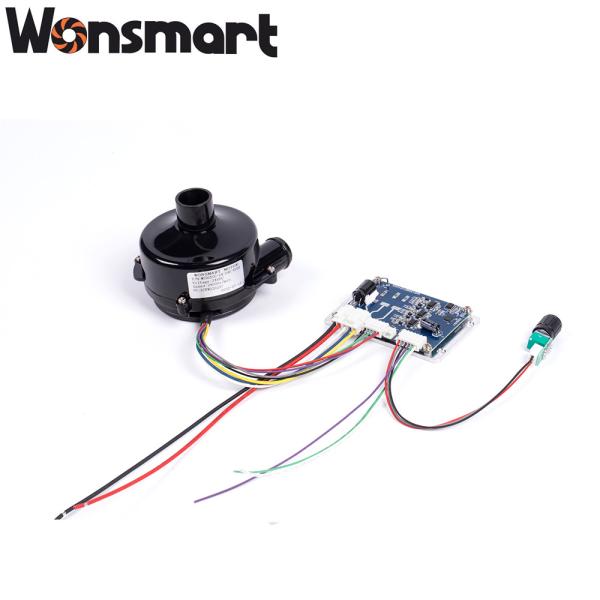

24V High efficiency with CE&ETL Certification WONSMART BLDC Blower

24V High efficiency with CE&ETL Certification WONSMART BLDC Blower

Centrifugal DC Brushless Blower FREE Standing High Speed& High Pressure 24V High efficiency with CE&ETL Certification

Blower features

Drawing:

Blower Performance

WS9250C-24-240-X200 blower can reach maximum 57m3/h airflow at 0 kpa pressure and maximum 8.5kpa static pressure.It has maximum output air power when this blower run at 4.5kPa resistance if we set 100% PWM, It has maximum efficiency when this blower run at 5.5kPa resistance if we set 100% PWM.Other load point performance refer to below P-Q curve:

DC brushless blower advantage:

(1)WS9250-24-240-X200 blower is with brushless motors and NMB ball bearings inside which indicates very long life time; MTTF of this blower can reach more than 20,000hours at 20 degree C environmental temperature

(2)This blower needs no maintence

(3)This blower drived by a brushless motor controller have many different control functions such as speed regulation,speed pulse output,fast acceleration, brake etc.it can be controlled by intelligent machine and equipment easily

(4) Drived by brushless motor driver the blower will have over current, under/over voltage,stall protections.

Applications:

This blower can be widely used onto air pollution detector,air bed,air cushion machine and ventilators.

How to use the blower correctly:

This blower can run at CCW direction only.Reverse the impeller running direction can not change the air direction.

Filter onto the inlet to protect the blower from dust and water.

Keep the environmental temperature as low as possible to make the blower life time longer.

FAQ:

Q: Can we use this centrifugal air blower to suct water?
A:This blower fan can not be used to suck water. If you need to suck water, you can ask us to choose proper item for this special working condition.

Q: Can we use this centrifugal air blower to suck dust directly?

A: This blower fan can not be used to suck dust directly.If you need to suck dust, you can ask us to choose proper item for this special working condition.

Q: What can do if the working condition is dirty?
A: A filter is strongly recommended to assemble onto the the inlet of the blower fan
