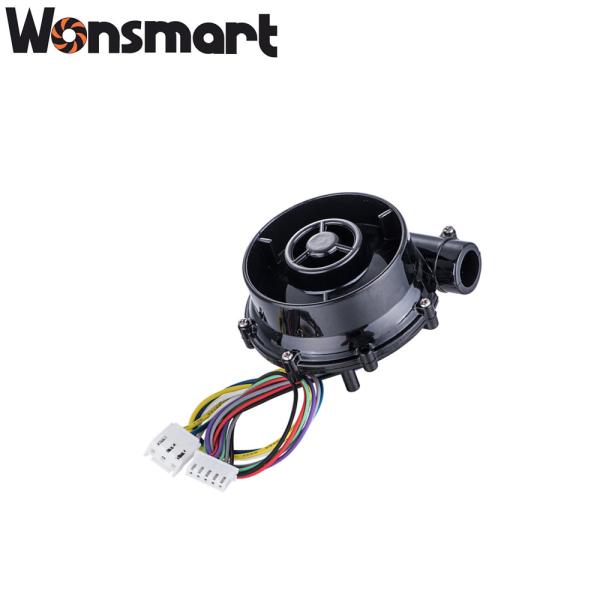

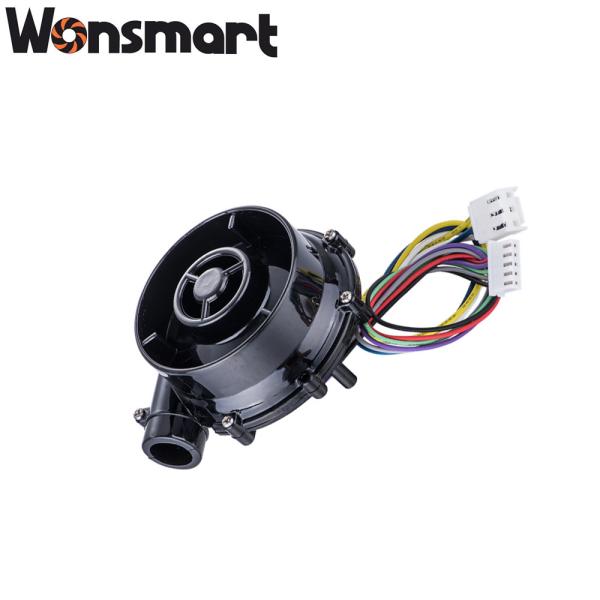

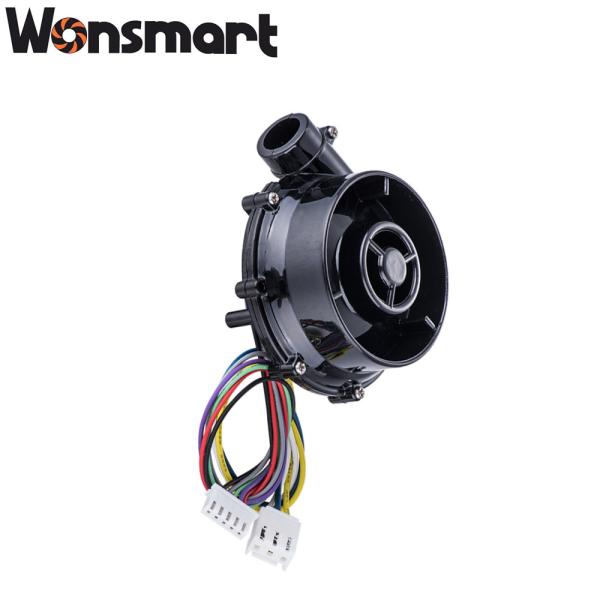

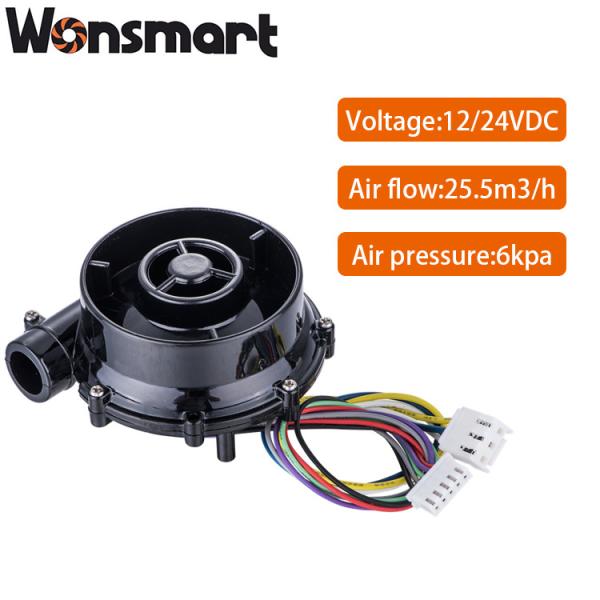

24VDC CPAP Blower Mini Centrifugal Air Blower Fan 60mm Diameter

60mm diameter 7kpa pressure 24 Vdc mini centrifugal air blower fan blower for inflatables.

Suitable for air cushion machine/CPAP machine/fuel cell/medical equipment.

Blower features:

Drawing:

Blower Performance:

WS7040-24-V200 blower can reach maximum 25.5m3/h airflow at 0 kpa pressure and maximum 6.8kpa static pressure. It has maximum output air power when this blower run at 3kPa resistance if we set 100% PWM. It has maximum efficiency when this blower run at 5.5kPa resistance if we set 100% PWM. Other load point performance refer to below P-Q curve:

DC brushless blower advantage:

(1)WS7040-24-V200 blower is with brushless motors and NMB ball bearings inside which indicates very long life time; MTTF of this blower can reach more than 20,000 hours at 20 degree C environmental temperature.

(2)This blower needs no maintence

(3)This blower drived by a brushless motor controller have many different control functions such as speed regulation,speed pulse output,fast acceleration, brake etc.it can be controlled by intelligent machine and equipment easily.

(4) Drived by brushless motor driver the blower will have over current, under/over voltage,stall protections.

Applications:

How to use the blower correctly:

This blower can run at CCW direction only.Reverse the impeller running direction can not change the air direction.

Filter onto the inlet to protect the blower from dust and water.

Keep the environmental temperature as low as possible to make the blower lifetime longer.

FAQ:

Q: May I use this blower for Medical device?

A: Yes, this is one blower of our company which can be used on Cpap and ventilator.

Q: What is the maxmum air pressure?

A: As it shown in the drawing, the maxmum air pressure is 6 Kpa.

Q:Are you a trading company or a manufacturer?

A: We are a manufacturer.

Q:When can I get the quotation?

A: We usually quote within 24 hours after we get your inquiry.lf you are urgent to get the price, please send the messageon trade management or call us directly.

Q:Can you make a motor with custom specifications?

A: Yes, actually that is what we do most of the time.

Q:What is the MOQ ?

A:1~10 pcs for sample order, 10-50 pcs for trial order,100pcs for bulk order.
