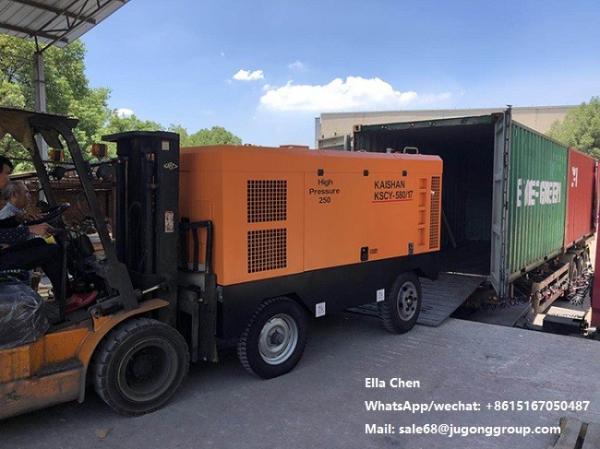

Portable Screw Air Compressor For Jack Hammer Digging Construction
Portable Screw Air Compressor For Jack Hammer Digging Construction
Portable Screw Air Compressor For Jack Hammer Digging Construction
Portable Screw Air Compressor For Jack Hammer Digging Construction
Portable Screw Air Compressor For Jack Hammer Digging Construction
Portable Screw Air Compressor For Jack Hammer Digging Construction
Portable Screw Air Compressor For Jack Hammer Digging Construction
Portable Screw Air Compressor For Jack Hammer Digging Construction
Portable Screw Air Compressor For Jack Hammer Digging Construction
Portable Screw Air Compressor For Jack Hammer Digging Construction
Portable Screw Air Compressor For Jack Hammer Digging Construction
Portable Screw Air Compressor For Jack Hammer Digging Construction
Specifications
Brand Name :
kaishan
Model Number :
KSCY-550/14.5
Certification :
CE
Place of Origin :
China zhejiang
MOQ :
1
Price :
$14500-20000/pc
Payment Terms :
L/C, D/A, D/P, T/T, paypal
Supply Ability :
50 sets per month
Delivery Time :
7days after received the payment
Packaging Details :
wooden package/as customer requirements
Type :
good portable air compressor
Power Source :
Diesel engine
Lubrication Style :
Oil less
Warranty :
1 years
Delivery time :
7 working days
Capacity :
550CFM air compressor
Working pressure :
1.45 Mpa /14.5 bar air compressor
Condition :
New
After-sales service provided :
Engineers available to service machinery overseas,Overseas service center available
Description

Digging Construction Mining Air Compressor Diesel Portable Screw Air Compressor For Jack Hammer

Characteristic of Double Working Condition air compressor:

1. Low operating sound and less vibration design.Easy serviceability.

2. Lower fuel consumption to realize far distance outdoor usage;Full protection system,energy saving.

3. High efficient Airend:
Large diameter rotor, airend connect with diesel engine through coupling and no reduction gear inside, more reliability, the rotate speed is same with the diesel engine's, more longer lifespan.

4. Diesel Engine of Famous Brand:
Select the diesel engine of COMMINS and YUCHAI brand, satisfy the emission
requirement of Europe, low oil consumption, after sale service system all over China.

5. Good adaptability:
The Portable Air Compressor automatically control the air delivery of diesel engine by matching the demand of air consumption, which equals to frequency conversion control in motor power screw air compressor.

Specifications

Diesel portable screw air compressors are widely used in highways, railways, mines, water conservancy, and shipbuilding, urban construction, energy, military and other industries.
We are the leader in diesel portable screw compressor, and is the only one to produce two stage compressed high-pressure screw air end enterprise. Our diesel screw air compressor is highly efficient and reliable,power range of 37 to 300kW, capacity up tp 30m3/min, working pressure up to 2.2 MPa

Product Features

1. More beautiful apprance, superior anti-corrosion performance.


2. Exhaust pipe is set in the trail position, more environmental-friendly.


3. Part position and road system structure is more reasonable.

4. Import solenoid valve (advance configuration).

5. Imported oil filter and customized oil and gas separator filter (Germany Mann).

6. Higher Configuration of pipeline connection details parts.

Specification
Model
KSCY-550/14.5
Capacity(CFM)
550
Working Pressure(Bar)
14.5
Weight(kg)
3200
Dimension(mm )
3600*1800*2450mm
Matched Power
Cummins diesel engine 180HP
Bore* Stroke*Cylinders
114-135*6
Exhaust V olume (L)
8.3L
Rated Speed (r/min)
1800
Rated Power (HP)
180
Diesel oil capacity (L)
21.9
Fuel tank capacity (L)
350
Electrical system voltage (V)
24
Airend
SKY-170L-16A
Compression stages
1
Compressor oil capacity (L)
48
Remark
Four-wheel
Supply valve specifications*Quantity
G2*1,G3/4*1
