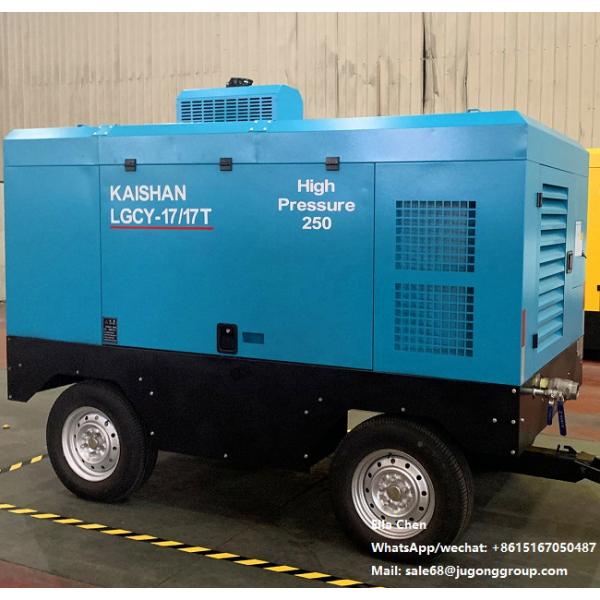

Heavy Duty 17m3/Min 17bar Diesel Engine Screw Air Compressor Concrete Breaker
Heavy Duty 17m3/Min 17bar Diesel Engine Screw Air Compressor Concrete Breaker
Heavy Duty 17m3/Min 17bar Diesel Engine Screw Air Compressor Concrete Breaker
Heavy Duty 17m3/Min 17bar Diesel Engine Screw Air Compressor Concrete Breaker
Heavy Duty 17m3/Min 17bar Diesel Engine Screw Air Compressor Concrete Breaker
Heavy Duty 17m3/Min 17bar Diesel Engine Screw Air Compressor Concrete Breaker
Heavy Duty 17m3/Min 17bar Diesel Engine Screw Air Compressor Concrete Breaker
Heavy Duty 17m3/Min 17bar Diesel Engine Screw Air Compressor Concrete Breaker
Specifications
Brand Name :
kaishan
Model Number :
LGCY-17/17T
Certification :
CE
Place of Origin :
China zhejiang
MOQ :
1 set
Price :
$30000-40000/pc
Payment Terms :
L/C, D/A, D/P, T/T, paypal
Supply Ability :
500 sets per month
Delivery Time :
3-15 days after received the payment
Packaging Details :
wooden package/as customer requirements
Capacity :
17m3/min (595CFM)
Working pressure :
1.7 Mpa /17 bar
Application :
Pneumatic machine,Construct,Mine
Warranty :
1 years
Delivery time :
3-15 working days
Lubrication style :
Lubricated,Oil-less
Power source :
Diesel engine
Configuration :
portable&stationary
Description

Kaishan LGCY Two-stage Compressed Diesel Movable Screw Air Compressor

At present, Kaishan screw air compressor product energy efficiency level has been in the world's leading level. In addition to advanced profile technology, we also have global invention patents to ensure lower fuel consumption. If you compare our products with similar foreign products, you will soon find that the fuel savings of our products are very obvious. The advancement of technology is self-evident, and the reliability has already been proved by hundreds of units in service.

Design Characteristics of Screw Rotor Profile:

1. It fully realizes "Convex-Convex" engagement to assist in the formation of hydrodynamic lubrication film, to reduce horizontal leakage passing the contact zone, and to improve efficiency of the compressor; improve rotor processing and testing property.

2. It adopts the design thought of "large rotor, large bearing and low speed method", thus its revolving speed is 30-50% lower than that of other brands to reduce noise, vibration, and exhaust temperature, improve rotor rigidity, increase service life, and reduce sensibility to sundries and oil carbide.

3. Its power range is 4~355KW, where 18.5~250KW applies to the compressor without direct-coupled gearbox, 200KW and 250KW apply to the compressor with Level 4 direct-coupled motor and the speed is as low as 1480 rmp.

4. It fully conforms to and exceeds requirements in GB19153-2003 Limited Values of Energy Efficiency and Evaluating Values of Energy Conservation of Capacity Air Compressors.

Model
LGCY-17/17
Engine Brand
Yuchai / Cummins
Engine Power
220HP
Air capacity
580 CFM
Working pressure
17 bar
Dimensions(mm)
3200*1800*2450
Weight(kg)
3200
Outlet
G2*1, G3/4*1
Number of wheels
4

Heavy Duty 17m3/Min 17bar Diesel Engine Screw Air Compressor Concrete Breaker

Heavy Duty 17m3/Min 17bar Diesel Engine Screw Air Compressor Concrete Breaker
