Diesel Driven Portable Oil Less 25hp 7bar 100 Psi Pneumatic Air Compressor For Drilling Borehole
Diesel Driven Portable Oil Less 25hp 7bar 100 Psi Pneumatic Air Compressor For Drilling Borehole
Diesel Driven Portable Oil Less 25hp 7bar 100 Psi Pneumatic Air Compressor For Drilling Borehole
Diesel Driven Portable Oil Less 25hp 7bar 100 Psi Pneumatic Air Compressor For Drilling Borehole
Diesel Driven Portable Oil Less 25hp 7bar 100 Psi Pneumatic Air Compressor For Drilling Borehole
Diesel Driven Portable Oil Less 25hp 7bar 100 Psi Pneumatic Air Compressor For Drilling Borehole
Diesel Driven Portable Oil Less 25hp 7bar 100 Psi Pneumatic Air Compressor For Drilling Borehole
Diesel Driven Portable Oil Less 25hp 7bar 100 Psi Pneumatic Air Compressor For Drilling Borehole
Diesel Driven Portable Oil Less 25hp 7bar 100 Psi Pneumatic Air Compressor For Drilling Borehole
Diesel Driven Portable Oil Less 25hp 7bar 100 Psi Pneumatic Air Compressor For Drilling Borehole
Specifications
Brand Name :
China
Model Number :
W-3.2/7
Certification :
ce
Place of Origin :
China
MOQ :
1
Price :
$600-1500 per unit
Payment Terms :
Western Union, T/T, L/C
Delivery Time :
3-10 days after the payment
Packaging Details :
export wooden case
Capacity :
3.2m3/min
Working pressure :
7bar air compressor
Product name :
air compressor for jack hammer
Application :
mining,Drilling Operations; hydroblasting; cable blowing and so on,Mine
Power source :
Diesel driven air compressor
Type :
Piston type
Configuration :
Portable type
Lubrication style :
Oil-less
Description

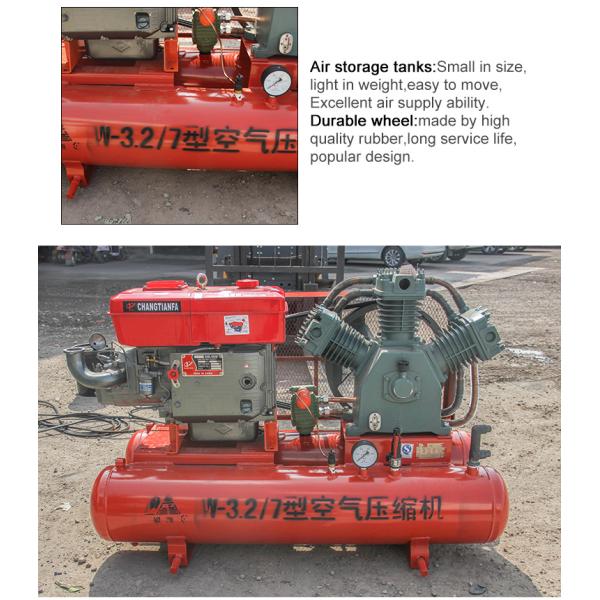

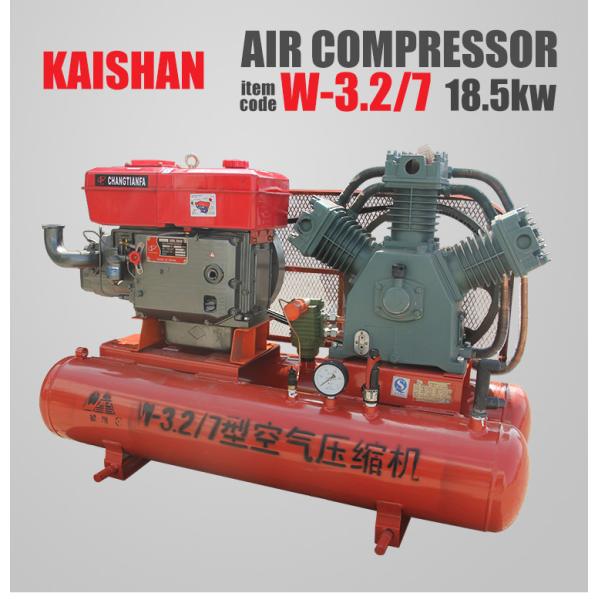

Diesel Driven Portable Oil Less 25hp 7bar 100 Psi Pneumatic Air Compressor For Drilling Borehole

Advantages
1.Valve plate and spring strip:made of special steel from Sweden and after special treatment;high efficient and reliable.
2.Piston ring:special design;integral casting;excellent flexibility;lowest lubricating oil consumption.

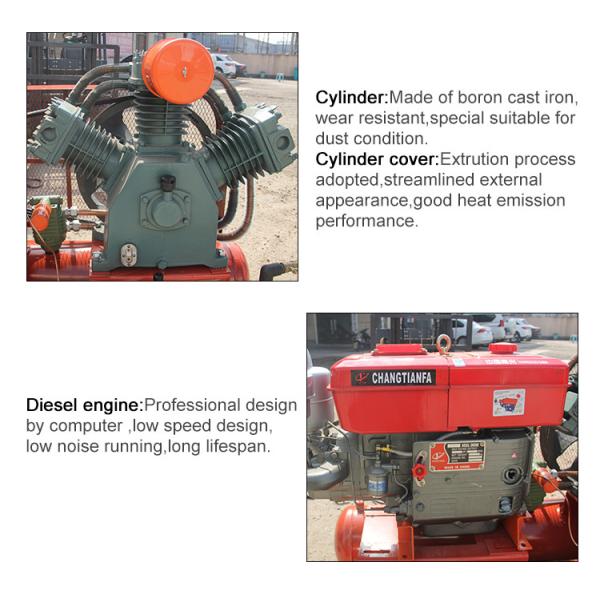

3.Cylinder:made of boron cast iron;wear resistant;special suitable for dusty condition.
4.Cylinder cover:extrusion process adopted;streamlined external appearance;good heat emission performance.
5. Simple structure light weight easy to move.
6. Energy saving Low cost.
7.Easy operating and maintenance.
Details Images

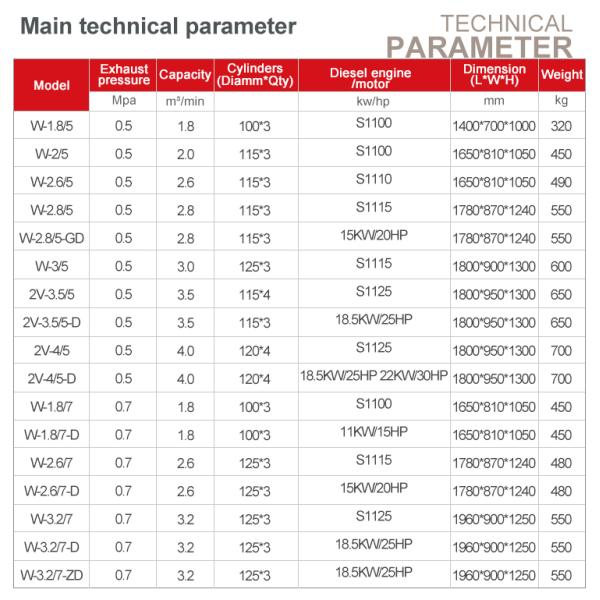

Model
W-3.2/7
Exhaust pressure(Mpa)
0.7
Air Consumption(m3/min)
3.2
Cylinders(Diamm*Qty)
125*3
Diesel engine
S1125
Dimension(mm)
1960*900*1250
Weight(kg)
580

Diesel Driven Portable Oil Less 25hp 7bar 100 Psi Pneumatic Air Compressor For Drilling BoreholeDiesel Driven Portable Oil Less 25hp 7bar 100 Psi Pneumatic Air Compressor For Drilling Borehole

Diesel Driven Portable Oil Less 25hp 7bar 100 Psi Pneumatic Air Compressor For Drilling BoreholeDiesel Driven Portable Oil Less 25hp 7bar 100 Psi Pneumatic Air Compressor For Drilling BoreholeDiesel Driven Portable Oil Less 25hp 7bar 100 Psi Pneumatic Air Compressor For Drilling Borehole
