A4VSO40 / 180PPB13N00 Rexroth Replacement Parts For Hydraulic Systems
A4VSO40 / 180PPB13N00 Rexroth Replacement Parts For Hydraulic Systems
A4VSO40 / 180PPB13N00 Rexroth Replacement Parts For Hydraulic Systems
A4VSO40 / 180PPB13N00 Rexroth Replacement Parts For Hydraulic Systems
Specifications
Brand Name :
HUATAO
Model Number :
HT-PLH
Place of Origin :
China
Certification :
ISO9001
MOQ :
1
Price :
1000
Packaging Details :
Wooden Box
Delivery Time :
5-10 days
Payment Terms :
EXW/FOB/CFR/CIF/DDP
Supply Ability :
100 sets/month
Type :
A4vso Series
Displacement :
40, 71, 125, 180, 250, 355, 500, 750, 1000 mL/r
Speed :
1600-3700 rpm
Main materials :
cast iron, copper, steel, oil seal, etc.
Category :
high power-to-weight ratio
Drive mode :
electric motor
Working pressure range :
350bar~400bar
Control mode :
pressure flow control
Material :
cast iron
Working mode :
open circuit
Description

A4VSO40/180PPB13N00 Rexroth Replacement Parts For Hydraulic Systems

Product Description

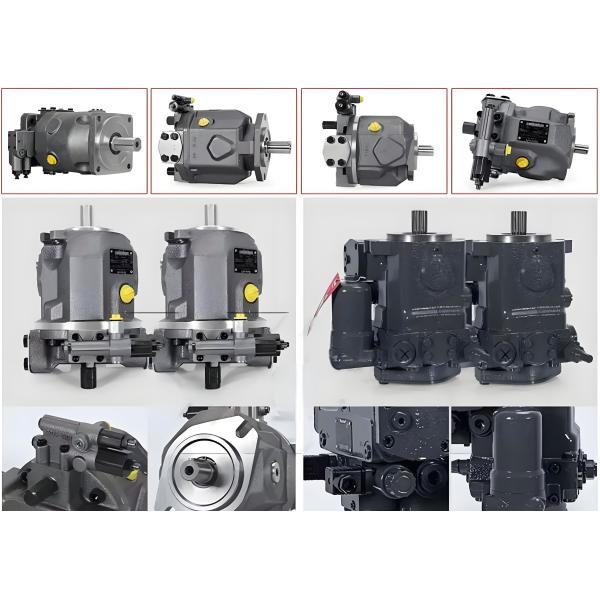

The A4VSO40/180PPB13N00 Rexroth plunger pump is a high-performance hydraulic component. It is designed with precision engineering to convert mechanical power into hydraulic energy. This pump features a compact and robust construction, suitable for integration into various industrial hydraulic systems. It is part of the renowned A4VSO series, which is known for its reliability and versatility. The pump is engineered to handle a wide range of operating conditions and is capable of delivering a consistent flow of hydraulic fluid at different pressures, making it an essential part of many machinery and equipment setups.

Piston pump advantage

  1. High Efficiency: The pump is optimized for energy-efficient operation. It minimizes power losses during the conversion of mechanical to hydraulic power, resulting in lower operating costs and reduced energy consumption. This is achieved through advanced internal design features and precise manufacturing tolerances.
  2. Variable Displacement: The A4VSO40/180PPB13N00 offers variable displacement capabilities. This means that the output flow rate can be adjusted according to the specific requirements of the hydraulic system. It allows for better control and adaptability, enhancing the overall performance and flexibility of the equipment it is installed in.
  3. Low Noise and Vibration: Thanks to its refined design and high-quality manufacturing, the pump operates with minimal noise and vibration levels. This not only provides a quieter working environment but also reduces wear and tear on associated components and extends the service life of the entire hydraulic system.

Technical Parameters:

Specification Displacement

(cm³)

 Maximum speed (rpm) lowest speed (rpm) Maximum flow rate (l/min) maximum power (kW) maximum torque (Nm) Shell volume (L) Weight (kg)
40 2600 500 104 61 223 2 39
71 2200 500 156 91 395 2.5 53
125 1800 500 225 131 696 5 88
180 1800a 500 324 189 1002 4 102
250 1500 500 375 219 1391 10 184
355 1320 500 533 311 1976 14 207
500 1200 500 660 385 2783 19 320
750 1000 500 900 525 4174 22 460
1000 1000 500 1125 656 5565 27 605

Application areas


Construction machinery: such as excavators, loaders, cranes, etc., to provide power for their hydraulic systems to achieve control of various actions, such as digging, lifting, rotation, etc. Due to the harsh working environment of construction machinery, the reliability and performance requirements of hydraulic pumps are high. A4VSO series pumps can meet these requirements well.
Injection molding machine: In the hydraulic system of the injection molding machine, it is responsible for providing precise flow and pressure control to ensure that the plastic raw materials can be accurately formed in the mold. Its variable control function can flexibly adjust the hydraulic parameters according to different injection molding process requirements to improve the quality and production efficiency of injection molding products.
