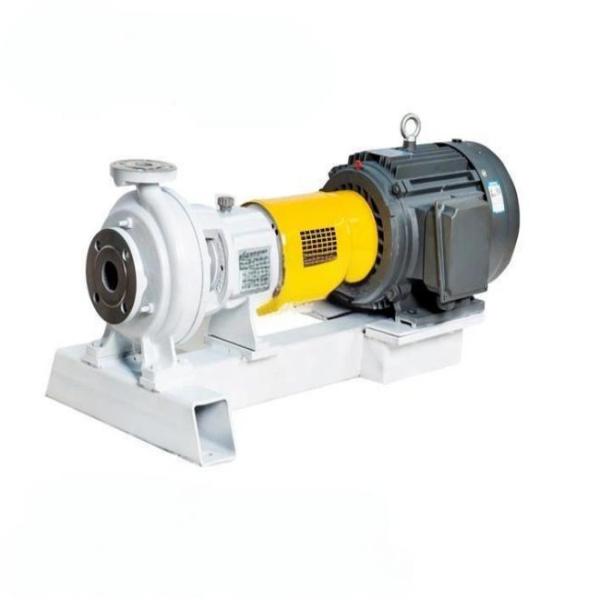

OEM Pulp Pump Sulzer A32-80 SO A42-200 SO A21-80 O A32-100 SO Equivalent
OEM Pulp Pump Sulzer A32-80 SO A42-200 SO A21-80 O A32-100 SO Equivalent
OEM Pulp Pump Sulzer A32-80 SO A42-200 SO A21-80 O A32-100 SO Equivalent
OEM Pulp Pump Sulzer A32-80 SO A42-200 SO A21-80 O A32-100 SO Equivalent
Specifications
Brand Name :
Huatao
Model Number :
Pulp pump
Certification :
CE
Place of Origin :
China
MOQ :
1 SET
Price :
USD 1000-USD5000
Payment Terms :
TT L/C Western Union
Supply Ability :
100 Sets/ month
Delivery Time :
7-15 Work Days
Packaging Details :
Standard export wooden box
Type :
Horizontal, Single-stage, Single-suction, Cantilever Double-casing Centrifugal
Speed :
1450-2900rpm
Service Life :
More Than 20 Years
Head :
Up To 160m
Application :
Papermaking, pulping, water treatment, sugar making, starch
Material :
Stainless Steel, Cast Iron
Transport Package :
Export Wooden Case
Impeller :
Open, Closed, Semi Open
Eff :
89%
Description

Product Description:

Pulp centrifugal pumps play a pivotal role in the paper - making industry. Structurally, their body often adopts a volute design. This unique shape smoothly guides the pulp thrown out by the impeller to the pump outlet. It ensures a more even pulp flow, reducing local pressure fluctuations and impacts, which in turn minimizes wear on the pump body. Some pumps feature a rear - opening body structure. This design offers great convenience for maintenance. When the impeller needs replacement due to wear, technicians can access it easily by opening the rear pump door without disconnecting the entire pump body from the inlet and outlet pipes.
In terms of performance, these pumps have a wide range of flow rates, which can be adjusted according to different production requirements. They can handle various pulp concentrations, from low - density pulp for initial mixing to high - density pulp for further processing. Regarding shaft seals, they usually offer two options: packing seals and mechanical seals. Packing seals are simple in structure but require regular adjustment. Mechanical seals, however, provide excellent sealing performance, making them suitable for processes with strict leakage requirements.
These pumps are extensively used in paper mills for pulp transportation, ensuring the smooth operation of the entire papermaking process.

Advantages of Pulp Centrifugal Pumps

Efficient Flow & Wear Resistance

Volute - shaped pump body guides pulp smoothly, reducing pressure fluctuations and impacts, minimizing wear, and extending service life while lowering long - term maintenance costs.

Convenient Maintenance
Rear - opening body design allows easy access to components like the impeller for repair or replacement without disconnecting inlet and outlet pipes, saving maintenance time and effort.

Versatile Performance
Handles a wide range of pulp concentrations, from low - density for initial mixing to high - density for advanced processing. Also, has an adjustable flow rate according to production needs.

Sealing Options
Offers packing and mechanical seals. Mechanical seals, with excellent sealing, are suitable for strict - leakage processes, maintaining production integrity and reducing pollution risk.

Technical Parameters:

Capacity: Up to 9000m3/h
Head: Up to 160m
Pressure: up to 25 bar
Temperature: up to 180oC
Discharge sizes: from 32mm to 600mm
Speed of rotation: up to 3600rpm
Pressure: Up to 2.5Mpa (depend on material and size)
Impeller: Closed/Low flow/Open/Special open/Low pulse/ Vortex Impeller
Consistency: 0% ~ 8%
