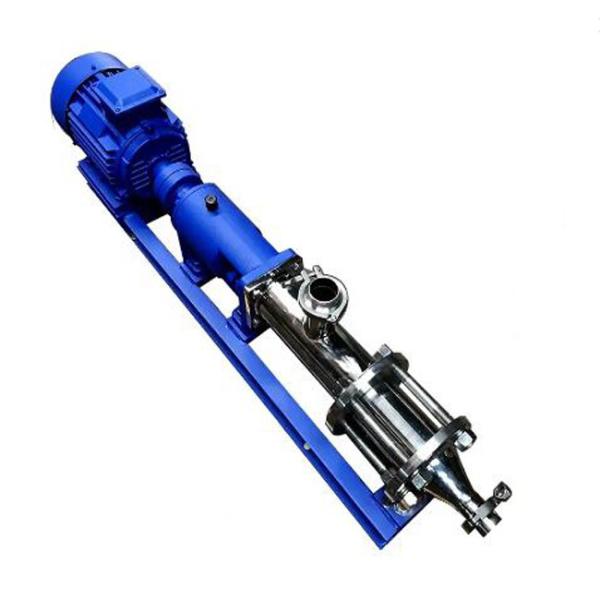

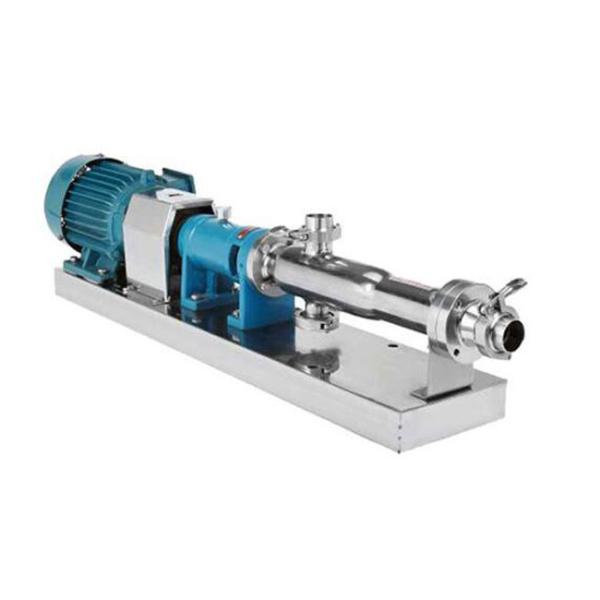

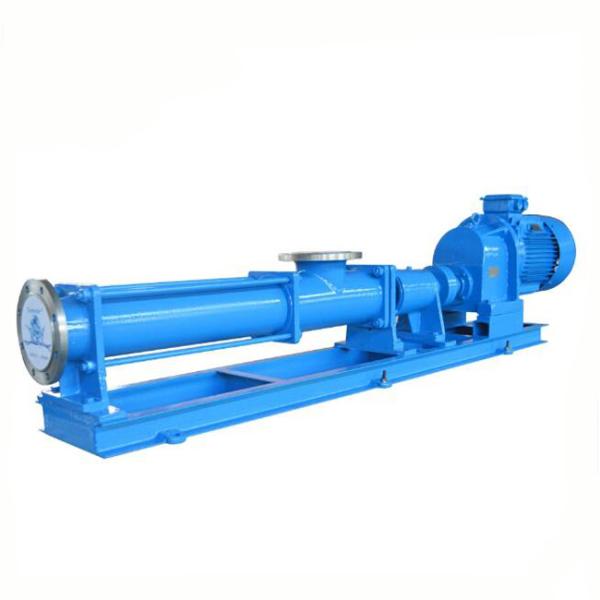

High Pressure Sludge Screw Pump Manufacturers Multi Stage Stainless Industrial
High Pressure Sludge Screw Pump Manufacturers Multi Stage Stainless Industrial
High Pressure Sludge Screw Pump Manufacturers Multi Stage Stainless Industrial
High Pressure Sludge Screw Pump Manufacturers Multi Stage Stainless Industrial
Specifications
Brand Name :
Huatao
Model Number :
HT- Screw Pump
Certification :
ISO9001
Place of Origin :
China
MOQ :
1 Set
Price :
USD 1000-5000 / Set
Payment Terms :
T/T, L/C , Western Union
Supply Ability :
2000 sets / month
Delivery Time :
20-35 days
Packaging Details :
Wooden Box
Product Name :
High Pressure Screw Pump
Speed :
960r/min
Flow :
10~90m3/h
Power :
1.5kw
Lift :
120m
Productivity :
2000L/Hour
Warranty :
1 year
Pressure :
High Pressure
Description

Screw Pumps For Sewage Treatment Plant

Screw Pumps Description

Screw pump is a new type of pump which works according to the principle of rotary meshing volumetric pump. The main working parts are eccentric screw (rotor) and fixed bushing (stator). Due to the special geometry of the two parts, separate sealed cavities are formed respectively. The medium flows evenly from the axial direction. The internal flow rate is low, the volume remains unchanged, and the pressure is stable. Therefore, no eddy current and agitation will occur. The output pressure of each stage of the pump is 0.6MPa, the lift is 60m (clean water), and the self-priming height is generally 6m. It is suitable for conveying medium temperature below 80 ℃ (special requirements can reach 150 ℃). Because the stator is made of a variety of elastic materials, the pump is not competent for the transportation of high viscosity fluid and medium containing hard suspended particles or fiber.

Slurry Screw Pump Specification:

Product Name Screw pump
Voltage 220V / 380V
Flow 10~90m3/h
Suction Diameter 3~6 inch
Head 1~ 99m
Power up to 120 kw
Material Cast iron/Stainless Steel(SS304/SS316L/SS904)

Screw Pump Application:

·Transportation of general neutral thick slurry.
·Transportation of general slightly acidic and alkaline slurry.
·Transportation of food, pharmaceuticals, and corrosive slurries.
·Industrial and domestic sewage and sludge treatment.

High Pressure Sludge Screw Pump Manufacturers Multi Stage Stainless Industrial

Huatao Pumps Application

High Pressure Sludge Screw Pump Manufacturers Multi Stage Stainless Industrial

Huatao Pumps Package, Shipment, Workshop

High Pressure Sludge Screw Pump Manufacturers Multi Stage Stainless Industrial

High Pressure Sludge Screw Pump Manufacturers Multi Stage Stainless Industrial

Exhibition And Customer Visting

High Pressure Sludge Screw Pump Manufacturers Multi Stage Stainless Industrial
