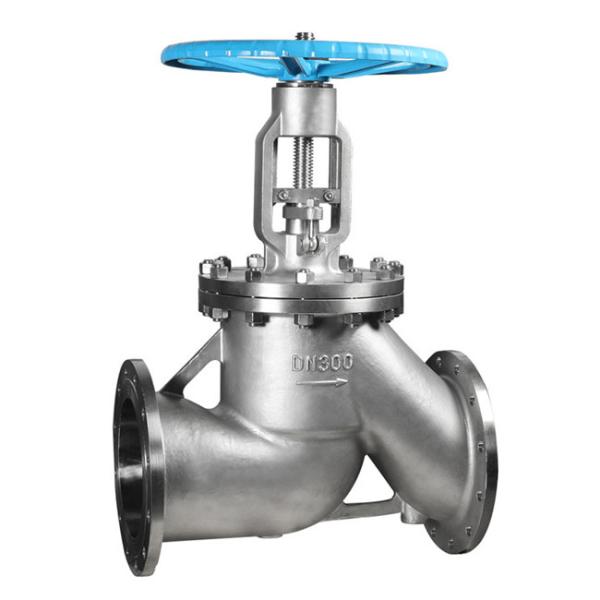

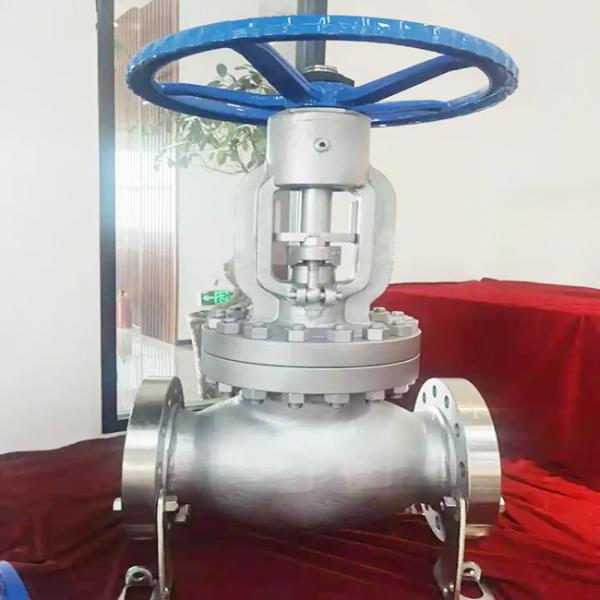

Insulated Stop Valve Simple structure For Chemical Industry
Insulated Stop Valve Simple structure For Chemical Industry
Insulated Stop Valve Simple structure For Chemical Industry
Insulated Stop Valve Simple structure For Chemical Industry
Insulated Stop Valve Simple structure For Chemical Industry
Insulated Stop Valve Simple structure For Chemical Industry
Insulated Stop Valve Simple structure For Chemical Industry
Insulated Stop Valve Simple structure For Chemical Industry
Specifications
Brand Name :
HUATAO
Model Number :
HT-Stop Valve
Certification :
ISO9001
Place of Origin :
China
MOQ :
1 SET
Price :
USD 100-600 / Set
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
1000 sets / month
Delivery Time :
10-15 days after receiving deposit
Packaging Details :
Wooden box
Product name :
Insulated Stop Valve
Nominal Pressure :
2.5-6.4
Clamshell test preasure :
3.75-9.0
Seal up test preasure :
2.75-6.6
Applicable temperature :
≤200
Applicable medium :
nitrate
Description

Small Working Stroke Insulated Stop Valve For Chemical Industry

Insulated Stop Valve Description

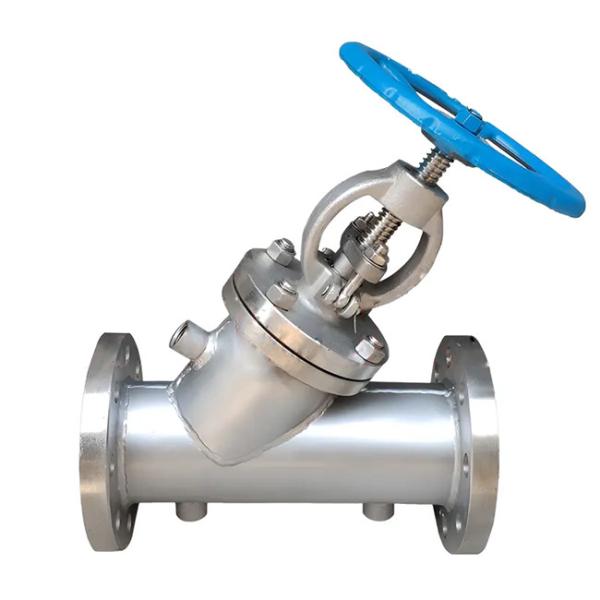

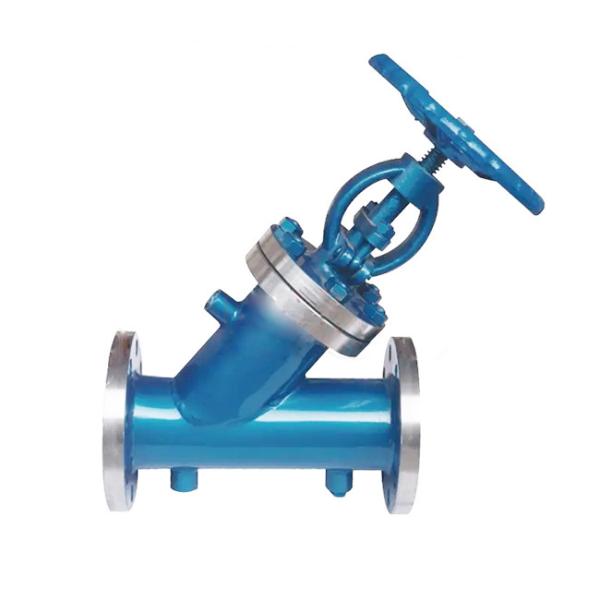

Insulated stop valve, mainly used in petroleum, chemical, metallurgical, pharmaceutical and other types of systems to transport high viscosity media will solidify at room temperature, DC jacketed insulation stop valve insulation jacket welded to the valve between the two flanges, the valve's side, the bottom of the two connections set up with the insulation jacket port. DC insulation disconnecting valve is especially suitable for chemical industry, fertilizer industry pipeline, the jacket connotation into the steam can prevent the media crystallization.

Insulated Stop Valve Advantages

1, Simple structure, manufacturing and maintenance is relatively convenient;.

2, Small working stroke, short opening and closing time.

3, Good sealing, small friction between sealing surfaces, long life.

4, Suitable for larger viscosity, easy to coking medium.

Insulated Stop Valve Specification

Nominal Preasure

PN(MPa)

 Test Pressure Applicable temperature Applicable medium

Insulation sleeve pressure

(MPa)
clamshell seal up
2.5 3.75 2.75 ≤200 nitrate ≤1.0
4.0 6.0 4.4
6.4 9.0 6.6
2.5 3.75 2.75 nitrate
4.0 3.0 4.4
6.4 9.0 6.6

Insulated Stop Valve Simple structure For Chemical IndustryInsulated Stop Valve Simple structure For Chemical IndustryInsulated Stop Valve Simple structure For Chemical Industry

Please ask for pump details and price by inquiry@huataogroup.com. For any questions will reply within 24 hours.
