450/750V Flexible Rubber Cable H07RN-F/H05RN-F for Building Construction
450/750V Flexible Rubber Cable H07RN-F/H05RN-F for Building Construction
Specifications
Brand Name :
Rubber Power Cable
Model Number :
Flexible Cable
Certification :
CCC,ISO,CE,TUV,IEC
Place of Origin :
Hebei，China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C,T/T
Supply Ability :
100KM/Week
Delivery Time :
10Days
Packaging Details :
Wooden drum
Application :
Construction
Sheath :
Rubber
Insulation Options :
PVC, Rubber, or EPR
Metric Cross-Sections :
10mm² to 240mm²
Conductor Material :
Copper
Color :
Black, Orange, Red, etc.
Description

450/750V Flexible Rubber Cable H07RN-F/H05RN-F for Building Construction


APPLICATION

The cables are designed to provide high flexibility and have the capacity to withstand weather,oil/grease, mechanical and thermal stresses. Applications include handling equipment, mobile power supplies, worksites, stage and audio visual equipment,port areas and dams. Also for use in drainage and water treatment, cold environments and severe industrial environment

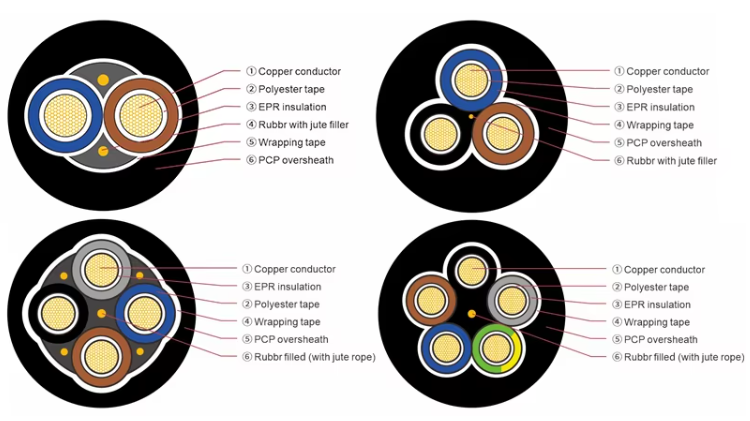

CONSTRUCTION

1. Conductor : Class 5 flexible plain copper conductor
2. Insulation : EPR(Ethylene Propylene Rubber)
3. Sheath : PCP(Polychioroprene)


450/750V Flexible Rubber Cable H07RN-F/H05RN-F for Building Construction


TECHNICAL DATA

H07RN-F model rated voltage U0/U IS 450/750V

H05RN-F model rated voltage U0/U IS 300/500V

H05RR-F model rated voltage U0/U IS 300/500V

Long time allow working temperature of wire core cant be higher than 60C


SPECIFICATION

Cross-
sectional
Area
(mm²)		 No.&
diameter of
wire
(N/mm)
Reference
overall
diameter
(mm)
Reference
weight
(kg/km)
Resistance at 20℃ Max
Copper
core		 Tin plated
copper core
2x1.5 30/0.25 9.4 116 13.3 13.7
2x2.5 50/0.25 11.0 166 7.98 8.21
2x4.0 80/0.25 12.8 232 4.95 5.09
2x6.0 119/0.25 14.2 291 3.3 3.39
2x10 200/0.25 19.0 534 1.91 1.95
2x16 315/0.25 21.6 740 1.21 1.24
2x25 350/0.3 25.7 1057 0.78 0.795
2x35 494/0.3 28.6 1368 0.554 0.565
2x50 684/0.3 33.2 1881 0.386 0.393
2x70 969/0.3 37.1 2457 0.272 0.277
2x95 1330/0.3 42.3 3270 0.206 0.21
3x1.5 30/0.25 10.1 141 13.3 13.7
3x2.5 50/0.25 11.8 203 7.98 8.21
3x4.0 80/0.25 13.7 286 4.95 5.09
3x6.0 119/0.25 15.2 374 3.3 3.39
3x10 200/0.25 20.4 665 1.91 1.95
3x16 315/0.25 23.2 905 1.21 1.24
3x25 350/0.3 27.5 1334 0.78 0.795
3x35 494/0.3 30.7 1740 0.554 0.565
3x50 684/0.3 35.5 2397 0.386 0.393
3x70 969/0.3 39.7 3155 0.272 0.277
3×95 1330/0.3 45.5 4230 0.206 0.21
3x120 1691/0.3 49.3 5120 0.161 0.164
Contact us for more information


450/750V Flexible Rubber Cable H07RN-F/H05RN-F for Building Construction


450/750V Flexible Rubber Cable H07RN-F/H05RN-F for Building Construction

450/750V Flexible Rubber Cable H07RN-F/H05RN-F for Building Construction

450/750V Flexible Rubber Cable H07RN-F/H05RN-F for Building Construction

450/750V Flexible Rubber Cable H07RN-F/H05RN-F for Building Construction

‌FAQ

Q: What cables do you make?

A: Power, control, communication, overhead & custom industrial cables.

Q: Are your cables up to global standards?

A: Yes—compliant with IEC, UL & CE for worldwide quality.

Q: Can I get custom cables?

A: Sure! OEM/ODM services for specs, lengths & materials.

Q: What’s your MOQ?

A: 100m for standard cables; flexible terms for custom orders.

Q: How long is production time?

A: 7–14 days (standard); 15–25 days (customized).

Q: How do you ensure quality?

A: Full-process checks—raw materials to conductivity & durability tests.

Q: Can I get free samples?

A: Free samples for qualified customers (freight collect).
