High Performance MV ABC Cable 12.7/22kv 3x150+50mm for Overhead Power Lines
High Performance MV ABC Cable 12.7/22kv 3x150+50mm for Overhead Power Lines
Specifications
Brand Name :
Overhead Service Drop ABC Cable
Model Number :
ABC
Certification :
CCC,ISO,TUV,CE
Place of Origin :
Hebei，China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
,L/C,T/T
Supply Ability :
100KM/Week
Delivery Time :
7-30 days based on different qty
Packaging Details :
Wooden Drum/ Steel Drum
Application :
overhead distribution line
Cores Nos :
1,2,3,4 more multicore
Rated Voltage :
15/35kV
Installation Degree :
-20℃-90℃
Neutral Messengers :
AAC, AAAC or ACSR
Insulation :
PE/PVC
Description

High Performance MV ABC Cable 12.7/22kv 3x150+50mm for Overhead Power Lines



Deatils


Phase Conductor : Aluminium Conductor
Neutral Conductor : AAC/AAAC/ACSR
Insulation : XLPE/PE
Rated Voltage : 1-35KV
Cores : 1,3 Cores

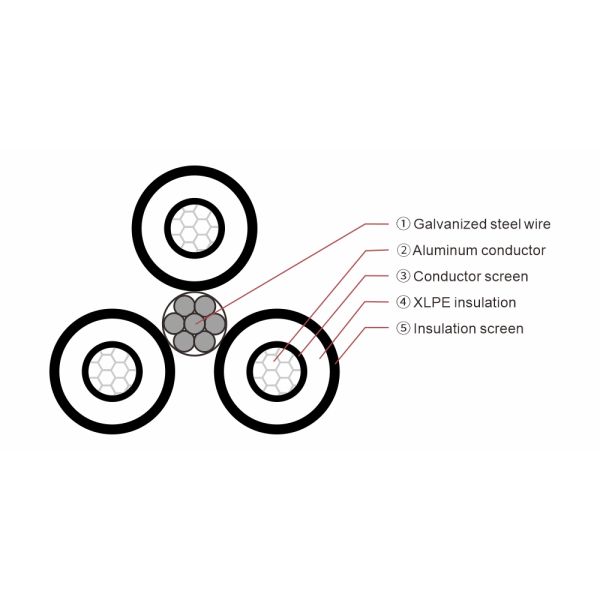

Construction


High Performance MV ABC Cable 12.7/22kv 3x150+50mm for Overhead Power Lines



Specification


UMBER OF CORES X NOMINAL CROSS SECTION

PHASE CONDUCTOR

MESSENGER SUSPENSION UNIT

CONTINUOUS CURRENT RATING AT 300C AMBIENT TEMP

STRANDING

NOMINAL SECTIONAL AREA

MAXIMUM CONDUCTOR RESISTANCE

STRANDING

NOMINAL SECTIONAL AREA

BREAKING LOAD

NO.×MM²

NO.×MM

MM²

Ω/KM

NO.×MM

MM²

KN

A

3X50 + 1X25

19/1.78

50

0.641

7/3.0

50

60

116

3X70 + 1X50

19/.14

70

0.443

7/3.15

50

62

210

3X95+ 1X50

19/2.52

95

0.32

7/3.0

50

60

173

3X185+1X120

37/2.52

185

0.164

7/4.67

120

150

259

3X150 +1X50

37/2.25

150

0.206

7/3.15

50

62

365

3X240 +1X50

61/2.25

240

0.125

7/3.15

50

62

500


Contact us for more details

High Performance MV ABC Cable 12.7/22kv 3x150+50mm for Overhead Power Lines

High Performance MV ABC Cable 12.7/22kv 3x150+50mm for Overhead Power Lines

High Performance MV ABC Cable 12.7/22kv 3x150+50mm for Overhead Power Lines

High Performance MV ABC Cable 12.7/22kv 3x150+50mm for Overhead Power Lines


High Performance MV ABC Cable 12.7/22kv 3x150+50mm for Overhead Power Lines


FAQ

1.You are manufacturer or trader ?

We are a professional ISO certified cable manufacturer with more than 20 years experience.

2.How can I get the quotation of the products ?

Pls send your inquiry to us,our sales manager will offer you within 12 hours.

3.What does your company do regarding quality control?

1) All raw materials we selected are the highest quality. 2) Professional and skillful workers care every details in handling the producing. 3) Quality control department is specially responsible for quality checking in each process.

4.Do you provide OEM project service?

Yes,OEM & ODM order is warmly welcomed.Our engineers will give you the professional suggestions.

5.What is your payment term ?

Our payment term is usually T/T 30% in advanced, the balance before shipping or L/C at sight.
