Fire-resistant Pair Twisted Shielded Cable ZC-DJYPVP 300/500V for Automation Instruments
Fire-resistant Pair Twisted Shielded Cable ZC-DJYPVP 300/500V for Automation Instruments
Specifications
Brand Name :
Pair Shielded Instrument Cable
Model Number :
DJYPVP-300/500V ZC-DJYPVP 300/500V
Certification :
IEC,CE,ISO
Place of Origin :
Hebei，China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C,T/T
Supply Ability :
100KM/Week
Delivery Time :
10Days
Packaging Details :
wooden drums
Conductor :
Copper
Insulation :
PVC
Drain Wire :
Tinned copper
Voltage Rating :
300V/500V
Outer Sheath Colour :
Black,Blue
Temperature :
Fixed -40°C to +80°C
Description

Fire-resistant Pair Twisted Shielded Cable ZC-DJYPVP 300/500V for Automation Instruments


APPLICATION

The cables are mainly used in systems where signal transmission must continue working during a fire, especially for critical safety and control circuits.

CONSTRUCTION

  • Conductor: copper
  • Insulation:LLDPE
  • Separate shielding: Braided shielding (P)
  • Overall shield: Braided shielding (P)
  • Armouring:Steel Tape Armour
  • Outer sheath:Polyvinyl chloride ST2 (PVC)



Fire-resistant Pair Twisted Shielded Cable ZC-DJYPVP 300/500V for Automation Instruments


CHARACTERISTIC

1. Rated voltage: 300/500V.

2. Working temperature: PVC insulation and polyethylene insulation shall not exceed 70 ℃; Cross linked polyethylene insulation shall not exceed 90 ℃.

3. The laying temperature of wires and cables should not be lower than 0 ℃.

4. The bending radius of unarmored cables shall not be less than 6 times the outer diameter of the cable, and the bending radius of armored cables shall not be less than 12 times the outer diameter of the cable.


SPECIFICATION


No of Pair

No of Core

Section
mm²

Insulation thickness mm

Total screen single filament diameter

mm

Steel Tape Thickness
mm

Outer sheath thickness
 mm

Approx cable outer diameter
mm

Approx cable weight
kg/km

1

2

0.5

0.50

0.15

02

1.1

10.7

148

2

2

0.5

0.50

0.15

02

1.2

136

226

3

2

0.5

0.50

0.15

0.2

1.2

14.1

249

4

2

0.5

0.50

0.15

0.2

12

14.9

281

5

2

0.5

0.50

0.15

02

1.2

158

315

6

2

0.5

0.50

0.15

02

12

16.7

351

7

2

0.5

0.50

0.15

0.2

1.2

16.7

360

8

2

0.5

0.50

0.2

02

13

18.6

437

9

2

0.5

0.50

0.2

02

1.3

19.7

481

10

2

0.5

0.50

0.2

0.2

13

20.4

511

11

2

0.5

0.50

0.2

0.2

13

204

522

12

2

0.5

0.50

0.2

02

13

20.9

548

13

2

0.5

0.50

0.2

02

13

21.7

583

14

2

0.5

0.50

0.2

02

13

21.7

594

15

2

0.5

0.50

0.2

02

14

22.9

644

16

2

0.5

0.50

0.2

0.2

14

22.9

654

17

2

0.5

0.50

0.2

02

14

238

696

18

2

0.5

0.50

0.2

02

14

238

707

19

2

0.5

0.50

0.2

0.2

14

238

712

20

2

0.5

0.50

0.2

0.2

14

24.9

763

21

2

0.5

0.50

0.2

0.2

14

24.9

774

22

2

0.5

0.50

0.2

0.2

14

26.0

822

23

2

0.5

0.50

0.2

0.2

14

26.0

832

24

2

0.5

0.50

0.2

0.2

1.5

273

891

25

2

0.5

0.50

0.2

02

1.5

27.3

902

26

2

0.5

0.50

0.2

02

1.5

273

912

27

2

0.5

0.50

0.2

0.2

1.5

28.2

966

28

2

0.5

0.50

0.25

02

1.5

29.2

1037

29

2

0.5

0.50

0.25

0.2

1.5

29.2

1048

30

2

0.5

0.50

0.25

0.2

1.5

29.2

1059

31

2

0.5

0.50

0.25

0.2

1.5

30.1

1105

32

2

0.5

0.50

0.25

02

15

30.1

1116

33

2

0.5

0.50

0.25

02

1.5

30.1

1126

34

2

0.5

0.50

0.25

0.5

1.6

32.5

1473

35

2

0.5

0.50

0.25

0.5

1.6

325

1483

36

2

0.5

0.50

0.25

0.5

16

325

1494

37

2

0.5

0.50

0.25

0.5

1.6

325

1492

38

2

0.5

0.50

0.25

0.5

16

33.6

1568

39

2

0.5

0.50

0.25

0.5

1.6

33.6

1579

40

2

0.5

0.50

0.25

0.5

16

33.6

1590

41

2

0.5

0.50

0.25

0.5

1.6

34.7

1656

42

2

0.5

0.50

0.25

0.5

1.6

34.7

1667


Contact us for more information

Fire-resistant Pair Twisted Shielded Cable ZC-DJYPVP 300/500V for Automation Instruments

Fire-resistant Pair Twisted Shielded Cable ZC-DJYPVP 300/500V for Automation Instruments

Fire-resistant Pair Twisted Shielded Cable ZC-DJYPVP 300/500V for Automation Instruments

Fire-resistant Pair Twisted Shielded Cable ZC-DJYPVP 300/500V for Automation Instruments

Fire-resistant Pair Twisted Shielded Cable ZC-DJYPVP 300/500V for Automation Instruments

FAQ


1.You are manufacturer or trader ?

We are a professional ISO certified cable manufacturer with more than 20 years experience.

2.How can I get the quotation of the products ?

Pls send your inquiry to us,our sales manager will offer you within 12 hours.

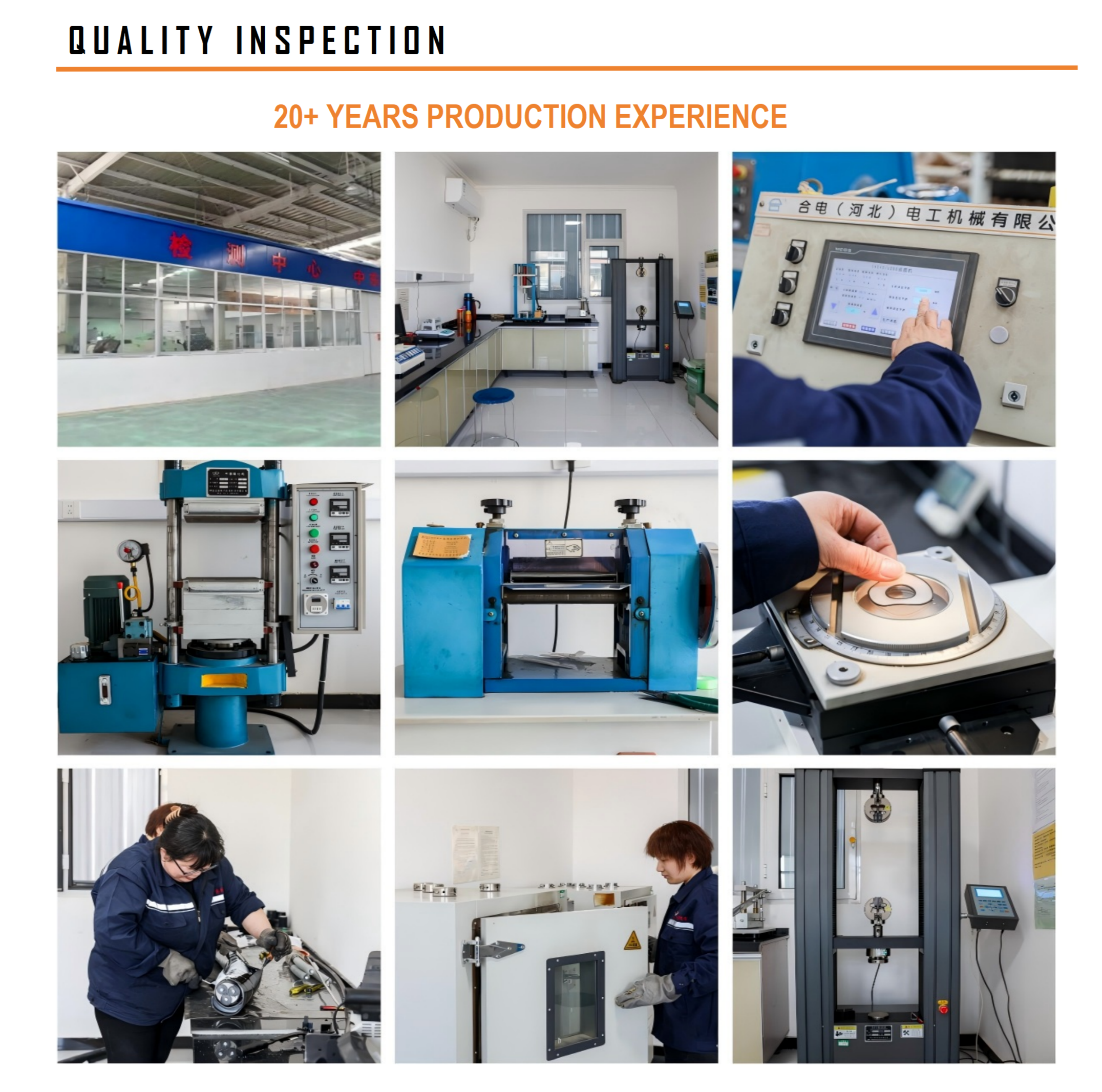

3.What does your company do regarding quality control?

1) All raw materials we selected are the highest quality. 2) Professional and skillful workers care every details in handling the producing. 3) Quality control department is specially responsible for quality checking in each process.

4.Do you provide OEM project service?

Yes,OEM & ODM order is warmly welcomed.Our engineers will give you the professional suggestions.

5.What is your payment term ?

Our payment term is usually T/T 30% in advanced, the balance before shipping or L/C at sight.
