Overhead Aerial Bundled Cable 3*70 Alu NFC 33-209 ABC Cable
Overhead Aerial Bundled Cable 3*70 Alu NFC 33-209 ABC Cable
Specifications
Brand Name :
Overhead Service Drop ABC Cable
Model Number :
ABC
Certification :
CCC,ISO,TUV,CE
Place of Origin :
Hebei，China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
,L/C,T/T
Supply Ability :
100KM/Week
Delivery Time :
7-30 days based on different qty
Packaging Details :
Wooden Drum/ Steel Drum
Application :
overhead distribution line
Cores Nos :
1,2,3,4 more multicore
Rated Voltage :
15/35kV
Installation Degree :
-20℃-90℃
Neutral Messengers :
AAC, AAAC or ACSR
Insulation :
PE/PVC
Description

Overhead Aerial Bundled Cable 3*70 Alu NFC 33-209 ABC Cable



Deatils


Phase Conductor : Aluminium Conductor
Neutral Conductor : AAAC(All Aluminium Alloy Conductor)
Insulation : XLPE/PE
Rated Voltage : 0.6/1KV
Cores : 1,2,3,4,5,2+1, 3+1 ,3+2, 4+1, 4+2 Cores
Other Standards: ASTM/ BS 7870-5/ IEC 60502/AS/NZS or according to your requirement.
Application: The aerial bundled cables designed for overhead distribution lines have all conductors made of aluminium,
insulated with XLPE.Phase and neutral cores are laid up in a bundle with a left hand lay. Can be used for fixed installation as overhead power lines up to 1000V

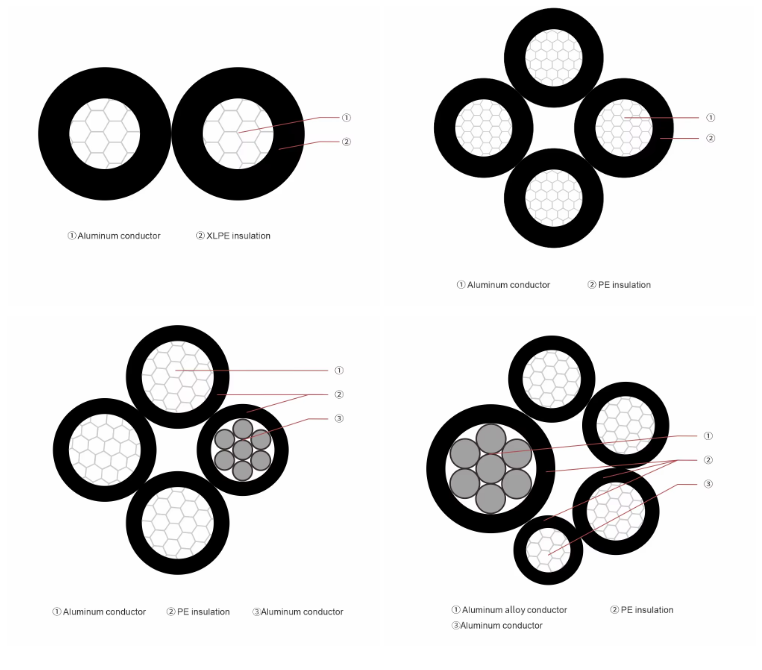

Construction


Overhead Aerial Bundled Cable 3*70 Alu NFC 33-209 ABC Cable



Specification


Number of Cores x Nominal Cross Section
Overal Diameter
Weight
Maximum Conductor Resistance
Minimum Breaking Load
Current Rating
No.x mm^2
mm
Kg/Km
Ω/Km
KN
A
2x10 RM
12.8
93
3.08
1.5
38
4x10 RM
15.4
183
3.08
1.5
38
2x16 RM
14.8
129
1.91
2.3
72
2x16 RN + 2x1.5 RE
14.8
176
1.910/12.100
2.3
72
4x16 RM
17.8
257
1.91
2.3
72
4x16 RN + 2x1.5 RE
17.8
304
1.910/12.100
2.3
72
2x25 RM
18
202
1.2
3.8
107
2x25 RM + 2x1.5 RE
18
249
1.200/12.100
3.8
107
4x25 RM
21.7
404
1.2
3.8
107
4x25 RM + 2x1.5 RE
21.7
451
1.200/12.100
3.8
107
2x35 RM
20.8
269
0.868
5.2
132
2x35 RM + 2x1.5 RE
20.8
316
0.868/12.100
5.2
132
4x35 RM
25.1
539
0.868
5.2
132
4x35 RM + 2x1.5 RE
25.1
586
0.868/12.100
5.2
132
2x50 RM
23.4
352
0.641
7.6
165
2x50 RM + 2x1.5 RE
23.4
399
0.641/12.100
7.6
165
1x54.6 RM + 3x25 RM
21.7
507
0.630/1.200
3.8
107
1x54.6 RM + 3x25 RM + 1x16 RM
24.3
573
0.630/1.200/1.910
3.8/2.3
107/72
1x54.6 RM + 3x25 RM + 2x16 RM
29.7
639
0.630/1.200/1.910
3.8/2.3
107/72
1x54.6 RM + 3x25 RM + 3x16 RM
31.1
705
0.630/1.200/1.910
3.8/2.3
107/72
1x54.6 RM + 3x35 RM
25.1
615
0.630/0.868
5.2
132
1x54.6 RM + 3x35 RM + 1x16 RM
28.1
680
0.630/0.868/1.910
5.2/2.3
132/72
1x54.6 RM + 3x35 RM + 2x16 RM
34.3
748
0.630/0.868/1.910
5.2/2.3
132/72
1x54.6 RM + 3x35 RM + 3x16 RM
35.9
814
0.630/0.868/1.910
5.2/2.3
132/72
1x54.6 RM + 3x35 RM + 1x25 RM
28.1
714
0.630/0.868/1.200
5.2/3.8
132/107
1x54.6 RM + 3x50 RM
28.2
741
0.630/0.641
7.6
165
1x54.6 RM + 3x50 RM + 1x16 RM
31.6
806
0.630/0.641/1.910
7.6/2.3
165/72
1x54.6 RM + 3x50 RM + 2x16 RM
38.6
875
0.630/0.641/1.910
7.6/2.3
165/72
1x54.6 RM + 3x50 RM + 3x16 RM
40.4
940
0.630/0.641/1.910
7.6/2.3
165/72
1x54.6 RM + 3x50 RM + 1x25 RM
31.6
841
0.630/0.641/1.200
7.6/3.8
165/107
1x54.6 RM + 3x70 RM
33
950
0.630/0.443
10.2
205
1x54.6 RM + 3x70 RM + 1x16 RM
37
1014
0.630/0.443/1.910
10.2/2.3
205/72
1x54.6 RM + 3x70 RM + 2x16 RM
45.2
1083
0.630/0.443/1.910
10.2/2.3
205/72
1x54.6 RM + 3x70 RM + 3x16 RM
47.3
1148
0.630/0.443/1.910
10.2/2.3
205/72
1x54.6 RM + 3x70 RM + 1x25 RM
37
1048
0.630/0.443/1.200
10.2/3.8
205/107
1x54.6 RM + 3x70 RM + 2x25 RM
45.2
1150
0.630/0.443/1.200
10.2/3.8
205/107
1x54.6 RM + 3x70 RM + 3x25 RM
47.3
1250
0.630/0.443/1.200
10.2/3.8
205/107
1x54.6 RM + 3x95 RM
37.4
1176
0.630/0.320
13.5
240
1x54.6 RM + 3x95 RM + 1x16 RM
41.9
1243
0.630/0.320/1.910
13.5/2.3
240/72


Contact us for more details


About us


Overhead Aerial Bundled Cable 3*70 Alu NFC 33-209 ABC Cable

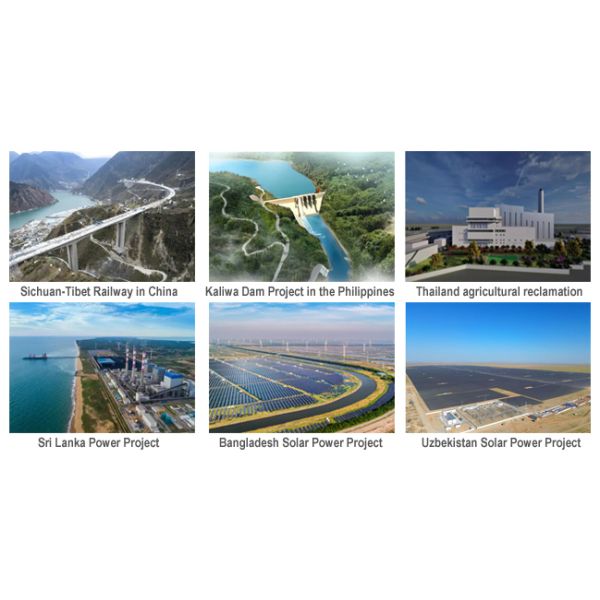

Projects

Overhead Aerial Bundled Cable 3*70 Alu NFC 33-209 ABC Cable

Package

Overhead Aerial Bundled Cable 3*70 Alu NFC 33-209 ABC Cable

Partners

Overhead Aerial Bundled Cable 3*70 Alu NFC 33-209 ABC CableOverhead Aerial Bundled Cable 3*70 Alu NFC 33-209 ABC Cable

FAQ

(1).When can I get the price?

We usually quote within 6 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your e-mail so that we will regard your inquiry priority.

(2).How can I get a sample to check your quality?

After price confirmation, you can require for samples to check our quality. Sample is free, but the freight charge should be paid.

(3).How long can I expect to get the sample?

After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7 days. The samples will be sent to you via express and arrive in 3~5 days. You can use your own express account or prepay us if you do not have an account.

(4).What about the lead time for mass production?

Honestly, it depends on the order quantity and the season you place the order.The best record we keep is delivering 10 kilometers cable within a week. Generally speaking, we suggest that you start inquiry two months before the date you would like to get the products at your country.

(5).What is your payment term ?

Our payment term is usually T/T 30% in advanced, the balance before shipping or L/C at sight.
