MV 3.6-35kV XLPE Insulated Electrical Wire NA2XSY NA2XSY for Electrical Transmission
MV 3.6-35kV XLPE Insulated Electrical Wire NA2XSY NA2XSY for Electrical Transmission
Specifications
Brand Name :
Aluminium Power Cable
Certification :
IEC,CE,ISO,TUV
Place of Origin :
Hebei，China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
,L/C,T/T
Supply Ability :
100KM/Week
Delivery Time :
7-30 days based on different qty
Packaging Details :
Rolls, Wooden Drums, Steel Drums, Reels or customized
Voltage :
26/35kV
Insulation :
XLPE
Jacket :
PVC
No of Core :
1,3
Armouring :
Steel Tape or Steel Wire
Conductor :
Aluminium
Description
MV 3.6-35kV XLPE Insulated Electrical Wire NA2XSY NA2XSY for Electrical Transmission
NA2XSY NA2XSY for Electrical Transmission
Application

The NA2XSY XLPE insulated electrical wire is a medium-voltage power cable designed for reliable power transmission and distribution in various demanding environments.
Suitable for power transmission and distribution lines with a rated power frequency voltage of ‌3.6/6kV to 26/35kV‌.
Typical Applications‌:
Industrial Power Distribution‌: Used in factories, mines, and chemical plants for internal power distribution systems.
Urban Power Grids‌: Employed in city power networks for reliable electricity supply.
Renewable Energy Systems‌: Applied in wind farms and photovoltaic (PV) power stations for power output lines.
Underground Infrastructure‌: Used in subway tunnels and other underground facilities for power supply.

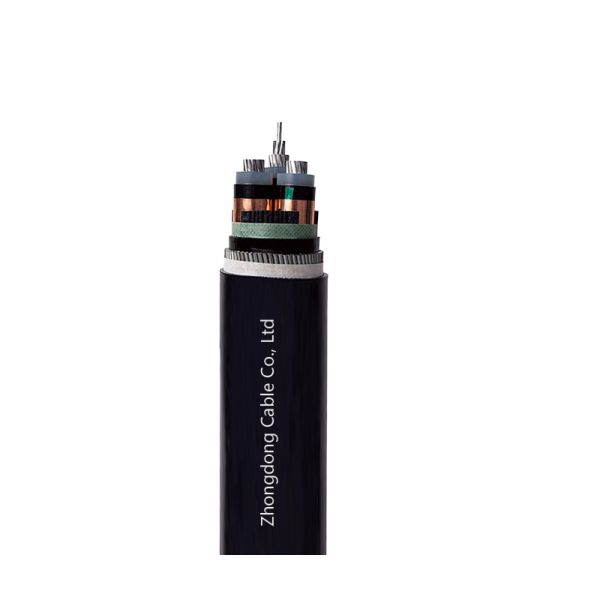

Construction
  • Conductor: Class 2 Aluminium conductor
  • Conductor Shield: Semi-conductive shield
  • Insulation: Cross-Linked Polyethylene (XLPE)
  • Insulation Shield: Semi-conductive shield
  • Metal Shielding Layer: Copper tape: 50-400mm², Copper Wire: 500-800mm²
  • Binder Tape: Non-woven fabrics
  • Isolation Sleeve: Polyvinyl chloride (PVC)
  • Armour: Non-magnetic steel Tape
  • Outer Sheath: Polyvinyl chloride (PVC)
Characteristics
  • Voltage Rating Uo/U:

    3.6/6(7.2)kV, 6/6(7.2)kV, 6/10(12)kV, 8.7/10(12kV), 8.7/15(17.5)kV, 12/20(24)kV,18/30(36)kV, 21/35(40.5)kV, 26/35(40.5)kV

  • Maximum Operating Temperature: +90℃
  • Operating Ambient Temperature: -20℃ to +45℃
  • Cable Laying Temperature: Not less than 0℃ (preheating required below 0℃)
  • Minimum Bending Radius: Single Core 15D Three Core 12D
Specifications

Specs
mm²

Conductor diameter
mm

Outer thickness of insulation
±1.0mm

Approx outer diameter of cable
mm

Approx cable weight
kg/km

Specs
mm²

Conductor diameter
mm

Outer thickness of insulation
±1.0mm

Approx outer diameter of cable
mm

Approx cable weight
kg/km

1×50

7.6±0.2

31.2

41.2

2192

3×50

7.6±0.2

31.2

833

7350

1×70

9.2±0.2

32.8

43.0

2376

3×70

9.2±0.2

32.8

86.9

7989

1×95

10.9±0.2

34.5

44.7

2554

3×95

10.9±0.2

34.5

903

8633

1×120

12.2±0.2

35.8

46.1

2738

3×120

12.2±0.2

35.8

93.6

9314

1×150

13.6±0.2

37.2

47.7

2939

3×150

13.6±0.2

37.2

96.8

10003

1×185

15.2±0.2

38.8

49.5

3182

3×185

15.2±0.2

38.8

100.6

10803

1×240

17.4±0.2

41.0

51.7

3493

3×240

17.4±0.2

41.0

105.8

11996

1×300

19.5±0.2

43.1

54.1

3855

3×300

19.5±0.2

43.1

110.4

13154

1×400

22.0±0.2

45.6

56.8

4349

3×400

22.0±0.2

45.6

117.8

14927

1×500/35

24.8±0.2

49.2

63.1

5275

3×500/35

24.8±0.2

49.2

129.7

18186

1×630/35

28.2±0.2

52.6

66.9

5949

3×630/35

28.2±0.2

52.6

137.8

20526

1×800/35

34.0±0.2

58.4

72.8

6872


This table shows 26/35kV, contact us for more voltage options
