110kV Distribution Networks High Voltage Power Cable CU/XLPE/CWS/STA/PE
110kV Distribution Networks High Voltage Power Cable CU/XLPE/CWS/STA/PE
Specifications
Brand Name :
630mm2 High Voltage Power Cable
Model Number :
95mm2 120mm2 150mm2 etc.
Certification :
IEC 60840
Place of Origin :
Hebei，China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
,L/C,T/T
Supply Ability :
100KM/Week
Delivery Time :
10days
Packaging Details :
Wooden Drum
Insulation Material :
xlpe
Conductor Material :
Aluminium or Copper
Type :
High Voltage
Standard :
GB12706,GB12666,IEC60840,IEC60331
Application :
Construction
Jacket :
PVC or PE
Description

110kV Distribution Networks High Voltage Power Cable CU/XLPE/CWS/STA/PE


APPLICATION


This cable is designed for ‌high-reliability, high-safety power transmission‌ in complex environments, particularly for fixed installations in demanding conditions.


CONSTRUCTION

Conductor:Copper conductor

Conductor shield:Semi-conductive shield

Insulation:Cross-Linked Polyethylene(XLPE)

Insulation shield:Semi-conductive shield

Metal shielding layer: Copper Wire

Binder tape: Non-woven fabrics

Armour: Aluminum laminated tape

Outer sheath:PE


CHARACTERISTICS


Voltage Rating (Uo/U)(Um)64/110kV(123kV)

Temperature RatingOperating Temperature: -30°C to +90°C

Short Circuit Temperature: +250°C

Overload Temperature:+130'C(100h per year maximum)

Minimum Installation Temperature: -20°C


PARAMETERS


Conductor

Insulation

Nominal Area of Copper Wires

Outer Jacket

Nominal
 Area

Max.DC
resistance at 20℃

Max.AC
resistance at 90℃

Nominal Thickness of Insulation
 Layers

Nominal
Thickness

Approx.
Overall
Diameter

Approx.
Overall
Weight

Cond.
Screen

XLPE

Ins.
Screen

mm²

Ω/km

Ω/km

mm

mm

mm

mm²

mm

mm

kg/m

300 R

0.0601

0.0787

1.2

15

1

95

3.5

67.9

6.47

400 R

0.047

0.0627

1.2

15

1

95

3.5

70.5

7.41

500 R

0.0366

0.0502

1.2

15

1

95

4

74.9

8.79

630 R

0.0283

0.0407

1.2

15

1

95

4

78.4

10.21

800 R

0.0221

0.0338

1.2

15

1

95

4

82.4

12.17

1000 S

0.0176

0.024

1.5

15

1.2

95

4

92.1

14.74

1200 S

0.0151

0.0211

1.5

15

1.2

95

4.5

97.1

17

1400 S

0.0129

0.0185

1.5

15

1.2

95

4.5

99.1

18.99

1600 S

0.0113

0.0168

1.5

15

1.2

95

4.5

103.1

20.72

2000 S

0.009

0.0143

1.5

15

1.2

95

4.5

108.1

24.42

2500 S

0.0072

0.0125

1.5

15

1.2

95

4.5

116.1

29.99

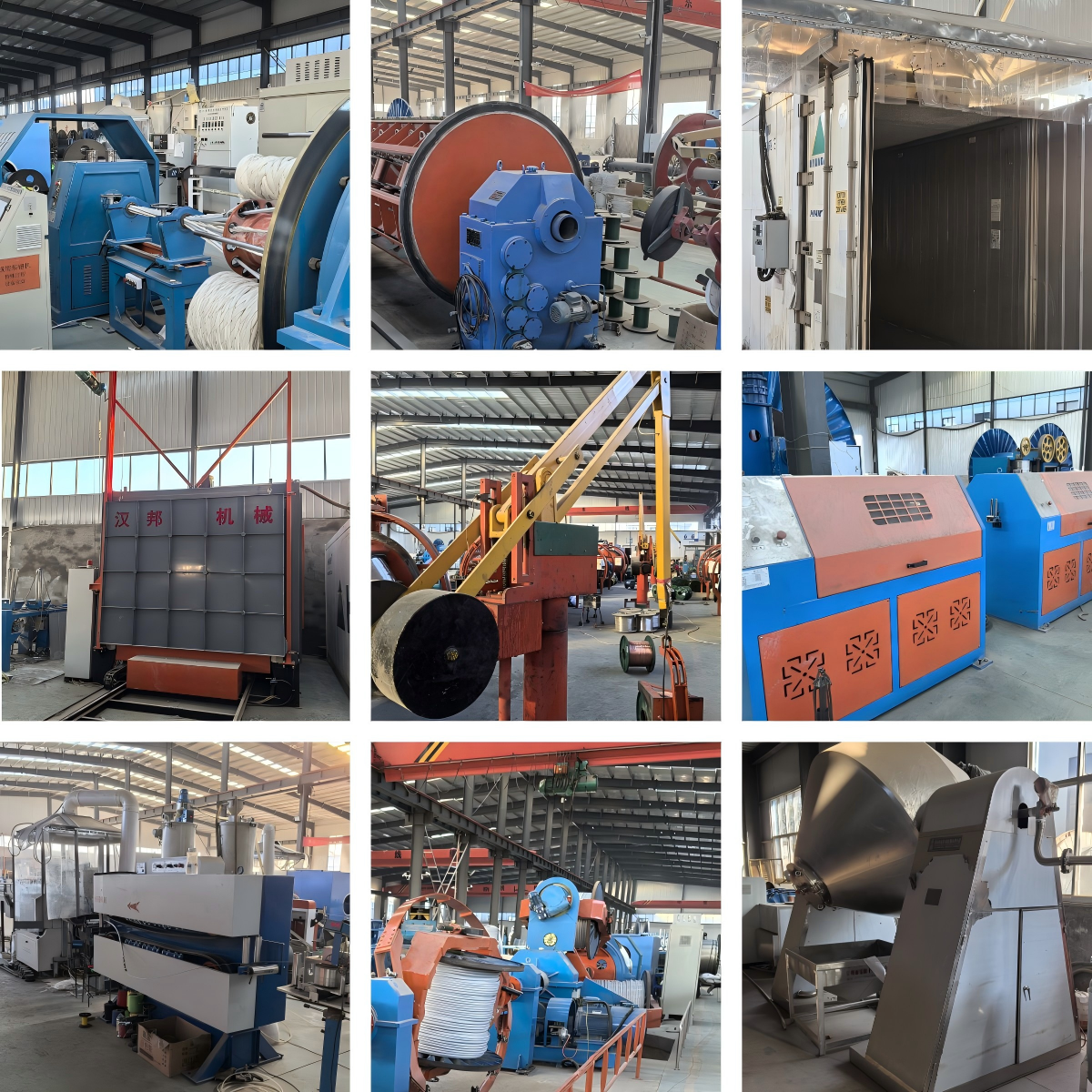

OUR FACTORY


110kV Distribution Networks High Voltage Power Cable CU/XLPE/CWS/STA/PE

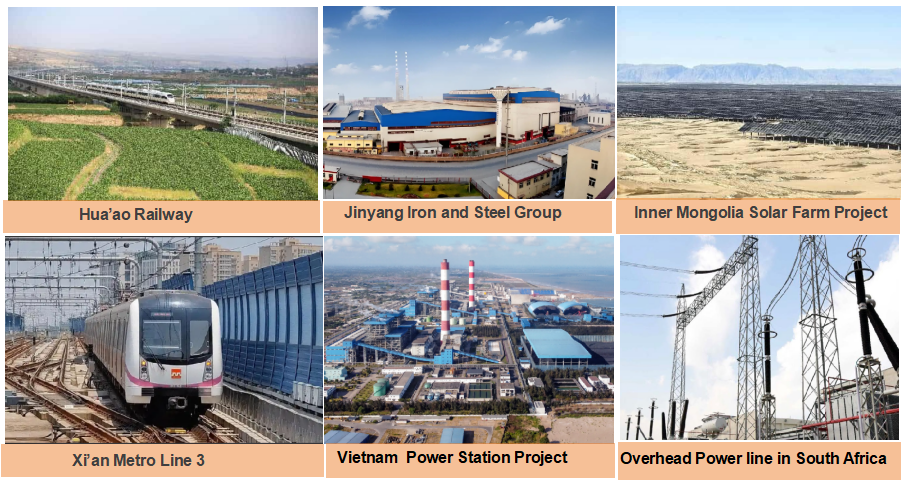

APPLICATION


110kV Distribution Networks High Voltage Power Cable CU/XLPE/CWS/STA/PE


FAQ

Q: Do you offer cable customization services?

A: Yes. We support custom logo printing and specification adjustments (core count, conductor size, materials, etc.), all compliant with international standards.

Q: What international certifications do your cables have?

A: Our cables hold CE, ISO 9001, RoHS, and IEC certifications. Regional certifications (UL, SASO, etc.) are also available on request.

Q: What is the minimum order quantity (MOQ)?

A: MOQ is 1,000 meters for standard low-voltage industrial cables. Flexible negotiation is allowed for custom orders.

Q: What is the production lead time?

A: 7–30 working days for standard orders; 25–35 working days for customized ones (logo, special materials).

Q: Can I get free samples?

A: Free 5m standard samples are provided (freight collect). Custom samples require a refundable fee.

Q: What payment terms do you accept?

A: We accept T/T (30% deposit, 70% balance before shipment), L/C at sight. Flexible terms for long-term partners.

Q: How are export cables packaged?

Cables are wound on wooden/plastic reels, wrapped in waterproof film, and labeled with product specs and shipping marks.

Q: How do you ensure cable quality?

A: Full-process quality control (raw material, in-production, final testing) is implemented. Test report is provided for all orders.
