Armoured Fire Resistant Cable 3+1 Core Cu/XLPE/PVC/SWA/PVC for Underground Application
Armoured Fire Resistant Cable 3+1 Core Cu/XLPE/PVC/SWA/PVC for Underground Application
Specifications
Brand Name :
Halogen-Free Flame-Resistant Cable
Certification :
ISO9001, CE, CCC, RoHS, VDE, cUL, CSA
Place of Origin :
Hebei，China
MOQ :
To be negotiated
Price :
To be negotiated
Payment Terms :
,L/C,T/T
Supply Ability :
100KM/Week
Delivery Time :
7-30 days based on different qty
Packaging Details :
Rolls, Wooden Drums, Steel Drums, Reels or customized
Usage :
Access Control System
Insulation :
XLPE PE PVC
Voltage :
0.6/1kV
Length :
Customized
Conductor Material :
Copper
Packing :
Neutral Carton Packing or Customized
Description

Armoured Fire Resistant Cable 3+1 Core Cu/XLPE/PVC/SWA/PVC for Underground Application



Description
Electrical power cable with copper conductors, XLPE insulation, PVC bedding, galvanized steel wires armour (SWA) and PVC outer sheath

Application
Multi-core PVC cable with steel wire armour (SWA). Power and auxiliary control cables for use in power networks, underground, outdoor and indoor applications and for use in cable ducting.

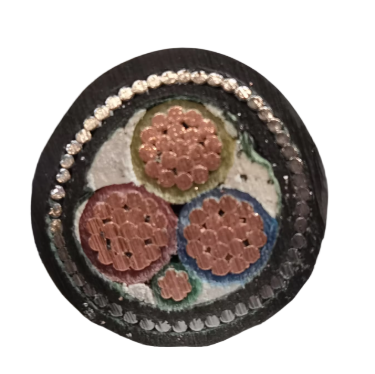

Cable Construction
1.Conductor : Compact stranded copper conductor
2.Insulation : XLPE(cross-linked polyethylene) rated at 90 °C
3.Inner sheath :PVC
4.Armored :Galvanized Steel Wire.
5.Sheath : PVC or FR-PVC

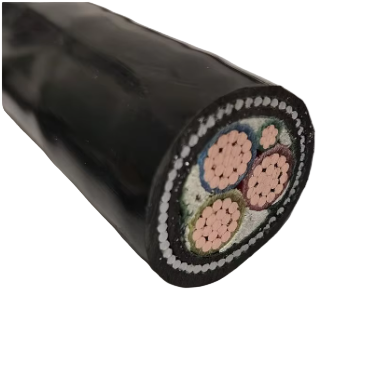

Armoured Fire Resistant Cable 3+1 Core Cu/XLPE/PVC/SWA/PVC for Underground ApplicationArmoured Fire Resistant Cable 3+1 Core Cu/XLPE/PVC/SWA/PVC for Underground Application


Specifications


Nominal cross-sectional area
Insulation thickness
Sheath thickness
Approx.overall
dimaeter of cable
Approx. weight
of cable(kg/km)
mm2
mm
mm
mm

3x2.5+1x1.5
0.7
1.8
16.6
472.3
3x4+1x2.5
0.7
1.8
18.9
698.4
3x6+1x4
0.7
1.8
20.3
820.1
3x10+1x6
0.7
1.8
22.8
1047.3
3x16+1x10
0.7
1.8
26
1502.4
3x25+1x16
0.9
1.8
29
1964.7
3x35+1x16
0.9
1.9
31.1
2328.7
3x50+1x25
1
2
35.3
3150
3x70+1x35
1.1
2.1
39.6
4064.9
3x95+1x50
1.1
2.3
44.1
5210.5
3x120+1x70
1.2
2.5
50
6788.2
3x150+1x70
1.4
2.6
53.7
7903.1
3x185+1x95
1.6
2.7
58.9
9578.3
3x240+1x120
1.7
2.9
65.5
11849.5
3x300+1x150
1.8
3.1
71.2
14266
3x400+1x185
2
3.4
80.6
18912.6

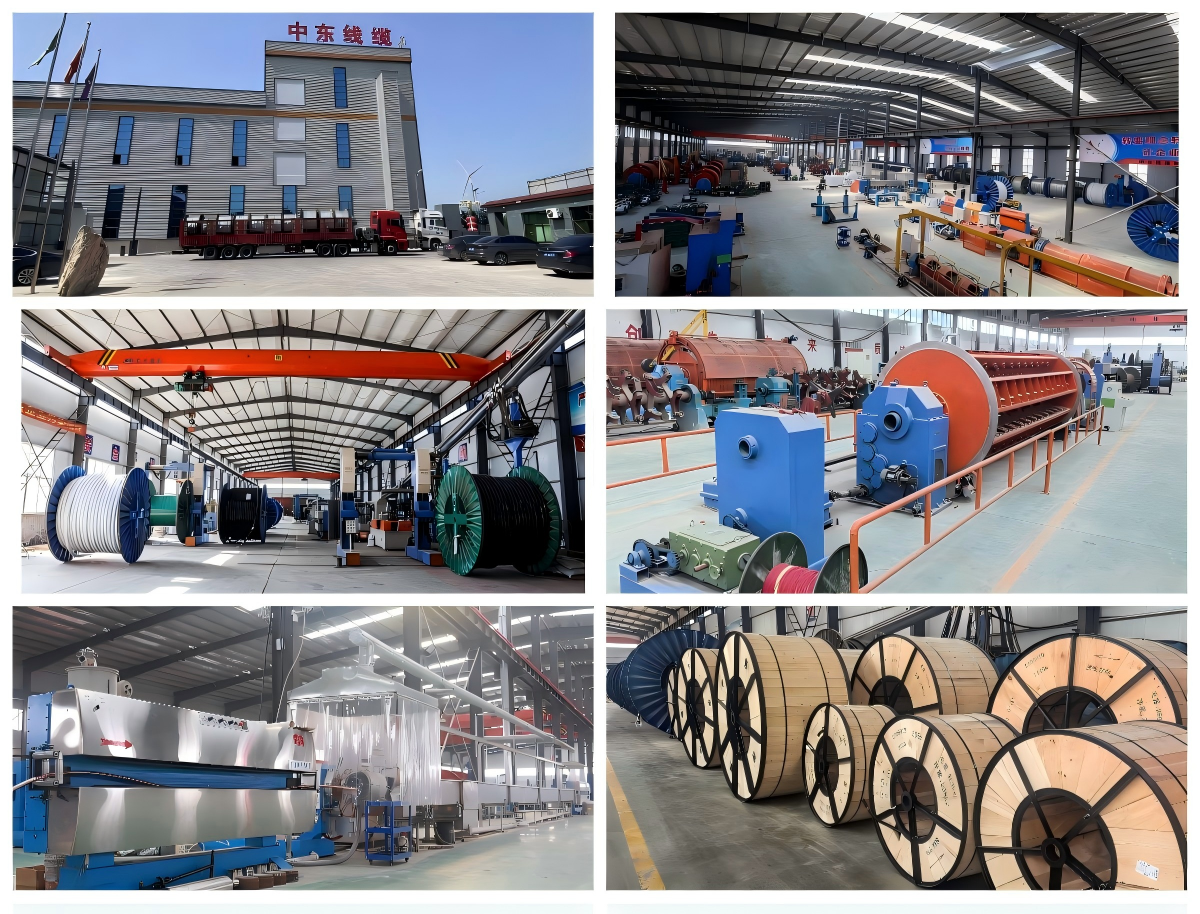

Factory:



Armoured Fire Resistant Cable 3+1 Core Cu/XLPE/PVC/SWA/PVC for Underground Application

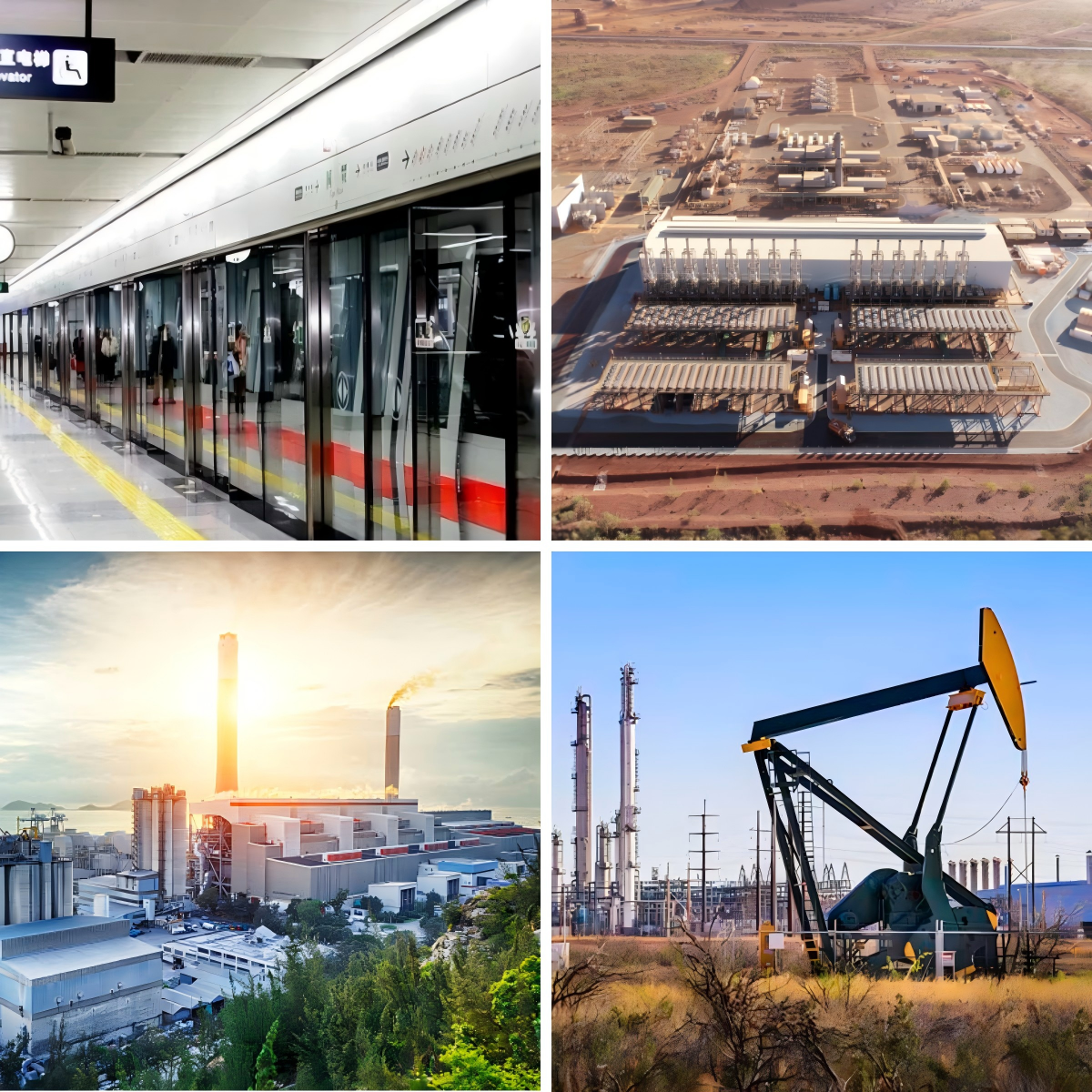

Application:



Armoured Fire Resistant Cable 3+1 Core Cu/XLPE/PVC/SWA/PVC for Underground Application



Packages:


Armoured Fire Resistant Cable 3+1 Core Cu/XLPE/PVC/SWA/PVC for Underground Application



FAQ


1.What is our payment term?

Our payment term is T/T 30% advanced, then the balance paid before picking up the goods or L/C at sight.


2.What is the lead time?
The lead time usually is 7– 30 working days.

3.What is the package of the cable?
The package is usually wooden drum or steel wooden drum or coil.also according to customer’s requirement.

4.Could we provide the free sample for customer?
Sure, we provide the free sample for customer to checking.

5.Does your company accept OEM production?
Yes, could print your company name.

Please feel free to leave your requirement, We will reply you in 12 hours.
