IEC 60502-2 XLPE Insulated Aluminium Armoured 3X300mm 3X150mm Flame Retardant Power Cable
IEC 60502-2 XLPE Insulated Aluminium Armoured 3X300mm 3X150mm Flame Retardant Power Cable
Specifications
Brand Name :
Aluminium Power Cable
Certification :
IEC,CE,ISO,TUV
Place of Origin :
Hebei，China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
,L/C,T/T
Supply Ability :
100KM/Week
Delivery Time :
7-30 days based on different qty
Packaging Details :
Rolls, Wooden Drums, Steel Drums, Reels or customized
Voltage :
26/35kV
Insulation :
XLPE
Jacket :
PVC
No of Core :
1,3
Armouring :
Steel Tape or Steel Wire
Conductor :
Aluminium
Description
IEC 60502-2 XLPE Insulated Aluminium Armoured 3X300mm 3X150mm Flame Retardant Power Cable


Applications

The cables arewidely used in places such as wind farms and solar power stations to meet the power transmission needs of these places ‌


Main Technical Properties

1. DC resistance of conductor at 20°C: not exceeding 0.1 Ω/km;

2. 4h Power Frequency Voltage Test (4U₀): No breakdown occurred;

3. 50Hz AC Withstand Voltage Test: 65 kV for 30 min; No breakdown occurred;

4. Partial Discharge Test: Under 1.73U₀, no discharge exceeding the test sensitivity of 10 pC was detected.

Usage Requirements‌

1. Minimum bending radius: not less than 12 times the cable outer diameter;

2. Long-term allowable operating temperature of the conductor: +90 °C;

3. Minimum Installation Ambient Temperature: 0 °C.


Specifications

Specs
mm²

Conductor diameter
mm

Outer thickness of insulation
±1.0mm

Approx outer diameter of cable
mm

Approx cable weight
kg/km

Specs
mm²

Conductor diameter
mm

Outer thickness of insulation
±1.0mm

Approx outer diameter of cable
mm

Approx cable weight
kg/km

1×50

7.6±0.2

31.2

41.2

2192

3×50

7.6±0.2

31.2

833

7350

1×70

9.2±0.2

32.8

43.0

2376

3×70

9.2±0.2

32.8

86.9

7989

1×95

10.9±0.2

34.5

44.7

2554

3×95

10.9±0.2

34.5

903

8633

1×120

12.2±0.2

35.8

46.1

2738

3×120

12.2±0.2

35.8

93.6

9314

1×150

13.6±0.2

37.2

47.7

2939

3×150

13.6±0.2

37.2

96.8

10003

1×185

15.2±0.2

38.8

49.5

3182

3×185

15.2±0.2

38.8

100.6

10803

1×240

17.4±0.2

41.0

51.7

3493

3×240

17.4±0.2

41.0

105.8

11996

1×300

19.5±0.2

43.1

54.1

3855

3×300

19.5±0.2

43.1

110.4

13154

1×400

22.0±0.2

45.6

56.8

4349

3×400

22.0±0.2

45.6

117.8

14927

1×500/35

24.8±0.2

49.2

63.1

5275

3×500/35

24.8±0.2

49.2

129.7

18186

1×630/35

28.2±0.2

52.6

66.9

5949

3×630/35

28.2±0.2

52.6

137.8

20526

1×800/35

34.0±0.2

58.4

72.8

6872


This table shows 26/35kV, contact us for more voltage options

About us

IEC 60502-2 XLPE Insulated Aluminium Armoured 3X300mm 3X150mm Flame Retardant Power Cable

Application

IEC 60502-2 XLPE Insulated Aluminium Armoured 3X300mm 3X150mm Flame Retardant Power Cable
Our ProjectsIEC 60502-2 XLPE Insulated Aluminium Armoured 3X300mm 3X150mm Flame Retardant Power Cable
Our Partners
IEC 60502-2 XLPE Insulated Aluminium Armoured 3X300mm 3X150mm Flame Retardant Power Cable IEC 60502-2 XLPE Insulated Aluminium Armoured 3X300mm 3X150mm Flame Retardant Power Cable
Frequently Asked Questions
What cable specifications do you offer?
We supply power cables, solar cables, ABC cables, bare conductor, housing wire, instrument and control cables and more.
Are your cables internationally certified?
Yes, our products meet IEC, CE and other regional standards.
What's the lead time for regular orders?
7-30 working days, negotiable for urgent requests.
Can you provide custom cable solutions?
Yes, customized specs, lengths and colors are available.
How do you ensure the quality before delivery?
100% full inspection, with test reports provided.

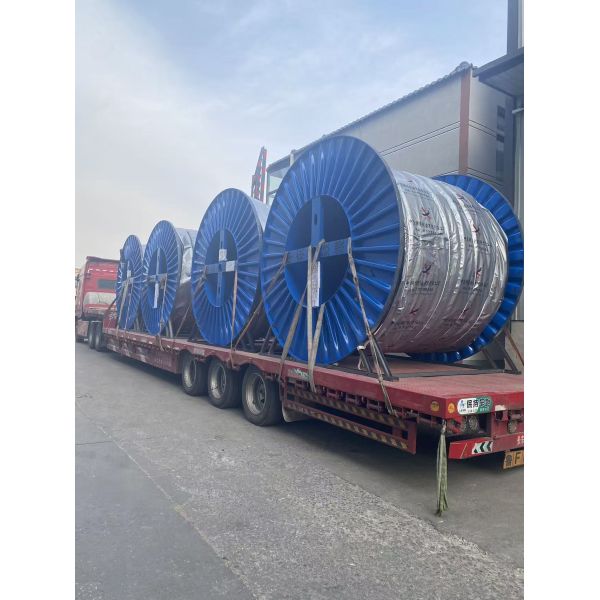

How are cables packaged for shipment?
