Aluminium Conductor XLPE Power Cable with Copper Screen PVC Sheath NA2XSY NA2XSEY
Aluminium Conductor XLPE Power Cable with Copper Screen PVC Sheath NA2XSY NA2XSEY
Specifications
Brand Name :
XLPE Insulated Power Cable
Certification :
IEC,CE,ISO,TUV
Place of Origin :
Hebei，China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
,L/C,T/T
Supply Ability :
100KM/Week
Delivery Time :
7-30 days based on different qty
Packaging Details :
Rolls, Wooden Drums, Steel Drums, Reels or customized
Voltage :
0.6/1kV
Insulation :
XLPE
Jacket :
PVC
No of Core :
1-5
Armouring :
SWA AWA
Standard :
IEC60502-1
Description

Aluminium Conductor XLPE Power Cable with Copper Screen PVC Sheath NA2XSY NA2XSEY


Application

NA2XSY NA2XSEY aluminium conductor XLPE cables are mainly used for medium voltage power transmission and distribution, especially outdoor, underground, or industrial environments where electrical safety, screening, and long service life are critical.

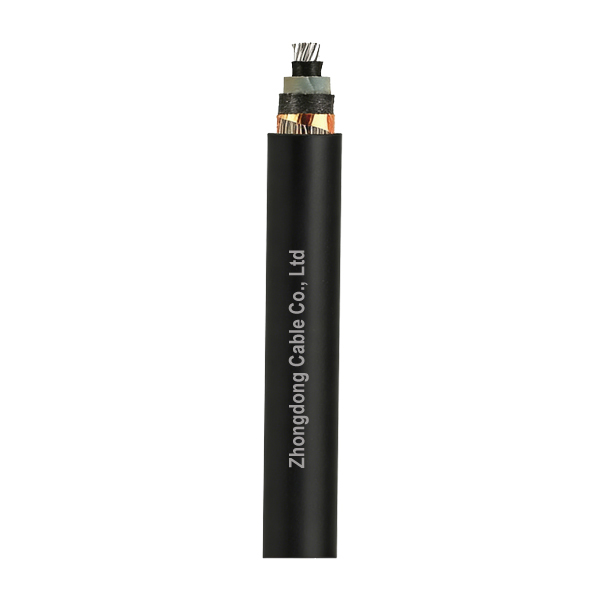

Construction

Conductor: Aluminium (good conductivity, lighter than copper)

Insulation: XLPE (cross-linked polyethylene) — high dielectric strength, heat-resistant, and long life

Screening: Copper tape or wire screen — reduces electromagnetic interference (EMI) and allows safe grounding of fault currents

Sheath: PVC outer sheath — mechanical protection, moisture resistance, flame retardant


Aluminium Conductor XLPE Power Cable with Copper Screen PVC Sheath NA2XSY NA2XSEYAluminium Conductor XLPE Power Cable with Copper Screen PVC Sheath NA2XSY NA2XSEY


Characteristic

Voltage Rating Uo/U: 3.6-40kV

Maximum operating temperature of conductor:+90℃

Operating ambient temperature: -15℃~+55℃

Cable laying temperature:Not less than 0℃(When the ambient temperature is below 0℃, the cable should be preheated.)

Minimum Bending Radius: Single Core 20D Three Core 15D (D is the actual outer diameter of the cable)


Standard

IEC60502-2 IEC60228


Specification


Single Core 6/10kV


Number of cores and mm²per conductor Outer diameter [mm] Copper index(kg/km) Weight(kg/km)
1x50 RM/16 25 182 719
1x70 RM/16 26 182 810
1x70 RM/35 27 394 1000
1x95 RM/16 28 182 921
1x120 RM/16 30 182 1022
1x150 RM/25 31 283 1209
1x185 RM/25 33 283 1351
1x240 RM/25 35 283 1561
1x300 RM/25 37 283 1771
1X400 RM/35 40 394 2184
1x500 RM/35 43 394 2517


CONTACTR US FOR MORE VOLATAGE SPECIFICATIONS

Aluminium Conductor XLPE Power Cable with Copper Screen PVC Sheath NA2XSY NA2XSEY

Aluminium Conductor XLPE Power Cable with Copper Screen PVC Sheath NA2XSY NA2XSEY

Aluminium Conductor XLPE Power Cable with Copper Screen PVC Sheath NA2XSY NA2XSEY

Aluminium Conductor XLPE Power Cable with Copper Screen PVC Sheath NA2XSY NA2XSEY


Aluminium Conductor XLPE Power Cable with Copper Screen PVC Sheath NA2XSY NA2XSEY

FAQ

Q1. How can I place order?
A: You can contact us by email about your order details, or place order online.

Q2. Does your company provide OEM&ODM services?
A: Of course, we can produce cables by your samples or technical drawings.

Q3. Does your company test all your goods before delivery?
A: Yes, we have 100% test before delivery.

Q4: Are you a cable and wire manufacturer?
--Yes, our company is an integrated set of industry and trade company.

Q5: Can you offer a discount on cables?
--Sure, the price is negotiable. We will definitely give a discount based on your annual order.

Q6: Can you offer free samples?
--Of course, according to your order quantity, we'd like to provide free sample.

Q7. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. Trade terms of EXW, FOB, CFR, CIF, L/C are available.
