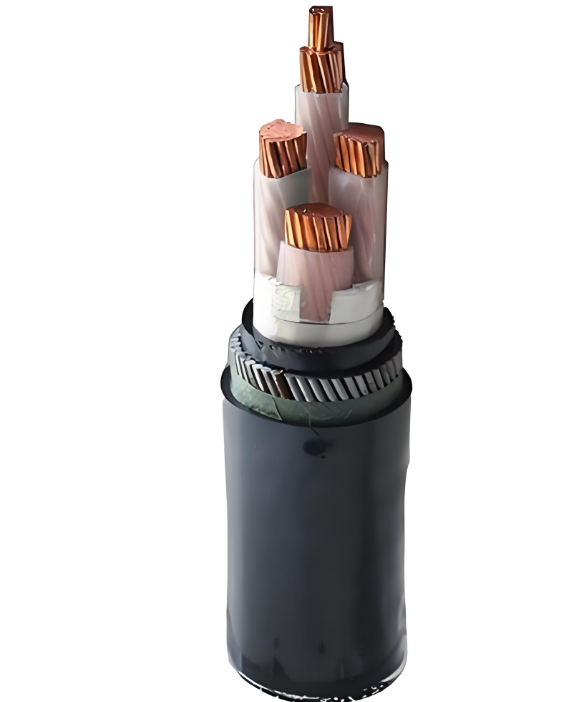

EAC Certificated PVC Insulated Power Cable 0.6/1kV CU/PVC/STA/PVC Underground Cable
EAC Certificated PVC Insulated Power Cable 0.6/1kV CU/PVC/STA/PVC Underground Cable
Specifications
Brand Name :
Zhongdong
Model Number :
NYY-J
Certification :
IEC,CE,ISO,TUV
Place of Origin :
Hebei，China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C,T/T
Supply Ability :
100KM/Week
Delivery Time :
7-30 days based on different qty
Packaging Details :
Rolls, Wooden Drums, Steel Drums, Reels or customized
Voltage :
0.6/ 1kV
Armoring :
No
Insulation :
PVC
Core :
Multi cores
Temperature range :
- 30℃ to + 70℃
Sheathed :
PVC
Description

EAC Certificated PVC Insulated Power Cable 0.6/1kV CU/PVC/STA/PVC Underground Cable


APPLICATION

This product is suitable for rated voltage not exceeding 0.6/1kV.In the line, for transmission and distribution of energy.

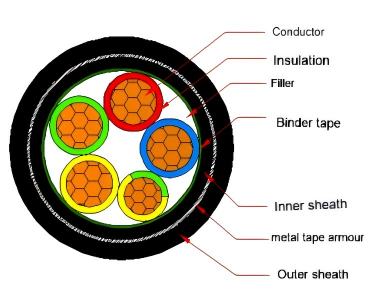

CONSTRUCTION

  • Conductor: Class 1/Class 2 stranded Copper conductor
  • Insulation: Polyvinyl chloride (PVC)
  • Filler(options) : Polypropylene mesh tearing rope
  • Inner sheath: Polyvinyl chloride (PVC)
  • Armour: Stainless steel tape(single core)galvanized steel tape(multi core)
  • Outer sheath: Polyvinyl chloride (PVC)

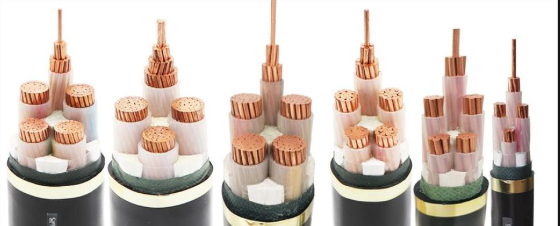

EAC Certificated PVC Insulated Power Cable 0.6/1kV CU/PVC/STA/PVC Underground CableEAC Certificated PVC Insulated Power Cable 0.6/1kV CU/PVC/STA/PVC Underground Cable





CHARACTERISTIC

  • Voltage Rating: Uo/U:0.6/1kV Um:1.2kV
  • Maximum operating temperature of conductor:+70℃
  • Operating ambient temperature: -20℃~+45℃
  • Cable laying temperature:Not less than 0℃(When the ambient temperature is below 0℃, the cable should be preheated.)
  • Minimum Bending Radius: Single core:15D multi core:12D


SPECIFICATIONS


Specs
mm²

Conductor diameter
mm

Nominal thickness of insulation
mm

Lining thickness

mm

Nominal thickness of steel tape

mm

Nominal thickness of sheath
mm

Approximate outer diameter of cable
mm

Approximate cable weight
kg/km

3×1.5

1.38

0.8

1.0

0.2

1.8

13.9

274

3×2.5

1.78

0.8

1.0

0.2

1.8

14.7

323

3×4

2.25

1.0

1.0

0.2

1.8

16.7

425

3×6

2.76

1.0

1.0

0.2

1.8

17.7

508

3×10

4.0

1.0

1.0

0.2

1.8

20.4

688

3×16

5.0

1.0

1.0

0.2

1.8

22.5

908

3×25

6.1

1.2

1.0

0.2

1.8

25.8

1271

3×35

7.2

1.2

1.0

0.2

1.8

28.4

1615

3×50

8.4

1.4

1.0

0.2

1.9

32.1

2093

3×70

10.0

1.4

1.2

0.2

2.0

36.2

2830

3×95

12.0

1.6

1.2

0.5

2.2

43.1

4202

3×120

13.0

1.6

1.2

0.5

2.3

45.4

4986

3×150

14.9

1.8

1.4

0.5

2.5

51.2

6139

3×185

16.5

2.0

1.4

0.5

2.6

55.8

7423

3×240

18.4

2.2

1.6

0.5

2.8

61.6

9441

3×300

21.0

2.4

1.6

0.5

3.0

68.5

11614

3×400

23.4

2.6

1.8

0.5

33

75.6

14589

Contact us for more information

OUR FACTORY

EAC Certificated PVC Insulated Power Cable 0.6/1kV CU/PVC/STA/PVC Underground Cable


PROJECTS

EAC Certificated PVC Insulated Power Cable 0.6/1kV CU/PVC/STA/PVC Underground Cable


PARTNER

EAC Certificated PVC Insulated Power Cable 0.6/1kV CU/PVC/STA/PVC Underground CableEAC Certificated PVC Insulated Power Cable 0.6/1kV CU/PVC/STA/PVC Underground Cable



DELIVERY AND PACAKGE


EAC Certificated PVC Insulated Power Cable 0.6/1kV CU/PVC/STA/PVC Underground Cable


FAQ

Is the cable suitable for underground installation?‌
Yes, its PVC sheath provides excellent moisture and mechanical protection for underground use

Does the cable support flame-retardant properties?‌
Flame-retardant variants are available for high-risk areas like tunnels and power stations

Can the cable be used in coastal areas?‌
Yes, its PVC insulation resists saltwater corrosion, making it ideal for coastal projects

What is the expected lifespan of the cable?‌
Designed for a safe working life of at least 20 years under standard conditions

Are custom lengths and configurations possible?‌
Yes, manufacturers offer customization for voltage, conductor size, and sheath color

How should the cable be stored before installation?‌
Store in a dry, shaded area to prevent UV degradation and avoid bending beyond its minimum radius.
