EAC Certificated XLPE Insulated 8.7kV 15kV 25mm2-800mm2 Flame-retardant Power Cable
EAC Certificated XLPE Insulated 8.7kV 15kV 25mm2-800mm2 Flame-retardant Power Cable
EAC Certificated XLPE Insulated 8.7kV 15kV 25mm2-800mm2 Flame-retardant Power Cable
EAC Certificated XLPE Insulated 8.7kV 15kV 25mm2-800mm2 Flame-retardant Power Cable
EAC Certificated XLPE Insulated 8.7kV 15kV 25mm2-800mm2 Flame-retardant Power Cable
EAC Certificated XLPE Insulated 8.7kV 15kV 25mm2-800mm2 Flame-retardant Power Cable
EAC Certificated XLPE Insulated 8.7kV 15kV 25mm2-800mm2 Flame-retardant Power Cable
EAC Certificated XLPE Insulated 8.7kV 15kV 25mm2-800mm2 Flame-retardant Power Cable
Specifications
Brand Name :
Zhongdong
Certification :
ISO9001, CE, CCC, RoHS, VDE, cUL, CSA
Place of Origin :
Hebei，China
MOQ :
To be negotiated
Price :
To be negotiated
Payment Terms :
,L/C,T/T
Supply Ability :
100KM/Week
Delivery Time :
7-30 days based on different qty
Packaging Details :
Rolls, Wooden Drums, Steel Drums, Reels or customized
Insulation :
XLPE
Voltage :
0.6/1kV
Conductor Material :
Copper
Application :
Overhead or Underground,Pipe laying, trench laying, tunnel laying, vertical shaft and bridge laying
No of Core :
1,2,3,4,5
Features :
Fire rated
Description

EAC Certificated XLPE Insulated 8.7kV 15kV 25mm2-800mm2 Flame-retardant Power Cable



APPLICATION

Suitable for power supply lines with flame retardant requirements, such as urban underground power grids, power station outgoing lines, and internal power lines of industrial and mining enterprises.

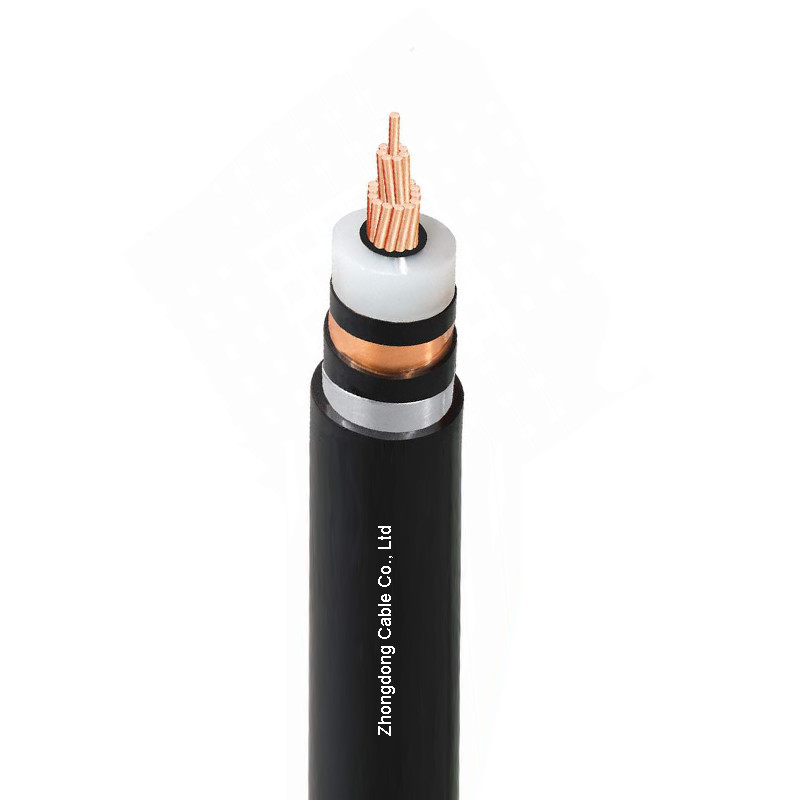

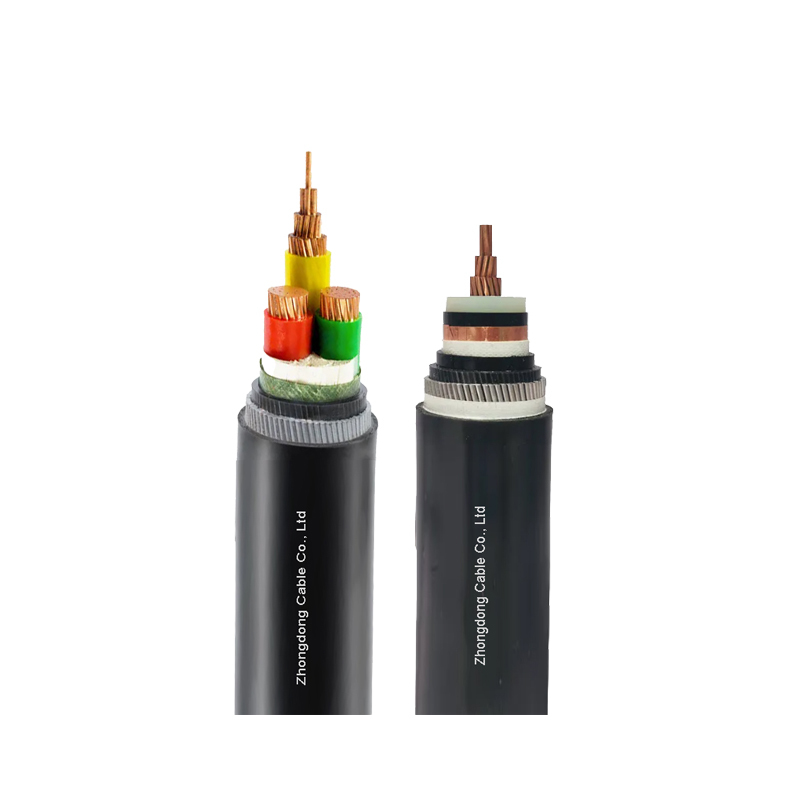

CONSTRUCTION


  • Conductor: Tightly press circular conductor
  • Conductor shield: Semi conductive shielding material (below 500mm ²) Semi conductive tape+semi conductive shielding material (500mm ² and above)
  • Insulation: XLPE
  • Insulation shielding: Peelable semiconducting shielding material
  • Metal shielding layer: Copper Tape Copper wire (35kV, 500m ² and above)
  • Filler: Non hygroscopic filling rope
  • Binder Tape: Non hygroscopic straps
  • Armor: 1 core: stainless steel tape 3 core: galvanized steel tape
  • Inner and outer sheaths: 90 ℃ flame retardant polyvinyl chloride




EAC Certificated XLPE Insulated 8.7kV 15kV 25mm2-800mm2 Flame-retardant Power CableEAC Certificated XLPE Insulated 8.7kV 15kV 25mm2-800mm2 Flame-retardant Power CableEAC Certificated XLPE Insulated 8.7kV 15kV 25mm2-800mm2 Flame-retardant Power CableEAC Certificated XLPE Insulated 8.7kV 15kV 25mm2-800mm2 Flame-retardant Power Cable



CHARACTERISTICS


  • Voltage Rating Uo/U: 8.7/10(12)kV,8.7/15(17.5)kV
  • Maximum operating temperature of conductor:+90℃
  • Operating ambient temperature: -15℃~+55℃
  • Cable laying temperature:Not less than 0℃(When the ambient temperature is below 0℃, the cable should be preheated.)
  • Minimum Bending Radius: Single core:15D Three Core: 12D (D is the actual outer diameter of the cable)




SPECIFICATIONS



Specs mm²

Conductor diameter mm

Nominal thickness of insulation ±1.0mm

Approx outer diameter of cable mm

Approx cable weight kg/km

Specs mm²

Conductor diameter mm

Nominal thickness of insulation ±1.0mm

Approx outer diameter of cable

mm

Approx cable weight kg/km

1×25

5.6±0.1

17.2

24.1

926

3×25

5.6±0.1

17.2

47.3

3168

1×35

6.6±0.2

18.2

25.3

1065

3×35

6.6±0.2

18.2

49.7

3609

1×50

7.6±0.2

19.2

26.3

1215

3×50

7.6±0.2

19.2

52.2

4152

1×70

9.2±0.2

20.8

28.0

1478

3×70

9.2±0.2

20.8

55.8

4988

1×95

10.9±0.2

22.5

29.7

1781

3×95

10.9±0.2

22.5

60.0

6051

1×120

12.2±0.2

23.8

31.2

2066

3×120

12.2±0.2

23.8

63.1

6976

1×150

13.6±0.2

25.2

32.6

2370

3×150

13.6±0.2

25.2

66.3

8038

1×185

15.2±0.2

26.8

35.7

3105

3×185

15.2±0.2

26.8

70.1

9343

1×240

17.4±0.2

29.0

38.0

3744

3×240

17.4±0.2

29.0

75.4

11343

1×300

19.5±0.2

31.1

40.3

4412

3×300

19.5±0.2

31.1

81.6

14262

1×400

22.0±0.2

33.6

43.2

5297

3×400

22.0±0.2

33.6

87.5

17106

1×500

24.8±0.2

37.2

47.1

6520

3×500

24.8±0.2

37.2

95.8

21121

1×630

28.2±0.2

40.6

50.7

7997

3×630

28.2±0.2

40.6

104.0

25921

1×800

33.7±0.2

46.1

56.5

10048





Contact us for more details

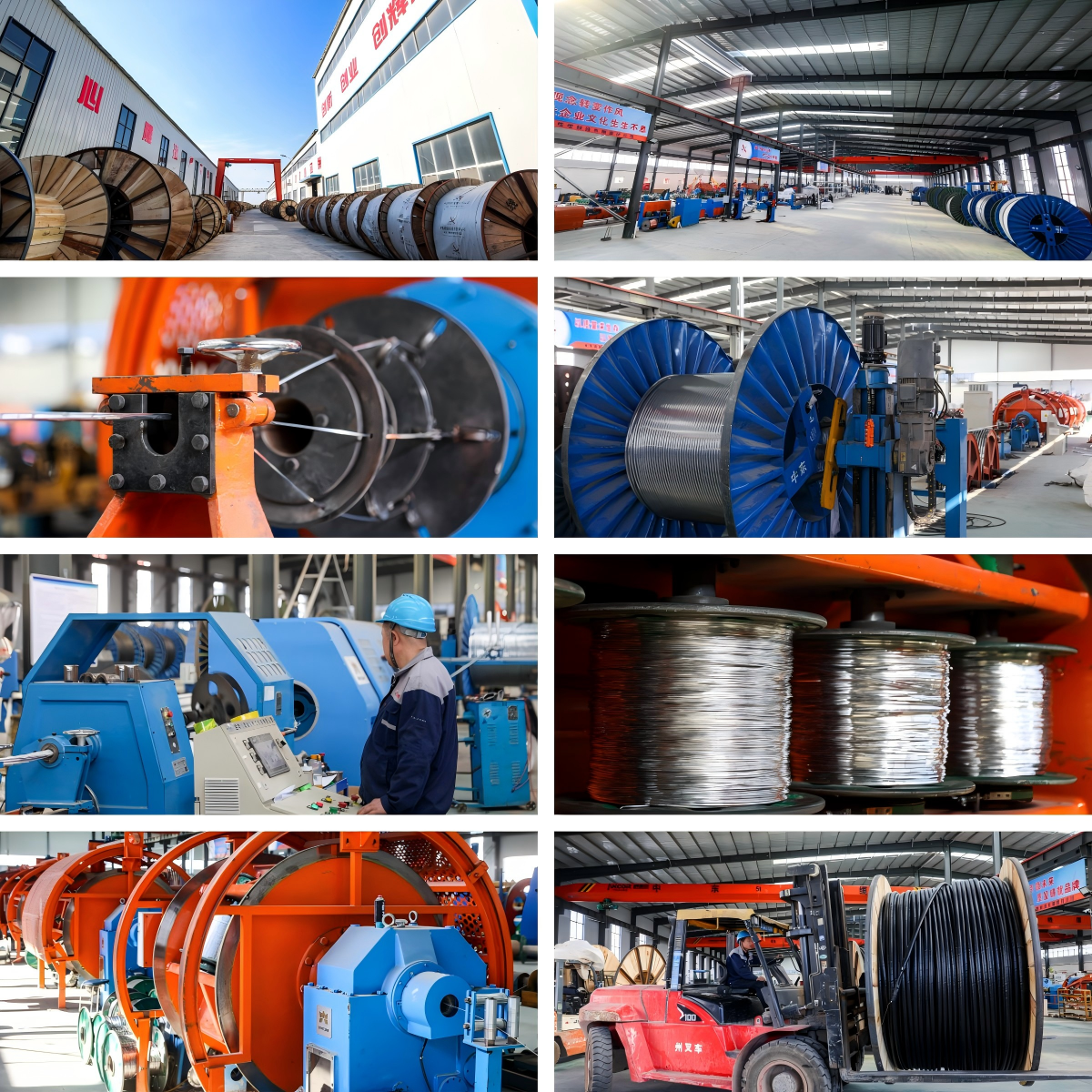

OUR FACTORY


EAC Certificated XLPE Insulated 8.7kV 15kV 25mm2-800mm2 Flame-retardant Power Cable


PROJECTS


EAC Certificated XLPE Insulated 8.7kV 15kV 25mm2-800mm2 Flame-retardant Power Cable

PARTNERS


EAC Certificated XLPE Insulated 8.7kV 15kV 25mm2-800mm2 Flame-retardant Power CableEAC Certificated XLPE Insulated 8.7kV 15kV 25mm2-800mm2 Flame-retardant Power Cable


WHY US


EAC Certificated XLPE Insulated 8.7kV 15kV 25mm2-800mm2 Flame-retardant Power Cable



FAQ

Q: What does EAC certification mean for these cables?
A: EAC certification confirms compliance with Eurasian Economic Union (EAEU) technical regulations, ensuring the cables meet safety and performance standards for member countries (Russia, Kazakhstan, etc.).
Q. Why are these cables flame-retardant?
A: Flame-retardant additives in the insulation and jacket materials prevent rapid flame spread in case of fire, meeting IEC 60332-1/2 standards.
Q:. What applications suit 8.7kV vs 15kV cables?
A: 8.7kV: Industrial plants, medium-range power distribution; 15kV: Urban grids, high-load substation connections
Q. How does conductor size (25-800mm²) affect performance?
A: Larger cross-sections (e.g., 800mm²) reduce resistance, enabling higher current capacity (up to 1,000A) for long-distance transmission.
Q: Are these cables suitable for underground installation?
A: Yes, when equipped with armored layers (e.g., steel wire armor), they resist mechanical damage and moisture in underground ducts.
Q. What bending radius is recommended during installation?
A: Minimum bending radius is 12× cable diameter for unarmored and 15× for armored versions to avoid insulation stress.
Q. Do these cables require special maintenance?
A: No, XLPE insulation is moisture-resistant and requires only periodic thermal inspections via infrared scanning.
Q. What documentation is needed for EAC customs clearance?
• EAC certificate of conformity
• Test reports (voltage withstand, flame retardancy)
• Technical passport with HS code 8544.49.10
