Copper Braided Screened Control Cable with PVC Insulation and Sheath for Multi-core Applications
Copper Braided Screened Control Cable with PVC Insulation and Sheath for Multi-core Applications
Copper Braided Screened Control Cable with PVC Insulation and Sheath for Multi-core Applications
Copper Braided Screened Control Cable with PVC Insulation and Sheath for Multi-core Applications
Copper Braided Screened Control Cable with PVC Insulation and Sheath for Multi-core Applications
Copper Braided Screened Control Cable with PVC Insulation and Sheath for Multi-core Applications
Specifications
Brand Name :
Braided Control Cable
Certification :
ISO9001, CE, CCC, RoHS, VDE, cUL, CSA
Place of Origin :
Hebei，China
MOQ :
To be negotiated
Price :
To be negotiated
Payment Terms :
,L/C,T/T
Supply Ability :
100KM/Week
Delivery Time :
7-30 days based on different qty
Packaging Details :
Rolls, Wooden Drums, Steel Drums, Reels or customized
Model Number :
DJYPVP-300/500V ZC-DJYPVP 300/500V
Interlock Armor Material :
Steel
Number Of Conductors :
2-50
Insulation Color :
Customized
Number Cores :
Multi-core
Rip Cord :
Optional
Certifications :
UL, CSA, RoHS
Description

Copper Braided Screened Control Cable PVC Insulated PVC Sheathed Computer Cable




Application


Copper Braided Screened Control Cable with PVC Insulation and Sheath (also known as Computer Cable) is widely used in industrial automation, instrumentation, and control systems to transmit low-voltage signals and data. Its applications include:

  • ‌Industrial Control Systems‌: Connecting sensors, actuators, and controllers in manufacturing plants.
  • ‌Building Automation‌: Wiring for HVAC, lighting, and security systems.
  • ‌Data Communication‌: Providing shielded connections for computer networks and telecommunications equipment.
  • ‌Power Distribution‌: Assisting in low-voltage power supply circuits within control panels.

The copper braid shielding ensures immunity to electromagnetic interference (EMI), while the PVC insulation and sheath offer durability and protection in harsh environments



Construction


Conductor: The first or second type of copper conductor

Insulation:Low density polyethylene (LLDPE)

Filler (optional):Filling rope

Separate shielding:Braided shielding (P)

Overall shield:Braided shielding (P)

Outer sheath:Polyvinyl chloride ST2 (PVC)




Cable performance



Voltage Rating Uo/U:300/500V

Maximum system voltage (Um):600V

Maximum operating temperature of conductor:+70℃

Operating ambient temperature: -20℃~+45℃

Cable laying temperature:Not less than 0℃(When the ambient temperature is below 0℃, the cable should be preheated.)

Minimum Bending Radius:During installation: 12D After installation: 10D




Specification




No of Pair

No of Core

Section

Mm2

Insulation thickness

mm

Diameter of single metal wire used in shielding layer mm

Diameter of single metal wire used for winding in overall shielding of outer layer

mm

Outer sheath thickness

mm

Approx outer diameter of cable mm

Approximate cable weight

kg/km

2

2

0.5

0.5

0.15

0.15

1.1

12.5

164

3

2

0.5

0.5

0.15

0.15

1.2

13.5

205

4

2

0.5

0.5

0.15

0.2

1.2

14.8

263

5

2

0.5

0.5

0.15

0.2

1.2

15.9

310

6

2

0.5

0.5

0.15

0.2

1.3

17.5

367

7

2

0.5

0.5

0.15

0.2

1.3

17.5

392

8

2

0.5

0.5

0.15

0.2

1.3

19.4

457

9

2

0.5

0.5

0.15

0.2

1.3

20.8

514

10

2

0.5

0.5

0.15

0.2

1.4

22.0

567

11

2

0.5

0.5

0.15

0.2

1.4

22.0

593

12

2

0.5

0.5

0.15

0.2

1.4

22.7

634

13

2

0.5

0.5

0.15

0.2

1.4

23.7

685

14

2

0.5

0.5

0.15

0.2

1.4

23.7

711

15

2

0.5

0.5

0.15

0.25

1.4

25.1

793

16

2

0.5

0.5

0.15

0.25

1.4

25.1

819

17

2

0.5

0.5

0.15

0.25

1.5

26.7

889

18

2

0.5

0.5

0.15

0.25

1.5

26.7

915

19

2

0.5

0.5

0.15

0.25

1.5

26.7

936

20

2

0.5

0.5

0.15

0.25

1.5

28.0

1005

21

2

0.5

0.5

0.15

0.25

1.5

28.0

1032

22

2

0.5

0.5

0.15

0.25

1.5

29.5

1098

23

2

0.5

0.5

0.15

0.25

1.5

29.5

1124

24

2

0.5

0.5

0.15

0.25

1.6

31.1

1203

25

2

0.5

0.5

0.15

0.25

1.6

31.1

1229

26

2

0.5

0.5

0.15

0.25

1.6

31.1

1255

27

2

0.5

0.5

0.15

0.25

1.6

31.8

1301

28

2

0.5

0.5

0.15

0.25

1.6

32.9

1360

29

2

0.5

0.5

0.15

0.25

1.6

32.9

1386

30

2

0.5

0.5

0.15

0.25

1.6

32.9

1412

31

2

0.5

0.5

0.15

0.25

1.7

34.4

1491

32

2

0.5

0.5

0.15

0.25

1.7

34.4

1517

33

2

0.5

0.5

0.15

0.25

1.7

34.4

1543

34

2

0.5

0.5

0.15

0.3

1.7

35.8

1650

35

2

0.5

0.5

0.15

0.3

1.7

35.8

1676

36

2

0.5

0.5

0.15

0.3

1.7

35.8

1702

37

2

0.5

0.5

0.15

0.3

1.7

35.8

1715

38

2

0.5

0.5

0.15

0.3

1.7

37.2

1802

39

2

0.5

0.5

0.15

0.3

1.7

37.2

1829

40

2

0.5

0.5

0.15

0.3

1.7

37.2

1855

41

2

0.5

0.5

0.15

0.3

1.8

38.9

1948

42

2

0.5

0.5

0.15

0.3

1.8

38.9

1974

43

2

0.5

0.5

0.15

0.3

1.8

38.9

2000


Contact us for more details

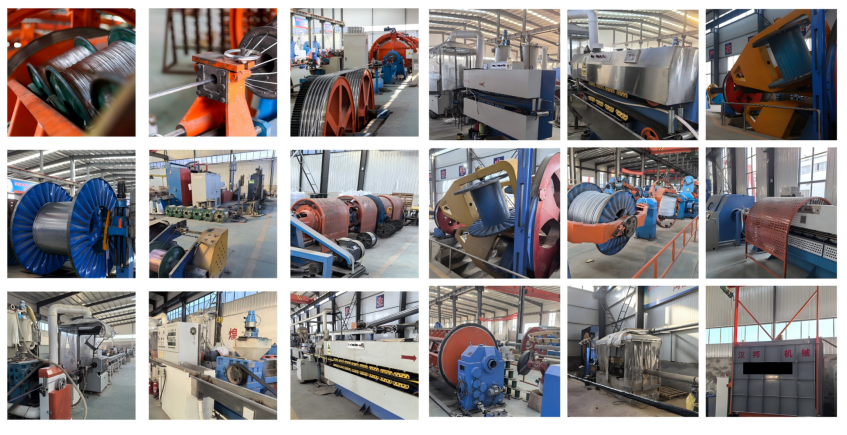

Our Factory
