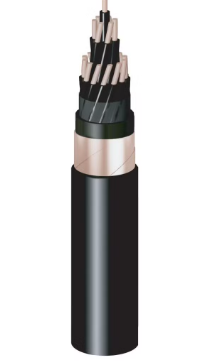

PVC Insulated Control Cable NYY, NYCY, NYSY, NYBY
PVC Insulated Control Cable NYY, NYCY, NYSY, NYBY
PVC Insulated Control Cable NYY, NYCY, NYSY, NYBY
PVC Insulated Control Cable NYY, NYCY, NYSY, NYBY
PVC Insulated Control Cable NYY, NYCY, NYSY, NYBY
PVC Insulated Control Cable NYY, NYCY, NYSY, NYBY
Specifications
Brand Name :
PVC Insulated Power Cable
Model Number :
NYY， NYCY, NYSY, NYBY
Certification :
IEC,CE,ISO,TUV
Place of Origin :
Hebei，China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C,T/T
Supply Ability :
100KM/Week
Delivery Time :
7-30 days based on different qty
Packaging Details :
Rolls, Wooden Drums, Steel Drums, Reels or customized
Voltage :
450/ 750V
Armoring :
STEEL TAPE OR NONE
Insulation :
PVC
Core :
Multi cores
Temperature range :
- 30℃ to + 70℃
Sheathed :
PVC
Description

PVC Insulated Control Cable NYY, NYCY, NYSY, NYBY


APPLICATION

  • Underground and industrial power transmission, especially in wet or corrosive environments.
  • ndustrial control circuits requiring flexibility and resistance to environmental stress.
  • Fixed installations in dry or moderately humid environments, such as control panels.

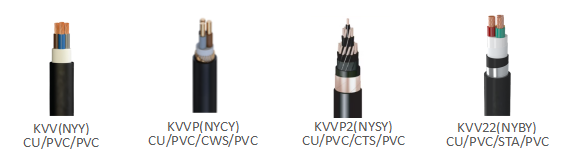

CONSTRUCTION

  • Conductor: Class 5 soft stranded conductor
  • Insulation:Polyvinyl chloride (PVC)
  • Filler(optional):Polypropylene(PP) Mesh Filling Rope
  • Shielded Braid:Soft round copper wire or tin plated round copper wire
  • Outer sheath:Polyvinyl chloride (PVC)


PVC Insulated Control Cable NYY, NYCY, NYSY, NYBY


CHARACTERISTIC

  • Voltage Rating Uo/U450/750V
  • Maximum operating temperature of conductor:+70℃
  • Operating ambient temperature: -15℃~+40℃
  • Cable laying temperature:Not less than 0℃(When the ambient temperature is below 0℃, the cable should be preheated.)


SPECIFICATIONS

Specs
mm²

Conductor diameter
mm

Nominal thickness of insulation
mm

Nominal thickness of sheath
mm

Approximate outer diameter of cable
mm

Approximate cable weight
kg/km

2×0.5

0.85

0.6

1.5

10.6

156.5

2×0.5(B)

0.90

0.6

1.5

10.7

159.2

2×0.75

1.02

0.6

1.5

11.0

168.8

2×0.75(B)

1.10

0.6

1.5

11.1

172.9

2×1

1.16

0.6

1.5

11.2

179.7

2×1(B)

1.29

0.6

1.5

11.5

186.2

2×1.5

1.41

0.7

1.5

12.2

211.5

2×1.5(B)

1.56

0.7

1.5

12.5

219.2

2×2.5

1.76

0.8

1.5

13.4

260.4

2×2.5(B)

2.04

0.8

1.5

13.8

272.6

2×4

2.22

0.8

1.5

14.3

310.7

2×4(B)

2.55

0.8

1.5

14.9

25.1

2×6

2.74

0.8

1.5

15.3

371.7

2×6(B)

3.10

0.8

1.5

16.0

388.9

2×10

4.00

1.0

1.5

18.6

533.9

3×0.5

0.85

0.6

1.5

11.0

171.2

3×0.5(B)

0.90

0.6

1.5

11.1

174.4

3×0.75

1.02

0.6

1.5

11.3

186.5

3×0.75(B)

1.10

0.6

1.5

11.5

191.4

3×1

1.16

0.6

1.5

11.6

200.6

3×1(B)

1.29

0.6

1.5

11.9

208.0

3×1.5

1.41

0.7

1.5

12.6

240.0

3×1.5(B)

1.56

0.7

1.5

12.9

248.8

3×2.5

1.76

0.8

1.5

13.9

02.4

3×2.5(B)

2.04

0.8

1.5

14.4

316.5

3×4

2.22

0.8

1.5

15.0

369.0

3×4(B)

2.55

0.8

1.5

15.5

385.7

3×6

2.74

0.8

1.5

16.0

451.0

3×6(B)

3.10

0.8

1.5

16.7

470.8

3×10

4.00

1.0

1.5

19.6

662.2

4×0.5

0.85

0.6

1.5

11.5

190.5

4×0.5(B)

0.90

0.6

1.5

11.6

194.2

4×0.75

1.02

0.6

1.5

11.9

209.6

4×0.75(B)

1.10

0.6

1.5

12.1

215.0

4×1

1.16

0.6

1.5

12.3

226.9

4×1(B)

1.29

0.6

1.5

12.6

235.4

4×1.5

1.41

0.7

1.5

13.4

275.1

4×1.5(B)

1.56

0.7

1.5

13.7

285.6

4×2.5

1.76

0.8

1.5

14.9

352.8




Contact us for more information

OUR FACTORY

PVC Insulated Control Cable NYY, NYCY, NYSY, NYBY


PROJECTS

PVC Insulated Control Cable NYY, NYCY, NYSY, NYBY


PARTNER

PVC Insulated Control Cable NYY, NYCY, NYSY, NYBYPVC Insulated Control Cable NYY, NYCY, NYSY, NYBY



DELIVERY AND PACAKGE


PVC Insulated Control Cable NYY, NYCY, NYSY, NYBY


FAQ

Q: What is a PVC insulated control cable?‌
A: A PVC insulated control cable is a type of electrical cable with polyvinyl chloride (PVC) insulation, designed for transmitting control signals in industrial, commercial, and residential applications. It offers flexibility, durability, and resistance to moisture and chemicals.
Q: What are the advantages of PVC insulation in control cables?‌
A: PVC insulation provides excellent electrical insulation, flame retardancy, and resistance to oil, acids, and weather conditions. It also ensures flexibility and ease of installation.

Q: Can PVC control cables be used outdoors?‌
A: Yes, but they require additional protective measures like UV-resistant jackets or conduit systems for prolonged outdoor exposure. Standard PVC cables are suitable for indoor or sheltered environments.

Q: What temperature range can PVC control cables withstand?‌
A: PVC insulated cables generally operate within -15°C to +70°C. For higher temperatures, alternatives like XLPE insulation may be recommended.

Q: How many cores can a PVC control cable have?‌
A: PVC control cables can be designed with 2 to 61 cores, depending on the application. Common configurations include 2-core, 4-core, 7-core, and 19-core for complex control systems.

Q: Are PVC control cables suitable for industrial automation?‌
A: Yes, they are widely used in industrial automation for connecting sensors, actuators, and control panels due to their robustness and signal integrity.

Q: Can PVC control cables be buried underground?‌
A: Yes, if they are armored (e.g., with steel wire armor) and rated for direct burial. Non-armored cables may require additional protection.
