Specifications
Brand Name :
Overhead Service Drop ABC Cable
Model Number :
ABC
Certification :
CCC,ISO,TUV,CE
Place of Origin :
Hebei，China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
,L/C,T/T
Supply Ability :
100KM/Week
Delivery Time :
7-30 days based on different qty
Packaging Details :
Wooden Drum/ Steel Drum
Application :
overhead distribution line
Cores Nos :
1,2,3,4 more multicore
Rated Voltage :
15/35kV
Installation Degree :
-20℃-90℃
Neutral Messengers :
AAC, AAAC or ACSR
Insulation :
PE/PVC
Description

Overhead Service Drop ABC Cable AAC, AAAC, ACSR XLPE/PVC Insulated for Long-distance Aerial Installations


APPLICATION

This type of cable is designed for overhead power distribution over long distances, combining high-strength aluminum conductors (AAC, AAAC, or ACSR) with durable XLPE/PVC insulation to ensure reliable performance in aerial installations.

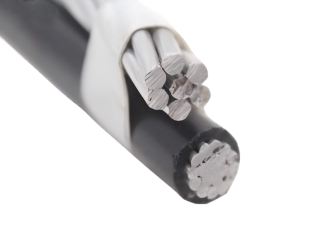

CONSTRUCTION

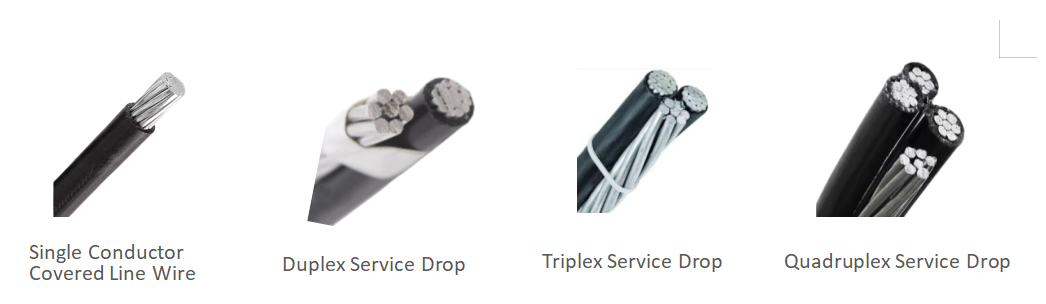

All aluminium conductor, polyethylene or cross linked polyeth- ylene insulation, concentric strand AAC, ACSR, or 6201 alloy neutral messenger.


Overhead Service Drop ABC Cable AAC, AAAC, ACSR XLPE/PVC Insulated for Long-distance Aerial Installations





CHARACTERISTIC

  • Voltage rating: 12.7/22kV
  • Normal operation 90°C.
  • Emergency over load conditions 130°C.
  • Short circuit conditions 250°C.


SPECIFICATION

Description

Phase conductor

Bare
Conductor(AAC)

Approx.Overall
Diameter&Weight

NO of Stranding&
Diameter

XLPE
Thickness

NO of.Stranding &
Diameter

Diameter
(mm)

Weight
kg/km)

1×10mm²+10mm²

7 /1.35

1.0

7/1.35

10.30

72

1×16mm²+16mm²

7/1.70

1.2

7/1.70

12.84

113

1×25mm²+25mm²

7/2.22

1.2

7/2.22

15.04

165

1×35mm²+35mm²

7/2.59

1.4

7/2.59

17.8B

231

1×50mm²+50mm²

7/3.10

1.4

7/3.10

19.68

318

1×70mm²+50mm²

19/2.22

1.4

19 / 2.22

21.38

380

1×95mm²+50mm²

19/2.59

1.4

19 / 2.59

22.98

456

2×10mm²+10mm²

7/1.35

1.0

7 / 1.35

12.30

116

2×16mm²+16mm²

7 /1.70

12

7 / 1.70

15.24

181

2×25mm²+25mm²

7/2.22

12

7 / 2.22

17.44

261

2×35mm²+35mm²

7/ 2.59

1.4

7 / 2.59

20.28

365

2×50mm²+50mm²

7/3.10

1.4

7 / 3.10

22.48

498

2×70mm²+50mm²

19/2.22

1.4

19 / 2.22

2588

622

2×95mm²+50mm²

19/2.59

1.4

19 / 2.59

29.08

774

3×10mm²+10mm²

7/1.35

1.0

7 / 1.35

14.76

160

3×16mm²+16mm²

7/1.70

1.2

7 / 1.70

18.28

249

3×25mm²+25mm²

7/2.22

1.2

7 / 2.22

20.92

357

3×35mm²+35mm²

7/2.59

1.4

7 / 2.59

24.33

499

3×50mm²+50mm²

7/3.10

1.4

7 / 3.10

26.97

678

3×70mm²+50mm²

19/2.22

1.4

19 / 2.22

31.05

864

3×95mm²+50mm²

19/2.59

1.4

19 / 2.59

34.89

1092

Contact us for more details


ABOUT US


Overhead Service Drop ABC Cable AAC, AAAC, ACSR XLPE/PVC Insulated for Long-distance Aerial Installations


WHY CHOOSE US

Overhead Service Drop ABC Cable AAC, AAAC, ACSR XLPE/PVC Insulated for Long-distance Aerial Installations


PROJECTS

Overhead Service Drop ABC Cable AAC, AAAC, ACSR XLPE/PVC Insulated for Long-distance Aerial Installations


PACKAGE

Overhead Service Drop ABC Cable AAC, AAAC, ACSR XLPE/PVC Insulated for Long-distance Aerial Installations


PARTNER

Overhead Service Drop ABC Cable AAC, AAAC, ACSR XLPE/PVC Insulated for Long-distance Aerial InstallationsOverhead Service Drop ABC Cable AAC, AAAC, ACSR XLPE/PVC Insulated for Long-distance Aerial Installations


FAQ

Can ABC cables be used in high-temperature environments?‌
Yes, XLPE insulation can withstand temperatures up to ‌90°C‌ under normal conditions and ‌250°C‌ during short-circuit events, making it suitable for hot climates.

What is the maximum voltage rating for ABC cables with XLPE/PVC insulation?‌
Typically rated for ‌up to 35 kV‌, but specific ratings depend on conductor size, insulation thickness, and application requirements.

Are you a manufacturer or trading company?
We are a professional cable manufacturer more than 20 years.
Can I get free samples?
The samples are free for you, you only pay the freight charge
What’s your Minimum Order Quantity?
We adopt flexible MOQ Policy. But the cable is very heavy, a suitable quantity could avoid the high freight.
Does your company accept OEM production?
Yes, We support OEM/ODM service
