0.6/1KV LSOH AWA Aluminium Wire Armoured Electrical Cable Single Core IEC 60502-1
0.6/1KV LSOH AWA Aluminium Wire Armoured Electrical Cable Single Core IEC 60502-1
Specifications
Brand Name :
Zhongdong
Model Number :
YJV72
Certification :
ISO,VDE,ISO,TUV
Place of Origin :
Hebei，China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C,T/T
Supply Ability :
100KM/Week
Delivery Time :
10 Work days
Packaging Details :
Wooden Steel Drums
Conductor Material :
Copper
Insulation Material :
PVC
Application :
Industrial
Jacket :
PVC
Color :
Optional
cores :
5
Description

0.6/1KV LSOH AWA Aluminium Wire Armoured Electrical Cable Single Core IEC 60502-1


APPLICATION

Fixed Wiring Power Mains: e.g., in buildings, stadiums, schools
Harsh Environments: Cable trenches, tunnels, direct burial
Special Sites: Subways, mines, industrial plants

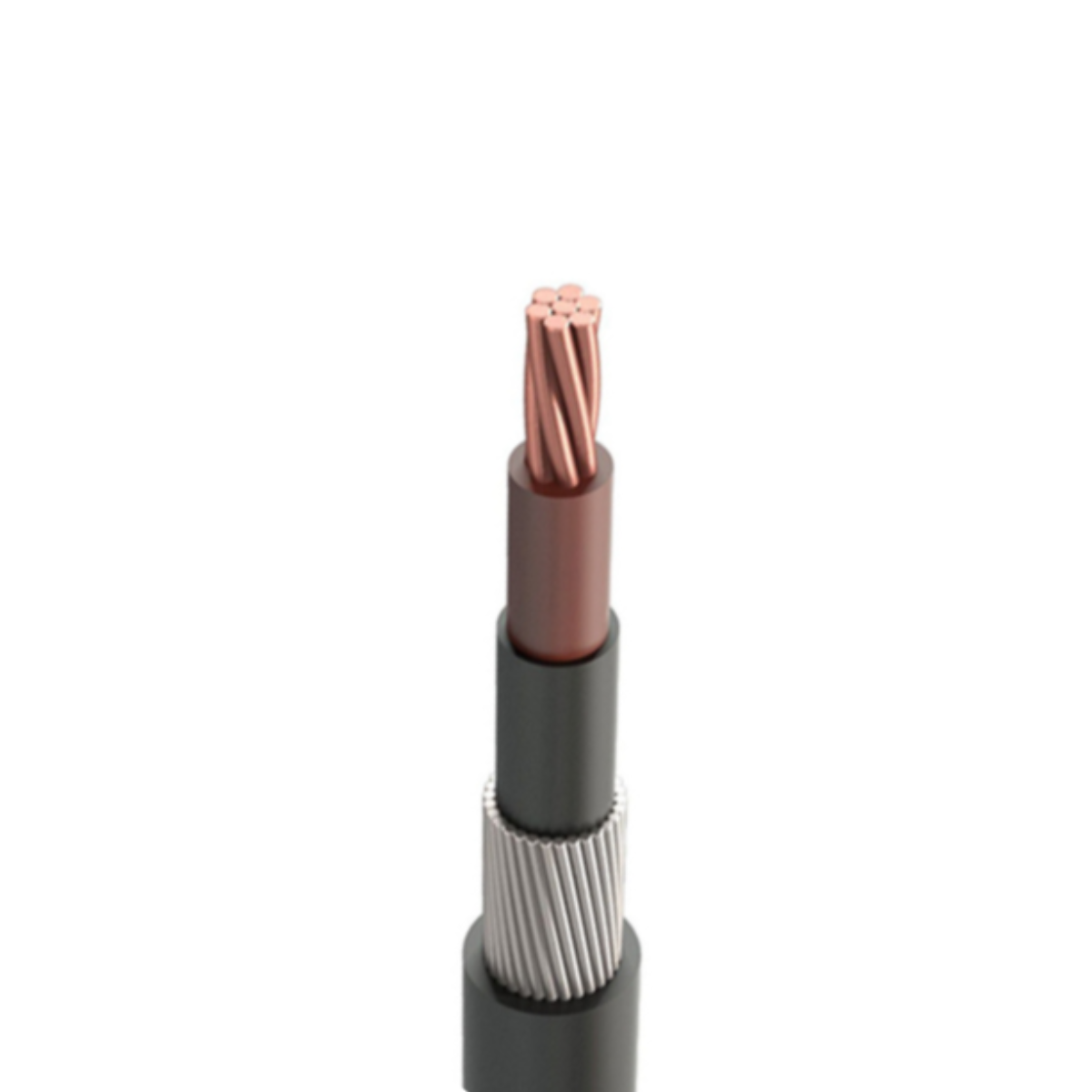

CONSTRUCTION

  • Conductor: Class 1/Class 2 stranded Copper conductor
  • Insulation: XLPE
  • Filler(options):Polypropylene mesh tearing rope
  • Inner sheath:Polyvinyl chloride (PVC)
  • Armour:Aluminium wire
  • Outer sheath:LSOH(Low Smoke Zero Halogen)
  • 0.6/1KV LSOH AWA Aluminium Wire Armoured Electrical Cable Single Core IEC 60502-1

CHARACTERISTIC

  • Voltage Rating Uo/U: 0.6/1kV
  • Maximum operating temperature of conductor:+90℃
  • Operating ambient temperature: -40℃~+45℃
  • Cable laying temperature:Not less than 0℃(When the ambient temperature is below 0℃, the cable should be preheated.)
  • Minimum Bending Radius: 15D (D is the actual outer diameter of the cable)

Specification

pecification

Outer diameter of conductor

Nominal thickness of insulation

Diameter of

aluminium wire

Nominal sheath thickness

Approx.outer diameter of cable

Approx. Weight of cable

Ampacity of cable

Air

Soil

CU

AL

Cu

Al

Cu

Al

mm2

mm

mm

mm

mm

mm

kg/km

kg/km

A

A

A

A

1×4 RE

2.24

0.7

1.25

1.8

16.9

228

204

45

35

60

50

1×6 RE

2.76

0.7

1.25

1.8

16.9

258

222

55

45

70

50

1×10 CC

3.8

0.7

1.25

1.8

16.9

321

261

75

60

95

75

1×16 CC

4.8

0.7

1.25

1.8

17.0

357

255

100

80

125

100

1×25 CC

6.0

0.9

1.25

1.8

17.4

482

323

140

115

160

130

1×35 CC

7.0

0.9

1.25

1.8

18.4

597

375

175

140

190

150

1×50 CC

8.4

1.0

1.6

1.8

19.6

788

487

210

170

225

180

1×70 CC

10.0

1.1

1.6

1.8

21.5

1032

598

270

215

280

225

1×95 CC

11.5

1.1

1.6

1.8

23.1

1319

718

340

275

335

270

1×120 CC

13.0

1.2

2.0

1.8

24.7

1657

892

400

320

380

305

1×150 CC

14.5

1.4

2.0

1.8

26.7

1960

1048

460

370

425

340

1×185 CC

16.2

1.6

2.0

1.8

28.8

2375

1205

530

415

480

375

1×240 CC

18.4

1.7

2.0

1.8

31.6

3004

1467

625

490

555

435

1×300 CC

20.5

1.8

2.0

1.9

34.2

3655

1722

720

565

630

495

1×400 CC

23.5

2.0

2.5

2.0

39.3

4725

2245

815

640

705

555

1×500 CC

26.5

2.2

2.5

2.2

44.3

5837

2686

855

680

765

595

1×630 CC

30.0

2.4

2.5

2.3

50.4

7326

3271

980

790

860

680

ABOUT US

0.6/1KV LSOH AWA Aluminium Wire Armoured Electrical Cable Single Core IEC 60502-1

PACKAGE


0.6/1KV LSOH AWA Aluminium Wire Armoured Electrical Cable Single Core IEC 60502-1


APPLICATION


0.6/1KV LSOH AWA Aluminium Wire Armoured Electrical Cable Single Core IEC 60502-1


PROJECT

0.6/1KV LSOH AWA Aluminium Wire Armoured Electrical Cable Single Core IEC 60502-1

WHY US

0.6/1KV LSOH AWA Aluminium Wire Armoured Electrical Cable Single Core IEC 60502-1

FAQ

Q1: Are you trading company or manufacturer ?
A1: We are manufacturer and trading company.
Q2: Do you have your own R&D team?
A2: Yes, we can customize products as your requirements.
Q3: How about the quality?
A3: We have the best professional engineer and strict QA and QC system.
Q4: Can we be your distributor?
A4: We are looking for distributor and agent all over the world.
Q5: How’s the package?
A5: Normally are cartons, but also we can pack it according to your requirements.
Q6: How’s the delivery time?
A6: It depends on the quantity you need, 1-25 days usually.
