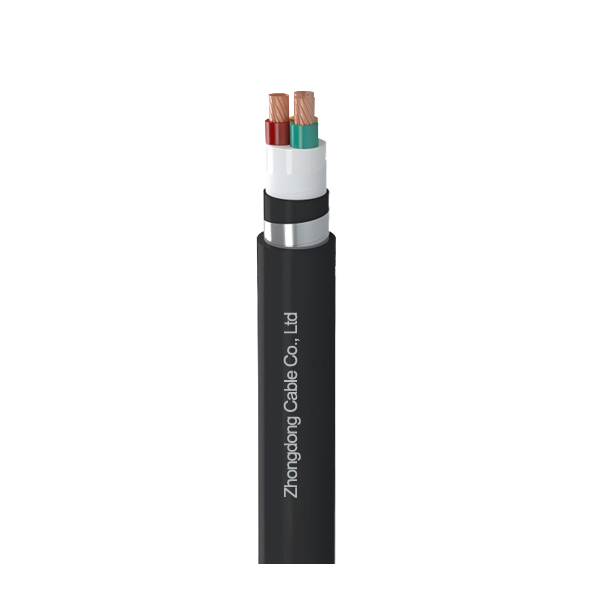

Steel Tape Armoured Control Cable CU/PVC/STA/PVC NYBY KVV22
Steel Tape Armoured Control Cable CU/PVC/STA/PVC NYBY KVV22
Specifications
Brand Name :
Zhongdong
Model Number :
KVVP NYCY
Certification :
ISO,VDE,ISO,TUV
Place of Origin :
Hebei，China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C,T/T
Supply Ability :
100KM/Week
Delivery Time :
10Work days
Packaging Details :
Wooden Steel Drums
Conductor Material :
Copper
Insulation Material :
PVC
Application :
Industrial
Jacket :
PVC
Color :
Optional
cores :
4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20
Description

Steel Tape Armoured Control Cable CU/PVC/STA/PVC NYBY KVV22


APPLICATION

  • Steel Tape Armoured Control Cable CU/PVC/STA/PVC NYBY KVV22‌ is a type of ‌armored control cable‌ designed for fixed installations in environments requiring mechanical protection, such as cable trenches, direct burial, and indoor applications with high mechanical stress‌.
  • It is commonly used in ‌industrial plants, power stations, and automation systems‌ where protection against mechanical damage is essential‌

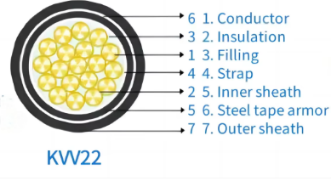

CONSTRUCTION

  • Conductor

    Circular solid copper conductor(A) or circular stranded copper conductor(B)

  • Insulation

    Polyvinyl chloride (PVC)

  • Filler

    Polypropylene(PP) mesh filling rope

  • Armouring

    Galvanized steel tape

  • Outer sheath

    Polyvinyl chloride (PVC)

Steel Tape Armoured Control Cable CU/PVC/STA/PVC NYBY KVV22Steel Tape Armoured Control Cable CU/PVC/STA/PVC NYBY KVV22





CHARACTERISTIC

  • Voltage Rating Uo/U: 450/750V
  • Temperature Rating
  • Maximum operating temperature of conductor:+70℃
  • Operating ambient temperature: -15℃~+45℃
  • Cable laying temperature:Not less than 0℃(When the ambient temperature is below 0℃, the cable should be preheated.)
  • Minimum Bending Radius: 12D (D is the actual outer diameter of the cable)

SPECIFICATION

Specs
mm²

Conductor diameter
mm

Nominal thickness of insulation
mm

Nominal thickness of sheath
mm

Approximate outer diameter of cable
mm

Approximate cable weight
kg/km

2×0.5

0.85

0.6

1.5

10.6

156.5

2×0.5(B)

0.90

0.6

1.5

10.7

159.2

2×0.75

1.02

0.6

1.5

11.0

168.8

2×0.75(B)

1.10

0.6

1.5

11.1

172.9

2×1

1.16

0.6

1.5

11.2

179.7

2×1(B)

1.29

0.6

1.5

11.5

186.2

2×1.5

1.41

0.7

1.5

12.2

211.5

2×1.5(B)

1.56

0.7

1.5

12.5

219.2

2×2.5

1.76

0.8

1.5

13.4

260.4

2×2.5(B)

2.04

0.8

1.5

13.8

272.6

2×4

2.22

0.8

1.5

14.3

310.7

2×4(B)

2.55

0.8

1.5

14.9

25.1

2×6

2.74

0.8

1.5

15.3

371.7

2×6(B)

3.10

0.8

1.5

16.0

388.9

2×10

4.00

1.0

1.5

18.6

533.9

3×0.5

0.85

0.6

1.5

11.0

171.2

3×0.5(B)

0.90

0.6

1.5

11.1

174.4

3×0.75

1.02

0.6

1.5

11.3

186.5

3×0.75(B)

1.10

0.6

1.5

11.5

191.4

3×1

1.16

0.6

1.5

11.6

200.6

3×1(B)

1.29

0.6

1.5

11.9

208.0

3×1.5

1.41

0.7

1.5

12.6

240.0

3×1.5(B)

1.56

0.7

1.5

12.9

248.8

3×2.5

1.76

0.8

1.5

13.9

02.4

3×2.5(B)

2.04

0.8

1.5

14.4

316.5

3×4

2.22

0.8

1.5

15.0

369.0

3×4(B)

2.55

0.8

1.5

15.5

385.7

3×6

2.74

0.8

1.5

16.0

451.0

3×6(B)

3.10

0.8

1.5

16.7

470.8

3×10

4.00

1.0

1.5

19.6

662.2

4×0.5

0.85

0.6

1.5

11.5

190.5

4×0.5(B)

0.90

0.6

1.5

11.6

194.2

4×0.75

1.02

0.6

1.5

11.9

209.6

4×0.75(B)

1.10

0.6

1.5

12.1

215.0

4×1

1.16

0.6

1.5

12.3

226.9

4×1(B)

1.29

0.6

1.5

12.6

235.4

4×1.5

1.41

0.7

1.5

13.4

275.1

4×1.5(B)

1.56

0.7

1.5

13.7

285.6

4×2.5

1.76

0.8

1.5

14.9

352.8
