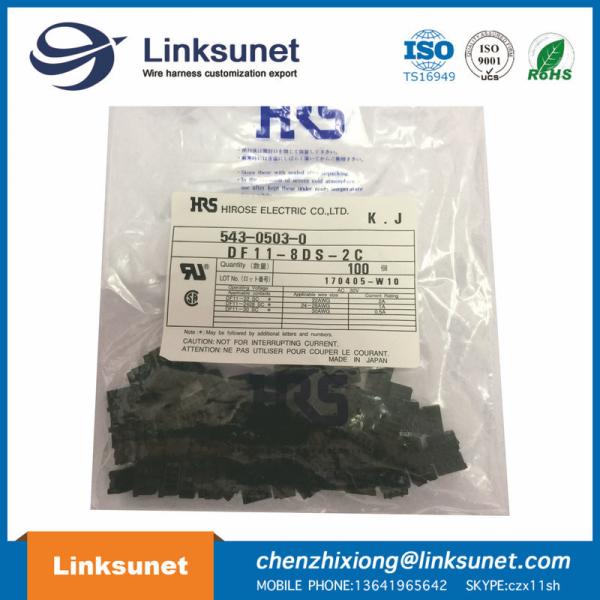

PA6 HRS Male And Female Connectors Double Row Pich 2.0mm 8P DF11 - 8DS - 2 C
PA6 HRS Male And Female Connectors Double Row Pich 2.0mm 8P DF11 - 8DS - 2 C
PA6 HRS Male And Female Connectors Double Row Pich 2.0mm 8P DF11 - 8DS - 2 C
PA6 HRS Male And Female Connectors Double Row Pich 2.0mm 8P DF11 - 8DS - 2 C
PA6 HRS Male And Female Connectors Double Row Pich 2.0mm 8P DF11 - 8DS - 2 C
PA6 HRS Male And Female Connectors Double Row Pich 2.0mm 8P DF11 - 8DS - 2 C
Specifications
Brand Name :
HRS
Model Number :
DF11 - 8DS - 2C
Certification :
ROHS
Place of Origin :
JAPA
MOQ :
100set
Price :
Negotiable
Payment Terms :
T/T, MoneyGram, Western Union
Supply Ability :
50000SET/D
Delivery Time :
3-15D
Packaging Details :
Carton or Wood Box
Material :
PA6
Color :
Bk
Pich4 :
2.0mm
cable :
UL1007-20-28AWG
PIN :
8 - 32
wire material :
PVC
Description

HRS Double Row Pich 2.0mm 8P DF11 - 8DS - 2 C / Male Female Wire Connector / Black / Goods in Stock / Material PA6

1 DF11 - 4S - 2C 4P
2 DF11 - 6S - 2C 6P
3 DF11 - 8S - 2C 8P
4 DF11 - 10S - 2C 10P
5 DF11 - 12S - 2C 12P
6 DF11 - 14S - 2C 14P
7 DF11 - 16S - 2C 16P
8 DF11 - 18S - 2C 18P
9 DF11 - 20S - 2C 20P
10 DF11 - 22S - 2C 22P
11 DF11 - 24S - 2C 24P
12 DF11 - 26S - 2C 26P
13 DF11 - 28S - 2C 28P
14 DF11 - 30S - 2C 30P
15 DF11 - 32S - 2C 32P

Documents & Media

Datasheets

DF11 Series Datasheet
DF11 - 8DS - 2C Spec
DF11 - xDS - 2C Drawing

Product Training Modules

Wire - to - Board Connector

Featured Product

DF11 Series

Mfg CAD Models

DF11 - 8DS - 2C . igs
DF11 - 8DS - 2C . stp

Catalog Page

102 ( CN081 PDF )

Product Attributes Select All
Categories Connectors , Interconnects
Rectangular Connectors - Housings
Manufacturer Hirose Electric Co Ltd
Series DF11
Packaging Bulk
Part Status Active
Connector Type Receptacle
Contact Type Female Socket
Number of Positions 8
Pitch 0 . 079 " ( 2 . 00mm )
Number of Rows 2
Row Spacing 0 . 079 " ( 2 . 00mm )
Mounting Type Free Hanging ( In - Line )
Contact Termination Crimp
Fastening Type -
Color Black
Features -
Note Contacts Not Included

We can provide the service.
1: Quick response
2: Professional services
A:Crimping.
B:Soldering.
C:Harness molding-(PVC/PE/TPE/TPU and so on )
D:IDC.
E:On the surface of the metal coating(TPE/TPU/PVC and so on).
F:Harness assembly,Control cabinet assembly .
G:Connector customization and injection molding .
3: Localization, cost reduction (customer approval)
4: Precise logistics
5: The purchase of globalisation
6: We can provide the file:
A:product drawing, B:material certificate ,
C: Inspection report, D: the HS code.
If you need certificate of origin,Control plant,IMDS and so on , please let us know

Q1: What's your guarantee?
A: All our products have 1 year guarantee, if any quality problem can contact us.
Q2: What's your delivery time ?
A: The delivery time is 5-15 working days. The specific delivery time depends on the items and the quantity of your order.
Q3: What's your minimum order quantity?
A: For bulk order, the MOQ is 100 pcs.

Q4: Can you supply the sample?
A: We can supply samples to check the quality before bulk order. But the price will be sample price not wholesale price.

Q5. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q6.Production standard
A:IPC/WHMA-A-620B( Requirements and Acceptance for Cable and Wire Harness Assemblies )
