Specifications
Brand Name :
Luma
Model Number :
C01-H-8DTPR-2.532 /CO1-S-8DTPR-2.532 / CO1-R-8DTPR-2.532
Place of Origin :
Zhongshan Guandong province China
MOQ :
4
Price :
USD 1.21 brake /USD 0.99 Swivel/USD 0.81 Rigid
Payment Terms :
L/C,wechat,alipay
Supply Ability :
100000
Delivery Time :
5-10days
Packaging Details :
bags and cartons
Inches :
2.5 inches
Braketype :
brake/ Swivel/ Fixed
Productname :
Industrial Wheel Casters
Color :
Black / Grey / Blue
Usage :
Warehousing and Logistics /Medical and Healthcare/ Commercial and Retail/ Office and Institutional Settings/ Home and Furniture
Material :
TPR (Thermoplastic Rubber)
Finish :
Zinc Plated
Bearingtype :
Ball Bearing
Wheeltype :
brake/ Swivel/ Fixed
Mountingtype :
Top Plate
Sample :
1pcs ，price add 50%
Description

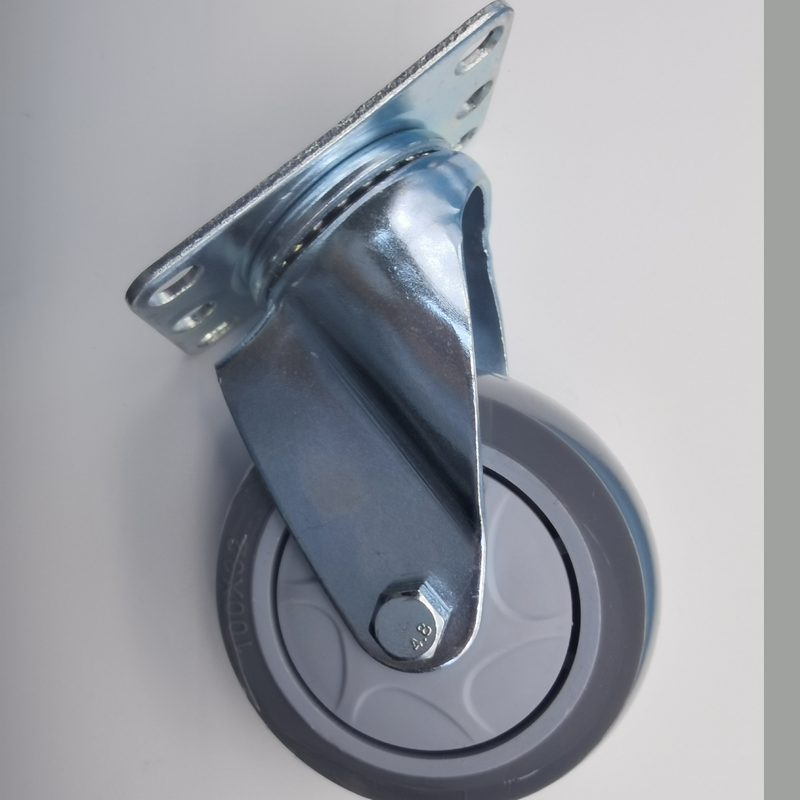

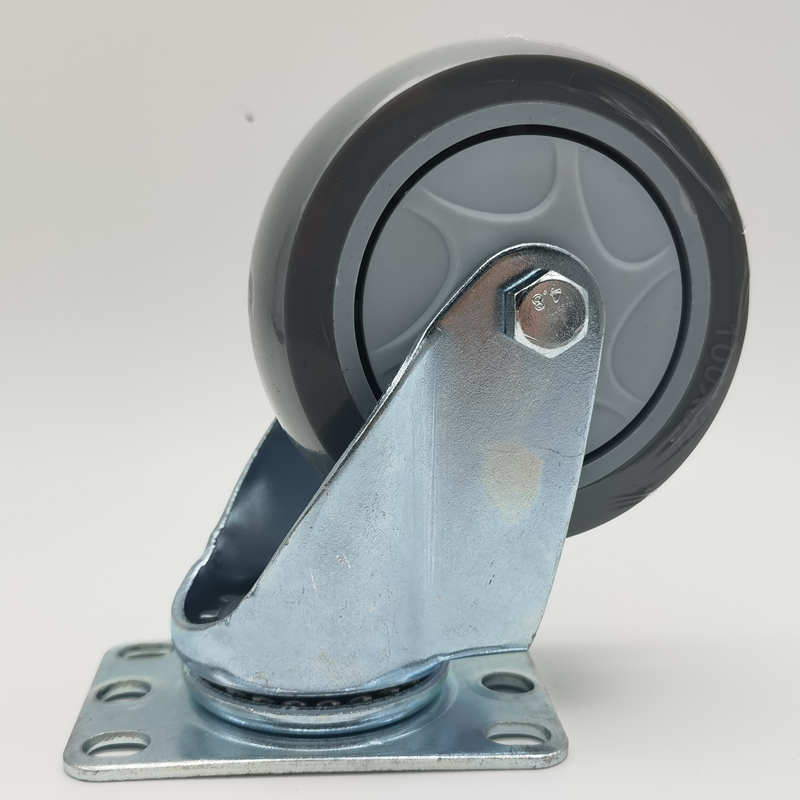

Quiet Operation Medium Duty Single Axis TPR Wheels Castors Singel 2.5"lockable Rigid Swivel Floor Protection

These 2.5" lockable rigid swivel casters feature eco-friendly TPR wheels with industrial rubber cores, designed specifically for assembly lines and transport carts. The non-marking TPR tread prevents floor damage and eliminates black marks, unlike traditional rubber wheels that can release sulfur and carbon black.

Ideal for kitchen carts, hotel service carts, and luggage trolleys requiring easy cleaning and quiet movement operations

Quiet Operation Medium Duty Single Axis c Castors Singel 2.5

Product Specifications
Braking/Activation/Orientation Locked / Swivel / Fixed
Size 2.5 inches
Wheel Material TPR (Thermoplastic Rubber)
Base Plate Support Material Q235
Bearing 6001 Bearing
Installation Height 94
Base Plate Size 94*62
Hole Distance 74.5*45
Box Size 49*28.5*25cm
Matching Specifications
  • Set 1: 2 lockable + 2 fixed
  • Set 2: 2 swivel + 2 fixed

Quiet Operation Medium Duty Single Axis c Castors Singel 2.5

Features and Applications of Medium-Duty Double-Axis TPR Casters
Key Characteristics
  • Durable Construction - Zinc-plated bracket top plate for corrosion resistance with double ball bearing design for enhanced load capacity and smooth rolling
  • TPR Wheel Material - Thermoplastic Rubber offers excellent elasticity, wear resistance, and oil resistance with superior noise reduction and floor protection
  • Safety & Stability - Double-axis design improves stability under heavy loads with optional dual-brake systems that lock both wheels and swivel mechanisms
  • Customization Options - Available in 3-inch, 4-inch, and 5-inch diameters with blue, gray, and black colors; mounting styles include flat plate, thread rod, and socket
Application Directions
  • Industrial Equipment - Suitable for assembly lines, transport carts, and machinery in factories
  • Warehousing & Logistics - Ideal for pallet trucks, shelving systems, and distribution centers
  • Specialized Environments - Noise-sensitive areas like hospitals and laboratories due to low-noise operation; electronics, aerospace, and medical industries requiring floor protection and static control
Quiet Operation Medium Duty Single Axis c Castors Singel 2.5 Quiet Operation Medium Duty Single Axis c Castors Singel 2.5 Quiet Operation Medium Duty Single Axis c Castors Singel 2.5
