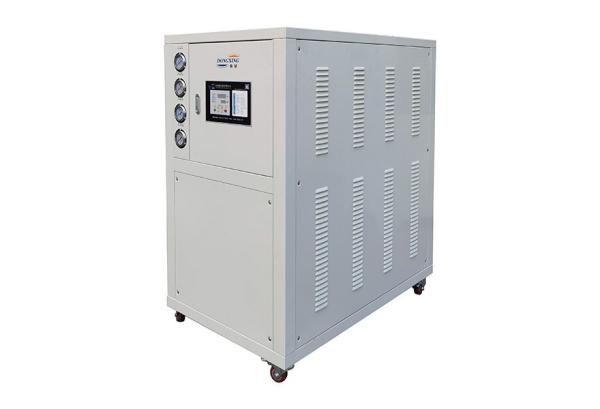

Name: Box Type Water Cooled Industrial Chiller 1500 Tons 156kw With 7 Inch Touch Screen
Brand: DONGXING
Price: 6000 USD

MachineU > China Products

Box Type Water Cooled Industrial Chiller 1500 Tons 156kw With 7 Inch Touch Screen

Specifications

Brand Name :

DONGXING

MOQ :

Packaging Details :

Plywood case

Delivery Time :

15-30days

Payment Terms :

T/T

Price :

6000-2000000RMB/Set

Package :

Wooden case

Compressor Type :

Scroll/Screw/Centrifugal

Touch Screen :

7 inch

Throttling Device :

Expansion Valve

Function :

chilled water

Cooling Capacity :

1-1500 tons

Cooling Capacity :

10.2~156kw

Condition :

new

Frequency :

50 or 60HZ

Water Tank Capacity :

500L

Heat Exchanger :

Shell and tube type

Cooling Method :

Water Cooled

Description

Can be customized acid - proof, anti-corrosion, frequency conversion, explosion-proof. Durable: refrigeration heart adopts fully sealed low noise, small vibration, high efficiency and energy saving imported famous brand compressor, electrical control adopts imported famous brand original, heat exchanger adopts shell tube condenser, high heat exchange efficiency, easy to clean and maintain.

Water-cooled box type chiller (this machine can be customized for both hot and cold use)

Durable: refrigeration heart adopts fully sealed low noise, small vibration, high efficiency and energy saving imported famous brand compressor, electrical control adopts imported famous brand original, heat exchanger adopts shell tube condenser, high heat exchange efficiency, easy to clean and maintain.

Energy-saving economy: digital electronic thermostat can accurately control the temperature of cold water between +3℃ and 50℃, so as to control the normal operation of the unit and ensure that the unit saves energy. The assembly of all units, the filling and debugging of refrigerant for internal wiring are completed in the factory. This model can be customized for both cold and hot.

Safe operation: the body is equipped with compressor delay start protector, over current dimension appliance, high and low voltage protector, fuse plug, electronic time protection safety valve to ensure the normal operation of the unit.

Condenser: high efficiency steel pipe, the two ends of the cover can be exchanged to the direction of water pipe, water pipe flow multi-loop, each condenser and compressor capacity cooperate with each other, straight-through water pipe easy cleaning and maintenance.

SPECIFICACATIONS
Parameter	Model		DX-03W	DX-04W	DX-05W	DX-06W	DX-08WD	DX-10WD	DX-12WD	DX-15WD
Cooling Capacity	Kw50Hz/60Hz		9.5911.22	12.4314.54	15.9118.62	19.1822.45	24.8529.08	31.8337.24	38.3744.89	50.1458.66

	Kcal/h50Hz/60Hz		82519654	1068212498	1369016018	1650319308	2137525009	2737032023	3299438603	4312050451

Total inpupt	kW		2.8	3.55	4.3	5.2	6.8	8.4	10.1	13.1

Maximum Running Current	A		6.7	8.4	10.5	12.6	16.5	20.4	24.6	31.8

Power Supply			3N-380V/415V 50Hz/60Hz

Refrigerant	Name		R22
	Control Type	Kg	1.7	2.2	2.8	3.4	2.2x2	2.8x2	3.4x2	4.2x2
	control type		Capillary Tube						External BalancedThermostatic Expansion Valve
Compressor	Type		With hermetic gyral or piston
	Motor	Kw	2.25	3	3.75	4.5	3x2	3.75x2	4.5x2	5.5x2
Cooling Water	Flow	m3/h	2.062.41	2.673.12	3.424	4.13 4.83	5.346.25	6.858.01	8.249.64	10.7812.61
	P.D.	Kpa	28	27	34	30	38	34	41	28
	In/Out pipe size		G3/4"	G3/4"	G1-1/2"	G1-1/2"	G1-1/2"	G1-1/2"	G2"	G2"
Freeze Water	Flow	m3/h	1.651.93	2.142.5	2.743.2	3.33.86	4.275	5.476.4	6.597.72	8.6210.09

	Tank	m3	0.038	0.065	0.065	0.11	0.11	0.188	0.188	0.285
	In/Out pipe size		G1/4"x4	G1/4"x4	G1/4"x4	G1"	G2-1/2"	G2"	G2"	G2"
Pump	Motor	Kw	0.55	0.55	0.75	0.75	0.75	1.5	1.5	1.5
	Pressure	KPa	242	242	290	290	290	205	205	205
Dimension	Length	mm	830	830	1080	1080	1300	1300	1600	1675
	Width	mm	460	460	580	580	610	610	750	750
	Height	mm	1020	1020	1230	1230	1445	1445	1445	1608
Weight	Kg		120	140	150	200	210	290	310	400

SPECIFICACATIONS
Parameter	Model		DX-20WD	DX-25WD	DX-30WD	DX-35WD	DX-40WD	DX-45WD	DX-50WD	DX-60WD
Cooling Capacity	Kw50Hz/60Hz		67.1478.56	81.5395.39	99.91116.05	117.28137.22	129.06151	148.68173.95	153.91180.07	198.12237.75

	Kcal/h50Hz/60Hz		5774867565	7012082040	8530399805	100869118016	1109841, 29851	127868149605	132359154860	170383204460

Motor Ipupt	kW		17.3	21.3	25.6	29.4	33.1	38.6	42.5	59

Maximum Running Current	A		42.1	48.5	58.3	65.4	75.4	80.6	88.4	101.92

Power Supply	Volt		3N-380V/415V 50Hz/60Hz

Refrigerant	Name		R22
	Charge	Kg	5x2	6.3x2	7.5x2	9.2x2	10x2	11.3x2	12.5x2	15.6x2
	control type		External Balanced Thermostatic Expansion Valve
Compressor	Type		With hermetic gyral or piston
	Motor	Kw	7.5x2	9.4x2	11.3x2	13x2	15x2	16.9x2	18.8x2	22.5x2
Cooling Water	Flow	m3/h	14.4416.9	17.5420.52	21.3224.94	25.2229.51	27.7432.46	31.9837.42	33.0938.72	41.649.93

	P.D.	Kpa	38	30	36	37	35	40	42	45
	In/Out pipe size		G2-1/2"	G2-1/2"	G2-1/2"	G3"	G3"	G3"	G3"	G3"
Freeze Water	Flow	m3/h	11.5513.52	14.0316.41	17.0619.96	20.1823.61	22.1925.97	25.5829.93	26.4830.98	33.2839.94

	Tank	m3	0.285	0.405	0.405	0.405	0.61	0.61	0.61	0.61
	In/Out pipe size		G2-1/2"	G2-1/2"	G2-1/2"	G3"	G3"	G3"	G3"	G3"
	Motor	Kw	2.2	2.2	4	4	4	4	4	4
Pump	Raise	KPa	220	220	250	250	250	250	250	250
Dimension	Length	mm	1880	1980	2130	2100	2200	2200	2200	2400
	Width	mm	914	914	940	1020	1000	1070	1070	1150
	Height	mm	1780	1950	1950	2000	2000	2000	2100	2200
Weight	Kg		440	620	690	760	850	950	1000	1100

Box Type Water Cooled Industrial Chiller 1500 Tons 156kw With 7 Inch Touch Screen
