Frequency Conversion Water Cooled Screw Chiller 3000kw Screw Type Chiller Screw Type Chiller
Frequency Conversion Water Cooled Screw Chiller 3000kw Screw Type Chiller Screw Type Chiller
Specifications
Brand Name :
DONGXING
MOQ :
1
Packaging Details :
Plywood case
Delivery Time :
15-30days
Payment Terms :
T/T
Price :
6000-2000000RMB/Set
Colling Water Flow :
49.1m3/h
Ambient Temperature Range :
5-43℃
Cooling Water Flow :
170.7m3/h
Model :
KSWb
Evaporator Water Pump Brand :
Grundfos/Grundfos
Hs Code :
8418692090
Condensing Temperature :
35℃
Cooling Media :
R22/R407/R134
Condenser :
Shell and Tube
Current A :
300.85
Electric Parts :
Schneider
Refrigeration :
R134a
Temperature Range :
5℃-35℃
Machinery Test Report :
Provided
Condenser Fan Brand :
Axial Fan
Description

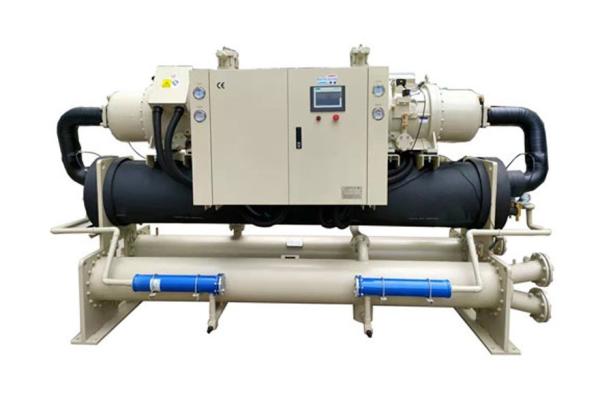

Water-Cooled Flooded Screw Chiller (120kw-3000kw)
Product Specifications
Attribute Value
Cooling Water Flow 49.1m³/h
Ambient Temperature Range 5-43℃
Model KSWb
Evaporator Water Pump Brand Grundfos/Grundfos
Condensing Temperature 35℃
Cooling Media R22/R407/R134
Condenser Shell and Tube
Electric Parts Schneider
Refrigeration R134a
Temperature Range 5℃-35℃
Condenser Fan Brand Axial Fan
Product Description

Our water-cooled flooded screw chillers offer customizable options including acid-proof, anti-corrosion, frequency conversion, and explosion-proof configurations. Featuring imported brand-name semi-hermetic screw compressors and reciprocating compressors, these units deliver exceptional performance with low noise operation.

Key Features
  • Compressor: High-quality imported semi-hermetic screw and reciprocating compressors with automatic load balancing for extended service life
  • Evaporator: Threaded reinforced copper tubes with 25mm PE insulation for optimal cooling efficiency
  • Condenser: Imported trapezoidal low help copper pipes for enhanced heat transfer and easy maintenance
  • Protection System: Comprehensive safety features including temperature control, antifreeze, high/low pressure switches, and overload protection
  • Control System: High-intelligence PIC/PC-level computer control for remote monitoring and reliable operation
Performance Parameters
Model DX-030WS DX-040WS DX-050WS DX-060WS DX-080WS DX-090WS DX-100WS
Cooling Capacity (KW) 108 145 173 1968 260 293 335
Power Consumption (KW) 20.3 27.8 33.2 38.0 51.2 56.5 64.8
Chilled Water (m³/h) 18 24 29 33 46 50 54
Compressor Type Semi-hermetic screw type
Refrigerant R-22
