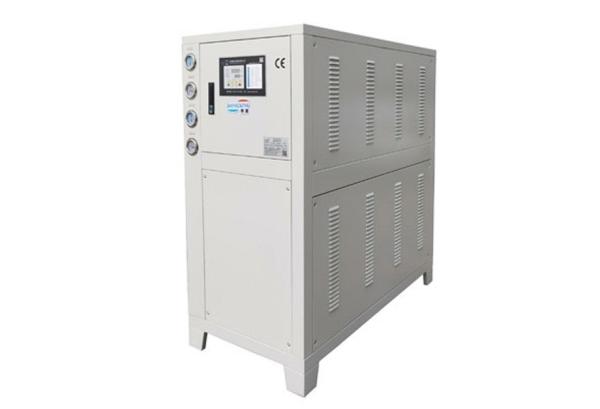

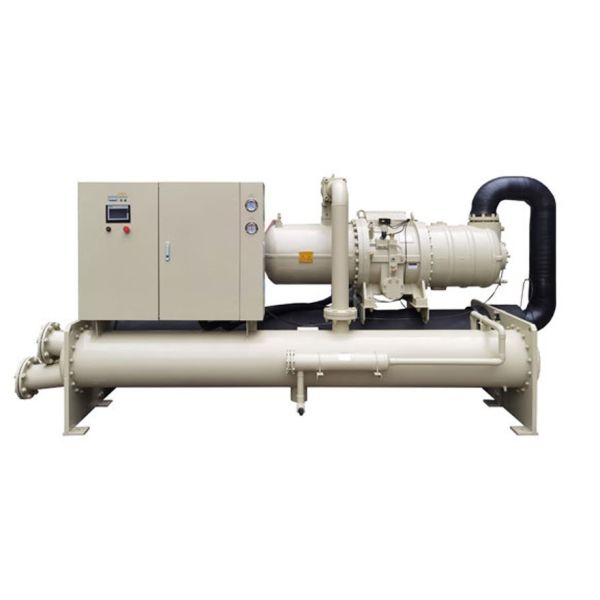

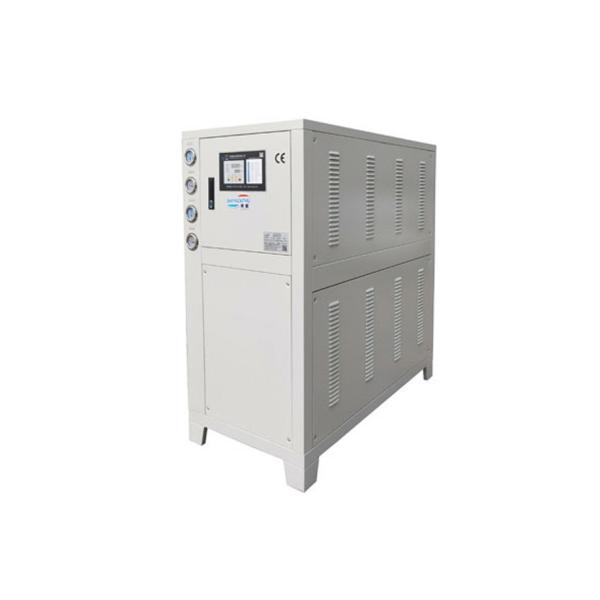

Name: Customized Low Temperature Water Chiller PLC Control Salt Water Low Temp Chillers
Brand: DONGXING
Price: 6000 USD

MachineU > China Products

Customized Low Temperature Water Chiller PLC Control Salt Water Low Temp Chillers

Specifications

Brand Name :

DONGXING

MOQ :

Packaging Details :

Plywood case

Delivery Time :

15-30days

Payment Terms :

T/T

Price :

6000-2000000RMB/Set

Protection Function :

High and low pressure protection, overload protection, overheat protection, anti-freeze protection, phase sequence protection, etc.

Condenser Type :

Shell and Tube/ Plate Heat Exchanger

Control System :

Microcomputer/ PLC

Compressor Type :

Scroll/ Semi-hermetic/ Screw

Noise Level :

≤65dB(A)

Cooling Capacity :

15-500 kW

Cooling Water Flow :

3-100 m³/h

Temperature Range :

-35℃ to 5℃

Water Tank Capacity :

50-1000L

Dimension :

1000*800*1500mm

Weight :

300-1000kg

Refrigerant :

R404a/ R134a/ R407c

Evaporator Type :

Shell and Tube/ Plate Heat Exchanger

Power Supply :

380V/3Ph/50Hz

Description

Can be customized acid-proof, anti-corrosion, frequency conversion, explosion-proof. Water-cooled low-temperature vortex (salt water, glycol) chiller DX-WL series water-cooled low-temperature chiller is a new generation of low-temperature refrigeration equipment carefully designed and developed by Shenzhen Dongxing Refrigeration Company for special industries such as medicine and chemical industry. Its temperature range can be Adjust arbitrarily between -5°C and 85°C. The compressor uses French original "Maneurop", with a cooling charging circuit and complete specifications. It is a model of a new generation of refrigeration equipment.

DX-W series water-cooled low-temperature chiller is a new generation of low-temperature refrigeration equipment carefully designed and developed by Shenzhen Dongxing Refrigeration Company for special industries such as medicine and chemical industry. Its temperature range can be adjusted between -5℃ and 85℃. The compressor uses French original "Maneurop", the refrigeration charging circuit, complete specifications, is a model of a new generation of refrigeration equipment.

DX-W series industrial chiller parameter table (-5℃)

Model item		DX-03WL	DX-05WL	DX-08WL	DX-10WL	DX-12WL	DX-15WL	DX-20WL	DX-25WL	DX-30WL	DX-40WL
Cooling capacity	kcal/h	4127	6448	10102	14100	17453	21323	28201	34907	33962	49868
Cooling capacity	kw	4.8	7.5	11.75	16.4	20.3	24.8	32.8	40.6	39.5	58
Input total power	KW	3	4.5	6.75	8.6	10.1	12.75	17.2	20.95	26.5	34
power supply		3PH 380V 50HZ
The refrigerant	name	R22
The refrigerant	way to control	Externally balanced thermal expansion valve
compressor	type	Fully enclosed scroll type (piston type)
compressor	Power (KW)	2.25	3.75	6	7.5	9	11.25	7.5*2	9.37*2	22.5	30
Condenser	type	Shell and tube
	Cooling water volume (m3/h)	2.1	3.5	6.2	6.9	7.9	10.6	13.9	15.8	21.1	28.7
	Inlet and outlet pipe diameter	1-1/2″	1-1/2″	1-1/2″	1-1/2″	1-1/2″	2"	2"	2-1/2″	3″	3″
Evaporator	type	Water tank coil (shell and tube type)
	Chilled water volume (m3/h)	0.88	1.38	2.17	3.03	3.75	4.58	6.06	7.51	7.3	10.73
	Inlet and outlet pipe diameter	1"	1"	1"	1-1/2″	1-1/2″	2"	2-1/2″	2-1/2″	2-1/2″	3″
Water pump	Power (KW)	0.75	0.75	0.75	1.1	1.1	1.5	2.2	2.2	4	4
Water pump	Head (M)	18	18	18	20	20	20	20	20	25	20
safety protection		Compressor overload protection, over current protection, high and low pressure protection, over temperature protection, flow protection, phase sequence/phase loss protection, exhaust overheating protection, antifreeze protection.
Mechanical Dimensions	Length (mm)	890	890	1170	1170	1170	1650	1650	1880	1880	1880
	Width (mm)	500	500	710	710	710	710	710	710	810	910
	Height (mm)	840	840	1200	1200	1200	1800	1880	1880	1880	1950
Machine weight	Kg	130	150	300	430	500	735	820	900	1150	1200

DX-W series industrial chiller parameter table (-10℃)

Model item		DX-03WL	DX-05WL	DX-08WL	DX-10WL	DX-12WL	DX-15WL	DX-20WL	DX-25WL	DX-30WL	DX-40WL
Cooling capacity	kcal/h	3138	5.72	8211	11564	14272	17453	23128	28545	26653	36799
Cooling capacity	kw	3.65	5.9	9.55	13.45	16.6	20.3	26.9	33.2	31	42
Input total power	KW	3	4.5	6.75	8.6	10.1	12.75	17.2	20.95	26.5	34
power supply		3PH 380V 50HZ
The refrigerant	name	R22
The refrigerant	way to control	Externally balanced thermal expansion valve
compressor	type	Fully enclosed scroll type (piston type)
compressor	Power (KW)	2.25	3.75	6	7.5	9	11.25	7.5*2	9.37*2	22.5	30
Condenser	type	Shell and tube
	Cooling water volume (m3/h)	2.1	3.5	6.2	6.9	7.9	10.6	13.9	15.8	21.1	28.7
	Inlet and outlet pipe diameter	1-1/2″	1-1/2″	1-1/2″	1-1/2″	1-1/2″	2"	2"	2-1/2″	3″	3″
Evaporator	type	Water tank coil (shell and tube type)
	Chilled water volume (m3/h)	0.69	1.12	1.81	2.55	3.15	3.85	5.11	6.3	5.89	8.13
	Inlet and outlet pipe diameter	1"	1"	1"	1-1/2″	1-1/2″	2"	2-1/2″	2-1/2″	2-1/2″	3″
Water pump	Power (KW)	0.75	0.75	0.75	1.1	1.1	1.5	2.2	2.2	4	4
Water pump	Head (M)	18	18	18	20	20	20	20	20	25	20
safety protection		Compressor overload protection, over current protection, high and low pressure protection, over temperature protection, flow protection, phase sequence/phase loss protection, exhaust overheating protection, antifreeze protection.
Mechanical Dimensions	Length (mm)	890	890	1170	1170	1170	1650	1650	1880	1880	1880
	Width (mm)	500	500	710	710	710	710	710	710	810	910
	Height (mm)	840	840	1200	1200	1200	1800	1880	1880	1880	1950
Machine weight	Kg	130	150	300	430	500	735	820	900	1150	1200

DX-W series industrial chiller parameter table (-15℃)

Model item		DX-03WL	DX-05WL	DX-08WL	DX-10WL	DX-12WL	DX-15WL	DX-20WL	DX-25WL	DX-30WL	DX-40WL
Cooling capacity	kcal/h	3052	5201	7136	10403	12982	15648	20807	25966	29577	37401
Cooling capacity	kw	3.55	6.05	8.03	12.1	15.1	18.2	24.2	30.2	34.4	43.5
Input total power	KW	3	4.5	6.75	8.6	10.1	12.75	17.2	20.95	26.5	34
power supply		3PH 380V 50HZ
The refrigerant	name	R22
The refrigerant	way to control	Externally balanced thermal expansion valve
compressor	type	Fully enclosed scroll type (piston type)
compressor	Power (KW)	2.25	3.75	6	7.5	9	11.25	7.5*2	9.37*2	22.5	30
Condenser	type	Shell and tube
	Cooling water volume (m3/h)	2.1	3.5	6.2	6.9	7.9	10.6	13.9	15.8	21.1	28.7
	Inlet and outlet pipe diameter	1-1/2″	1-1/2″	1-1/2″	1-1/2″	1-1/2″	2"	2"	2-1/2″	3″	3″
Evaporator	type	Water tank coil (shell and tube type)
	Chilled water volume (m3/h)	0.69	1.12	1.81	2.55	3.15	3.85	5.11	6.3	5.89	8.13
	Inlet and outlet pipe diameter	1"	1"	1"	1-1/2″	1-1/2″	2"	2-1/2″	2-1/2″	2-1/2″	3″
Water pump	Power (KW)	0.75	0.75	0.75	1.1	1.1	1.5	2.2	2.2	4	4
Water pump	Head (M)	18	18	18	20	20	20	20	20	25	20
safety protection		Compressor overload protection, over current protection, high and low pressure protection, over temperature protection, flow protection, phase sequence/phase loss protection, exhaust overheating protection, antifreeze protection.
Mechanical Dimensions	Length (mm)	890	890	1170	1170	1170	1650	1650	1880	1880	1880
	Width (mm)	500	500	710	710	710	710	710	710	810	910
	Height (mm)	840	840	1200	1200	1200	1800	1880	1880	1880	1950
Machine weight	Kg	130	150	300	430	500	735	820	900	1150	1200

DX-W series industrial chiller parameter table (-20℃)

Model item

DX-03WL

DX-05WL

DX-08WL

DX-10WL

DX-12WL

DX-15WL

DX-20WL

DX-25WL

DX-30WL

DX-40WL
