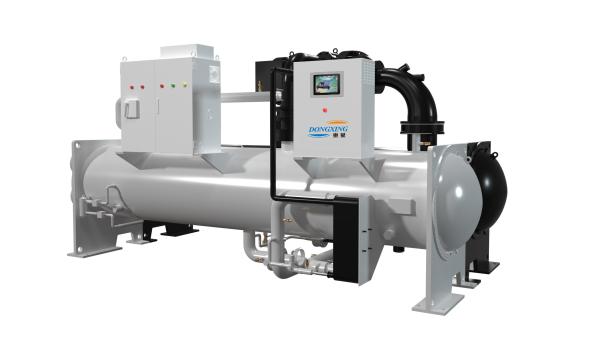

Energy Saving Magnetic Levitation Chiller 3000RT Magnetic Bearing Chiller Customizable
Energy Saving Magnetic Levitation Chiller 3000RT Magnetic Bearing Chiller Customizable
Specifications
Brand Name :
DONGXING
MOQ :
1
Packaging Details :
Plywood case
Delivery Time :
15-30days
Payment Terms :
T/T
Price :
6000-2000000RMB/Set
Refrigerant :
R134a
Compressor Type :
Magnetic Levitation Centrifugal
Control System :
Microprocessor-based controller
Safety Features :
High/Low Pressure Protection, Anti-freezing Protection, Overload Protection
Power Supply :
380-460 V, 3-phase, 50/60 Hz
Certifications :
CE, UL, CSA, ISO
Operating Temperature :
5-35°C
Warranty :
1 year
Efficiency :
Up to 40% more efficient than traditional chillers
Cooling Capacity :
1000-5000 kW
Display :
LCD Touch Screen
Dimensions :
Customizable
Weight :
Varies depending on cooling capacity
Compressor Speed :
Variable Speed
Noise Level :
Less than 70 dB
Description
State-of-the-Art Magnetic Levitation Chiller for Energy-Saving Cooling Solutions(150RT-3000RT)
Magnetic levitation chillers offer several remarkable advantages. First, they eliminate mechanical friction by using magnetic bearings to levitate the compressor shaft, reducing energy consumption by up to 30% compared to traditional models. This also extends the lifespan of key components, as there’s no need for oil lubrication, eliminating oil - related maintenance costs and potential contamination risks.​
These chillers feature high - precision variable - speed control, enabling seamless adjustment of cooling capacity according to real - time load demands. As a result, they maintain stable cooling performance while optimizing energy efficiency, ideal for both commercial buildings and industrial applications.​
Moreover, their compact size and quiet operation enhance installation flexibility and user comfort. With a smaller footprint, they fit into limited spaces, and the noise level is typically below 70 decibels, minimizing environmental disruption. Overall, magnetic levitation chillers provide an energy - saving, reliable, and user - friendly cooling solution.

Magnetic levitation variablefrequency water chiller-stand-alone


Model:DCWV

A125

A150

A200

A250

A300

A350

A400

A450

A500

A600

A700

A800

A900


refrigerating capacity

kW

440

527

717

909

1055

1250

1407

1590

1760

2110

2465

2815

3165


Input power

kW

72

86

112

144

167

194

213

242

262

320

376

433

492

COP

Full load

efficiency COP

kW/kW

6.11

6.13

6.40

6.31

6.32

6.44

6.60

6.57

6.72

6.59

6.56

6.50

6.43

kW/RT

0.58

0.57

0.55

0.56

0.56

0.55

0.53

0.54

0.53

0.53

0.54

0.54

0.55

Condenser


Water flow

m³/h

76

105

143

181

210

248

279

315

348

418

489

559

629

Water pressure drop

kPa

70

75

85

85

85

85

80

80

80

85

85

85

85

Water pipe intertace

DN

100

150

200

200

200

200

250

250

250

250

250

300

300

Evaporator


Water fow

m³/h

88

91

123

151

181

215

242

273

303

363

424

484

544

Waterpressure drop

kPa

65

70

80

80

80

80

60

60

60

80

80

80

80

Water pipe intertace

DN

100

150

200

200

200

200

200

200

200

250

250

300

300

Exterior dimension

A(long)

mm

3000

3000

3950

3950

4200

4200

4570

4570

4570

4850

4850

5000

5000

B(wide)

mm

1800

1800

1650

1650

2250

2250

2400

2400

2400

2500

2500

2650

2650

C(High)

mm

2200

2200

2200

2200

2300

2300

2600

2600

2600

2600

2600

2750

2750

Mounting dimensions

D

mm

2344

2344

3144

3144

3144

3144

3448

3448

3448

3750

3750

3900

3900

E

mm

1100

1100

1270

1270

1390

1390

1800

1800

1800

1800

1800

2000

2000

Transport weight

kg

4500

4800

5400

5800

6100

6500

7000

7500

8000

9000

10000

11000

12000

Operaing weight

kg

4700

5000

5700

6100

6600

7000

7700

8300

8800

10000

11000

12500

13500

Refrigerant fing amount

kg

125

150

200

250

300

350

400

450

500

600

700

800

900



(1)Evaporator:inlet water temperature 12℃,outlet water temperature 7℃

(2)Condenser:inlet water temperature 30℃,outlet water temperature 35℃

(3)The condenser and evaporator are designed for flange connection of two processes

(4)Applicable refrigerant:R134a

(5)Applicable voltage level:3Φ-380~460V

(6)The standard pressure on the water side of the unit is 1.0MPa,and the working pressure higher than 1.0MPa shall be indicated when ordering.

(7)Unit conversion:1RT(US refrigeration tons)=3.517kW

The performance parameter table of the unit is subject to change without notice due to product improvement.
