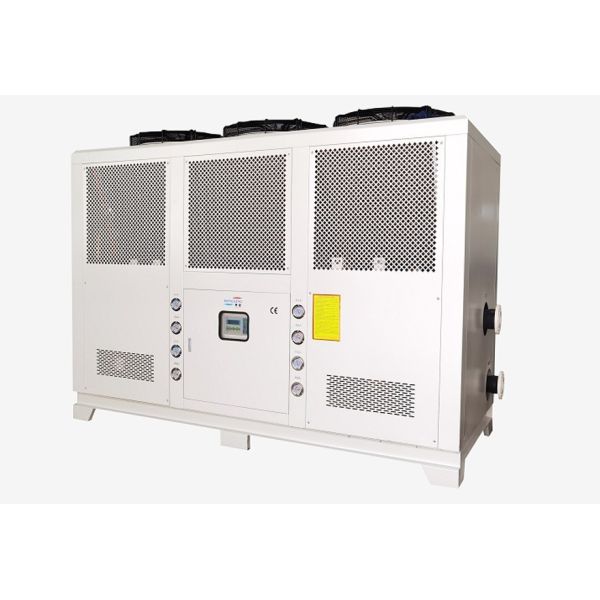

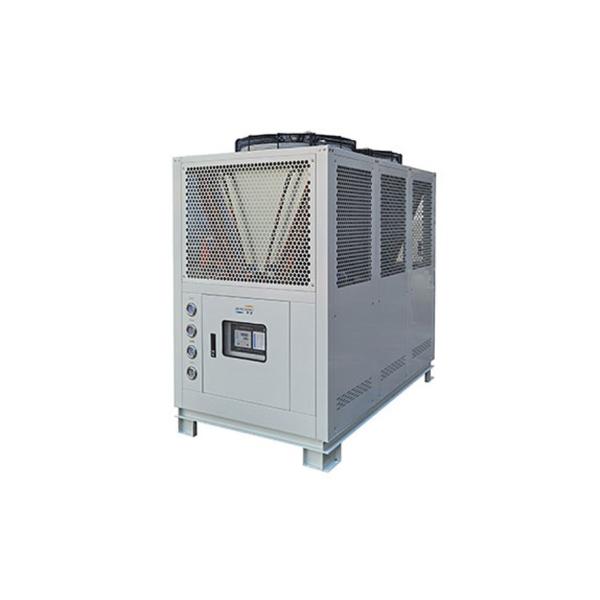

Name: Easy Installation Air Cooled Scroll Chiller Shopping Malls Low Temperature Chiller
Brand: DONGXING
Price: 6000 USD

MachineU > China Products

Easy Installation Air Cooled Scroll Chiller Shopping Malls Low Temperature Chiller

Specifications

Brand Name :

DONGXING

MOQ :

Packaging Details :

Plywood case

Delivery Time :

15-30days

Payment Terms :

T/T

Price :

6000-2000000RMB/Set

Place of Origin :

CHINA

Refrigerant :

R404A/R134a

Control System :

PLC

Compressor Brand :

Bitzer/Copeland

Safety Protection :

High and low pressure protection, anti-freezing protection, overload protection, phase sequence protection, etc.

Evaporator Water Pump Brand :

Grundfos

Compressor Type :

Scroll/Screw

Cooling Water Pump Brand :

PNC

Evaporator Type :

Shell and Tube

Power Supply :

380V/3Ph/50Hz

Condenser Type :

Air Cooled

Cooling Capacity :

5-200 tons

Unit Structure :

Compact design, easy installation and maintenance

Temperature Range :

-40 to -10 degrees Celsius

Condenser Fan Brand :

EBM/PAPST

Description

Can be customized acid-proof, anti-corrosion, frequency conversion, explosion-proof. DX-AL series air-cooled low-temperature chillers are a new generation of low-temperature refrigeration equipment carefully designed and developed by Dongxing Refrigeration Company for pharmaceutical, chemical and other special industries. The temperature range can be adjusted arbitrarily between -5°C and -30°C. The compressor of the small horse number model adopts the French "Maneurop", and the large horse number model adopts the international famous brand (Taiwan Han Bell, Zell) Screw compressors, air-cooled low-temperature chillers have sufficient refrigeration and complete specifications, which are a model of a new generation of refrigeration equipment.

DX-AL series air-cooled low-temperature chillers are a new generation of low-temperature refrigeration equipment carefully designed and developed by Dongxing Refrigeration Company for pharmaceutical, chemical and other special industries. The temperature range can be adjusted arbitrarily between -5°C and -30°C. The compressor of the small horse number model adopts the French "Maneurop", and the large horse number model adopts the international famous brand (Taiwan Han Bell, Zell) Screw compressors, air-cooled low-temperature chillers have sufficient refrigeration and complete specifications, which are a model of a new generation of refrigeration equipment.

Technical parameters of DX-AL low temperature chiller (-5℃)

Model item		DX-03AL	DX-05AL	DX-08AL	DX-10AL	DX-12AL	DX-15AL	DX-20AL	DX-25AL	DX-30AL	DX-40AL
Cooling capacity	kcal/h	3327	5184	8241	11607	14,315	17410	23214	18631	26696	38691
Cooling capacity	kw	3.87	6.03	9.58	13.5	16.65	20.25	27	33.3	31.05	45
Input total power	KW	3.18	4.86	7.25	9.4	10.9	13.47	18.8	22.55	28.5	36
power supply		3PH 380V 50HZ
The refrigerant	name	R22
The refrigerant	way to control	Externally balanced thermal expansion valve
compressor	type	Fully enclosed scroll type (piston type)
compressor	Power (KW)	2.25	3.75	6	7.5	9	11.25	7.5*2	9.37*2	22.5	30
Condenser
										<, /SPAN>
	type	High efficiency copper tube sleeve aluminum fin type + low noise external rotor fan
Evaporator	type	Water tank coil (shell and tube type)
	Chilled water volume (m3/h)	0.72	1.11	1.77	2.5	3.08	3.75	4.99	6.61	5.74	8.32
	Inlet and outlet pipe diameter	1"	1"	1"	1-1/2″	1-1/2″	2"	2"	2-1/2″	2-1/2″	3″
Water pump	Power (KW)	0.75	0.75	0.75	1.1	1.1	1.5	2.2	2.2	4	4
Water pump	Head (M)	18	18	18	20	20	20	20	20	25	20
safety protection		Compressor overload protection, over current protection, high and low pressure protection, over temperature protection, flow protection, phase sequence/phase loss protection, exhaust overheating protection, antifreeze protection.
Mechanical Dimensions	Length (mm)	930	1140	1310	1680	1680	1800	2000	2000	2200	2500
	Width (mm)	520	560	720	810	810	990	1130	1130	1130	1200
	Height (mm)	975	1040	1270	1280	1280	1680	1720	1914	2026	2250
Machine weight	Kg	135	175	310	450	530	750	835	920	1080	1125

Technical parameters of DX-AL low temperature chiller (-10℃)

Model item		DX-03AL	DX-05AL	DX-08AL	DX-10AL	DX-12AL	DX-15AL	DX-20AL	DX-25AL	DX-30AL	DX-40AL
Cooling capacity	kcal/h	2514	4023	6732	9440	11684	14160	18881	23369	20119	29405
Cooling capacity	kw	2.92	4.68	7.83	10.98	13.59	16.47	21.96	27.18	23.4	34.2
Total input power	KW	3.18	4.86	7.25	9.4	10.9	13.47	18.8	22.55	28.5	36
power supply		3PH 380V 50HZ
refrigerant	name	R22
refrigerant	Control method	Externally balanced thermal expansion valve
compressor	type	Fully enclosed scroll type (piston type)
compressor	Power (KW)	2.25	3.75	6	7.5	9	11.25	7.5*2	9.37*2	22.5	30
Condenser

	type	High efficiency copper tube sleeve aluminum fin type + low noise external rotor fan
Evaporator	type	Water tank coil (shell and tube)
	Chilled water volume (m3/h)	0.55	0.88	1.48	2.8	2.58	3.12	4.17	5.16	4.44	6.49
	Inlet and outlet pipe diameter	1″	1″	1″	1-1/2″	1-1/2″	2″	2″	2-1/2″	2-1/2″	3″
Water Pump	Power (KW)	0.75	0.75	0.75	1.1	1.1	1.5	2.2	2.2	4	4
Water Pump	Lift (M)	18	18	18	20	20	20	20	20	25	20
Security protection		Compressor overload protection, overcurrent protection, high and low pressure protection, overtemperature protection, flow protection, phase sequence/phase loss protection, exhaust overheat protection, antifreeze protection.
Mechanical Dimensions	Length (mm)	930	1140	1310	1680	1680	1800	2000	2000	2200	2500
	Width (mm)	520	560	720	810	810	990	1130	1130	1130	1200
	Height (mm)	975	1040	1270	1280	1280	1680	1720	1914	2026	2250
Mechanical weight	Kg	135	175	310	450	530	750	835	920	1080	1125

DX-AL low temperature chiller technical parameters (-15℃)

Model Item		DX-03AL	DX-05AL	DX-08AL	DX-10AL	DX-12AL	DX-15AL	DX-20AL	DX-25AL	DX-30AL	DX-40AL
Cooling capacity	kcal/h	2321	3985	5494	8047	10020	11994	16095	20088	222711	29018
Cooling capacity	kw	2.7	4.63	6.39	9.36	11.65	13.95	18.72	23.3	26.41	33.75
Total input power	KW	3.18	4.86	7.25	9.4	10.9	13.47	18.8	22.55	28.5	36
power supply		3PH 380V 50HZ
refrigerant	name	R22
refrigerant	Control method	Externally balanced thermal expansion valve
compressor	type	Fully enclosed scroll type (piston type)
compressor	Power (KW)	2.25	3.75	6	7.5	9	11.25	7.5*2	9.37*2	22.5	30
Condenser

	type	High efficiency copper tube sleeve aluminum fin type + low noise external rotor fan
Evaporator	type	Water tank coil (shell and tube)
	Chilled water volume (m3/h)	0.54	0.93	1.28	1.87	2.33	2.79	3.74	4.66	5.28	6.75
	Inlet and outlet pipe diameter	1″	1″	1″	1-1/2″	1-1/2″	2″	2″	2-1/2″	2-1/2″	3″
Water Pump	Power (KW)	0.75	0.75 ,	0.75	1.1	1.1	1.5	2.2	2.2	4	4
Water Pump	Lift (M)	18	18	18	20	20	20	20	20	25	20
Security protection		Compressor overload protection, overcurrent protection, high and low pressure protection, overtemperature protection, flow protection, phase sequence/phase loss protection, exhaust overheat protection, antifreeze protection.
Mechanical Dimensions	Length (mm)	930	1140	1310	1680	1680	1800	2000	2000	2200	2500
	Width (mm)	520	560	720	810	810	990	1130	1130	1130	1200
	Height (mm)	975	1040	1270	1280	1280	1680	1720	1914	2026	2250
Mechanical weight	Kg	135	175	310	450	530	750	835	920	1080	1125

DX-AL low temperature chiller technical parameters (-20℃)

Model Item		DX-03AL	DX-05AL	DX-08AL	DX-10AL	DX-12AL	DX-15AL	DX-20AL	DX-25AL	DX-30AL	DX-40AL
Cooling capacity	kcal/h	1810	3095	4294	6345	7931	7242	12690	15863	17093	21821
Cooling capacity	kw	2.1	3.6	4.99	7.38	9.22	8.42	14.76	18.45	19.88	25.38
Total input power	KW	3.18	4.86	7.25	9.4	10.9	13.47	18.8	22.55	28.5	36
power supply		3PH 380V 50HZ
refrigerant	name	R22
refrigerant	Control method	Externally balanced thermal expansion valve
compressor	type	Fully enclosed scroll type (piston type)
compressor	Power (KW)	2.25	3.75	6	7.5	9	11.25	7.5*2	9.37*2	22.5	30
Condenser

	type	High efficiency copper tube sleeve aluminum fin type + low noise external rotor fan
Evaporator	type	Water tank coil (shell and tube)
	Chilled water volume (m3/h)	42	0.72	1	1.48	1.85	1.69	2.96	3.7	3.99	5.1
	Inlet and outlet pipe diameter	1″	1″	1″	1-1/2″	1-1/2″	2″	2″	2-1/2″	2-1/2″	3″
Water Pump	Power (KW)	0.75	0.75	0.75	1.1	1.1	1.5	2.2	2.2	4	4
Water Pump	Lift (M)	18	18	18	20	20	20	20	20	25	20
Security protection		Compressor overload protection, overcurrent protection, high and low pressure protection, overtemperature protection, flow protection, phase sequence/phase loss protection, exhaust overheat protection, antifreeze protection.
Mechanical Dimensions	Length (mm)	930	1140	1310	1680	1680	1800	2000	2000	2200	2500
	Width (mm)	520	560	720	810	810	990	1130	1130	1130	1200
	Height (mm)	975	1040	1270	1280	1280	1680	1720	1914	2026	2250
Mechanical weight	Kg	135	175	310	450	530	750	835	920	1080	1125

DX-AL low temperature chiller technical parameters (-25℃)

Model Item		DX-03AL	DX-05AL	DX-08AL	DX-10AL	DX-12AL	DX-15AL	DX-20AL	DX-25AL	DX-30AL	DX-40AL
Cooling capacity	kcal/h	1005	1584	3310	4651	4307	5184	8628	10570	12435	15863
Cooling capacity	kw	1.17	1.84	3.85	5.41	5.01	6.03	10.03	12.29	14.46	18.45
Total input power	KW	3.18	4.86	7.25	9.4	10.9	13.47	18.8	22.55	28.5	36
power supply		3PH 380V 50HZ
refrigerant	name	R22
refrigerant	Control method	Externally balanced thermal expansion valve
compressor	type	Fully enclosed scroll type (piston type)
compressor	Power (KW)	2.25	3.75	6	7.5	9	11.25	7.5*2	9.37*2	22.5	30
Condenser

	type	High efficiency copper tube sleeve aluminum fin type + low noise external rotor fan
Evaporator	type	Water tank coil (shell and tube)
	Chilled water volume (m3/h)	0.25	0.39	0.62	1.15	1.06	1.28	2.12	2.6	3.06	3.91
	Inlet and outlet pipe diameter	1″	1″	1″	1-1/2″	1-1/2″	2″	2″	2-1/2″	2-1/2″	3″
Water Pump	Power (KW)	0.75	0.75	0.75	1.1	1.1	1.5	2.2	2.2	4	4
Water Pump	Lift (M)	18	18	18	20	20	20	20	20	25	20
Security protection		Compressor overload protection, overcurrent protection, high and low pressure protection, overtemperature protection, flow protection, phase sequence/phase loss protection, exhaust overheat protection, antifreeze protection.
Mechanical Dimensions	Length (mm)	930	1140	1310	1680	1680	1800	2000	2000	2200	2500
	Width (mm)	520	560	720	810	810	990	1130	1130	1130	1200
	Height (mm)	975	1040	1270	1280	1280	1680	1720	1914	2026	2250
Mechanical weight	Kg	135	175	310	450	530	750	835	920	1080	1125

DX-AL low temperature chiller technical parameters (-30℃)

Model Item		DX-03AL	DX-05AL	DX-08AL	DX-10AL	DX-12AL	DX-15AL	DX-20AL	DX-25AL	DX-30AL	DX-40AL
Cooling capacity	kcal/h	650	998	2205	3219	2955	3458	6059	7265	9643	10988
Cooling capacity	kw	0.75	1.16	2.56	3.74	3.43	4.02	7.04	8.45	10.05	12.76
Total input power	KW	3.18	4.86	7.25	9.4	10.9	13.47	18.8	22.55	28.5	36
power supply		3PH 380V 50HZ
refrigerant	name	R22
refrigerant	Control method	Externally balanced thermal expansion valve
compressor	type	Fully enclosed scroll type (piston type)
compressor	Power (KW)	2.25	3.75	6	7.5	9	11.25	7.5*2	9.37*2	22.5	30
Condenser

	type	High efficiency copper tube sleeve aluminum fin type + low noise external rotor fan
Evaporator	type	Water tank coil (shell and tube)
	Chilled water volume (m3/h)	0.16	0.25	0.56	0.82	0.75	0.88	1.55	1.86	2.22	2.82
	Inlet and outlet pipe diameter	1″	1″	1″	1-1/2″	1-1/2″	2″	2″	2-1/2″	2-1/2″	3″
Water Pump	Power (KW)	0.75	0.75	0.75	1.1	1.1	1.5	2.2	2.2	4	4
Water Pump	Lift (M)	20	20	20	20	20	20	20	20	25	20
Security protection		Compressor overload protection, overcurrent protection, high and low pressure protection, overtemperature protection, flow protection, phase sequence/phase loss protection, exhaust overheat protection, antifreeze protection.
Mechanical Dimensions	Length (mm)	930	1140	1310	1680	1680	1800	2000	2000	2200	2500
	Width (mm)	520	560	720	810	810	990	1130	1130	1130	1200
	Height (mm)	975	1040	1270	1280	1280	1680	1720	1914	2026	2250
Mechanical weight	Kg	135	175	310	450	530	750	835	920	1080	1125

DX-AL low temperature chiller technical parameters (-35℃)

Model Item		DX-03AL	DX-05AL	DX-08AL	DX-10AL	DX-12AL	DX-15AL	DX-20AL	DX-25AL	DX-30AL	DX-40AL
Cooling capacity	kcal/h	371	680	1315	2066	2321	4178	4604	5958	7312	8434
Cooling capacity	kw	0.43	0.79	1.53	2.4	2.7	4.86	5.35	7.93	8.5	9.81
Total input power	KW	3.18	4.86	7.25	9.4	10.9	13.47	18.8	22.55	28.5	36
power supply		3PH 380V 50HZ
refrigerant	name	R22
refrigerant	Control method	Externally balanced thermal expansion valve
compressor	type	Fully enclosed scroll type (piston type)
compressor	Power (KW)	2.25	3.75	6	7.5	9	11.25	7.5*2	9.37*2	22.5	30
Condenser	type	High efficiency copper tube sleeve aluminum fin type + low noise external rotor fan
Evaporator	type	Water tank coil (shell and tube)
	Chilled water volume (m3/h)	0.09	0.17	0.33	0.53	0.59	1.07	1.18,	1.853	1.87	2.16
	Inlet and outlet pipe diameter	1″	1″	1″	1-1/2″	1-1/2″	2″	2″	2-1/2″	2-1/2″	3″
Water Pump	Power (KW)	0.75	0.75	0.75	1.1	1.1	1.5	2.2	2.2	4	4
Water Pump	Lift (M)	20	20	20	20	20	20	20	20	25	20
Security protection		Compressor overload protection, overcurrent protection, high and low pressure protection, overtemperature protection, flow protection, phase sequence/phase loss protection, exhaust overheat protection, antifreeze protection.
Mechanical Dimensions	Length (mm)	930	1140	1310	1680	1680	1800	2000	2000	2200	2500
	Width (mm)	520	560	720	810	810	990	1130	1130	1130	1200
	Height (mm)	975, /P,	1040	1270	1280	1280	1680	, 1720	1914	2026	2250
Mechanical weight	Kg	135	175	310	450	530	750	835	920	1080	1125
