PP PE Plastic Stretch Film Waste Recycling Shredder Crusher Energy Saving Large Capacity
PP PE Plastic Stretch Film Waste Recycling Shredder Crusher Energy Saving Large Capacity
Specifications
Blade Material :
Alloy Tool Steel (HRC > 60)
Feeding Speed :
Adjustable
Shredding Capacity :
Up to 2000KG+
Blades Length :
800 mm
Voltage :
Customizable
MOQ :
1 Set
Conveyor Belt Size :
720 x 3,000 mm
Export Markets :
European Union, Southeast Asia, Middle East, South America
Brand Name :
XH-JOFUL
After-sales Service :
Field Installation, Commissioning and Training, Online Support
Payment Terms :
T/T,Western Union
Supply Ability :
50 Sets per Month
Blades Type :
Rotary Cutter
Machine Weight :
4,200 kg
Model Number :
JF-1600F
Packaging Details :
Standard export wooden case with moisture-proof film, reinforced steel frame for machine fixation
Price :
USD 5,000-25,000 / Set
Shredding Material :
PP, PE, HDPE, LDPE, Plastic Film, Woven Bags, Jumbo Bags
Main Motor Power :
8P 22 kW
Certification :
CE, ISO 9001:2015
Feeding Motor :
3.0 kW Variable Frequency
Delivery Time :
15-50 days
Screen Mesh Size :
Customized, Removable
Place of Origin :
China
Description

PP PE Plastic Stretch Film Waste Recycling Shredder Crusher

PP PE Plastic Stretch Film Waste Recycling Shredder Crusher Energy Saving Large Capacity

Advantages

ENERGY SAVING

Rotary blades working like a scissors, very power saving. In addition we use 8P motor, its cutting power is double compared with 4P motor. In this way, we can guarantee the cutting strength while lower the electricity consumption.
LARGE CAPACITY

The machine is with removable sieve mesh, mesh size can be customized. For light weight plastic films, hourly capacity can reach more than 2000KG. For heavy materials like fabric, hourly capacity can be more than 4000KG.
WIDELY APPLICATION

Our machine can be used for all soft type materials, such as plastic films, BOPPS, bags, Raffia, jumbo bags, fabric, NonWoven, cotton, foam, sponge, mattress, wool, fiber, yarns, paper, nets. As long as its soft type materials.

Product Overview

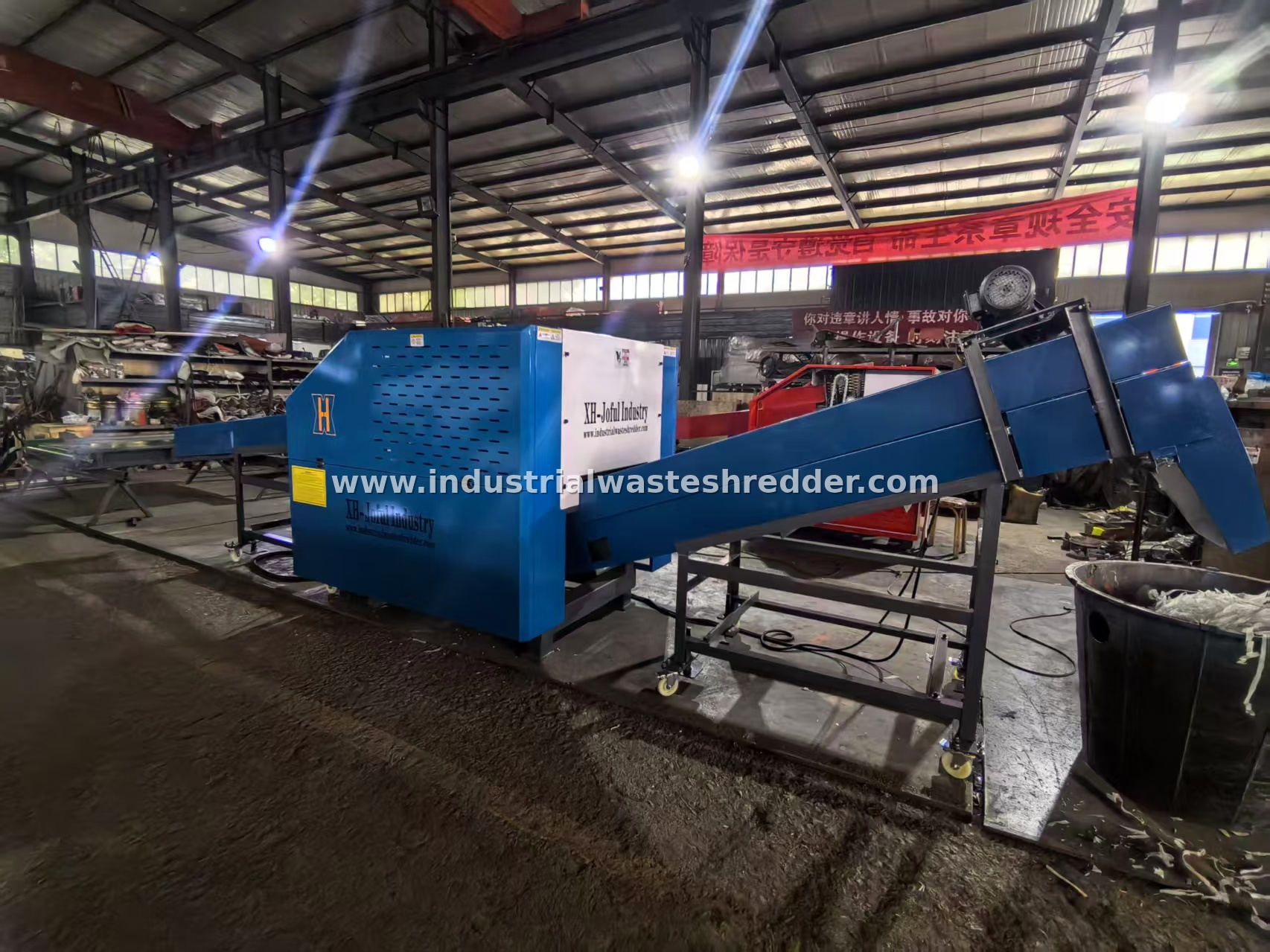

This rotary blades shredder crusher is purpose-built for PP, PE stretch film, BOPPS packaging, and LDPE film recycling and all soft type materials crush.

Its 8-pole 22KW main motor delivers high torque at low RPM for consistent, jam-free shredding of packaging bags, woven sacks, and jumbo bags. A 3.0KW variable-frequency drive controls the 720×3,000mm conveyor belt, allowing operators to fine-tune feed speed for optimal throughput.

Key Features

⚡ 8P 22KW Motor

8-pole low-speed design ensures high torque output with reduced energy consumption. Built for continuous heavy-duty cycles.

📈 Smart Feeding

3.0KW VFD motor drives 720×3000mm belt. Feed speed fully adjustable for optimal throughput.

🔪 Alloy Steel Blades

Premium alloy tool steel, HRC > 60. Re-sharpenable edges for extended service life.

🇪🇺 CE Certified

Compliant with EU Machinery Directive 2006/42/EC. Meets European safety standards.

🔄 Screen Mesh

Removable, size customized. Minimum 2mm for various cutting sizes.

Technical Specifications

ModelJF-1600F
Main Motor8P 22KW
Feeding Motor3.0KW Variable Frequency
Feeding SpeedAdjustable
Conveyor Belt720 × 3,000mm
Blade MaterialAlloy Tool Steel (HRC >60)
Shredding CapacityUp to 2000KG+
Blades Length800mm
Blades TypeRotary Cutter
Screen MeshSize is Customized, Removable
Machine Weight4200KG
VoltageCustomizable
CertificationCE, ISO 9001:2015

Applications

All kinds plastic films All kinds bags, raffia All kinds fabric, clothes, cotton, mattress, NonWoven Fiber, Yarns, Wool Foam, Sponge Paper, nets, straw, carpet

Why Choose XH-JOFUL

With 18 years of manufacturing and export experience, XH-JOFUL specializes in waste recycling shredding equipment. Our machines are exported worldwide, backed by mature technology, extensive industry expertise, and a complete after-sales service system. From pre-sales consultation to installation, commissioning, and lifetime technical support, we ensure every customer receives reliable, professional service at every stage.
