Grain Automatic Hopper Screw Feeder Stainless Steel
Grain Automatic Hopper Screw Feeder Stainless Steel
Specifications
Brand Name :
TECHANG
Model Number :
TCGX
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
20 sets per month
Delivery Time :
20~30 working days
Packaging Details :
Wooden case
Name :
Grain Stainless Steel Automatic Hopper Screw Feeder
Material :
Stainless Steel
Length :
3~70 m
Diameter :
160~400 mm
Inclination Angle :
<90 degree
Rotation Speed :
20~190 r/min
Feature :
Simple Operation
Usage :
Material Transimission
Function :
Material conveying
Customized :
Acceptable
Description

Grain Stainless Steel Automatic Hopper Screw Feeder

Description

Grain Stainless Steel Automatic Hopper Screw Feeder is the main units for mechanical transport operation of various departments of industry and agricultures, auger conveyor feeder can be used to reduce labor intensity and improve efficiency. The working temperature of the auger conveyor feeder is usually -20 ~ 40℃, the temperature of the conveying material is generally -20 ~ 80℃, the auger conveyor feeder suitable for angle arrangement, inclination to not exceed 90.Grain Automatic Hopper Screw Feeder Stainless Steel

Application

Grain Stainless Steel Automatic Hopper Screw Feeder is widely used in building materials, metallurgy, chemical, electric power, coal, machinery, light industry, grain and food industry, suitable for conveying powder, granular, small pieces of materials.

Advantage

1. Simple structure, easy operation.

2. Small section of whole machine, being suitable for horizontal or tilted transportation.

Structure

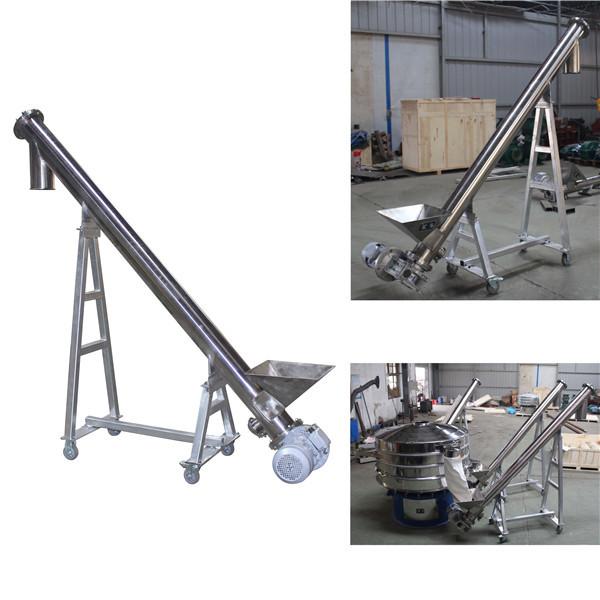

Grain Stainless Steel Automatic Hopper Screw Feeder consists of motor, reducer, coupler, hopper, inlet, outlet, blade, bracket, and so on. The follow detailed pictures will help you to know more about it.

Grain Automatic Hopper Screw Feeder Stainless Steel

Technical data

There are different models of Grain Stainless Steel Automatic Hopper Screw Feeder for your reference.

Model Diameter Screw Rotation Speed Inclination Angle Conveyor Length
(mm) (r/min) (degree) (m)
GX160 165 20,30,35,45,60,75,90,120,150,190,207,290 <90 3~30
GX219 219
GX273 273
GX325 325

Grain Automatic Hopper Screw Feeder Stainless Steel
