Carbon Steel Sawdust Screw Conveyor Feeder
Carbon Steel Sawdust Screw Conveyor Feeder
Specifications
Brand Name :
TECHANG
Model Number :
TCGX
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
20 sets per month
Delivery Time :
20~30 working days
Packaging Details :
Wooden case
Name :
Carbon Steel Sawdust Screw Conveyor Feeder
Diameter :
108~600 mm
Length :
3~70 m
Inclination Angle :
<90 degree
Rotation Speed :
20~190 r/min
Speed :
Adjustable
Usage :
Material Transimission
Feature :
Simple Operation
Application :
Sawdust
Customized :
Acceptable
Description

Carbon Steel Sawdust Screw Conveyor Feeder

Working principle

Working principle of Carbon Steel Sawdust Screw Conveyor Feeder is rotating spiral blade for screw conveyor conveying the material goes on, the material is not spinning force with the blades of screw conveyor is its own weight and screw conveyor casing material for material friction screw conveyor on the axis of rotation of the welding of spiral blade, blade surface type according to the conveying material have different entity type belt type surface type, such as type of screw conveyor screw axis of vane surface terminal at the direction of material movement have thrust bearings to the material to spiral axial reaction force, when the captain a long, should add hanging bearing in the middle.

Carbon Steel Sawdust Screw Conveyor Feeder

Carbon Steel Sawdust Screw Conveyor Feeder

Carbon Steel Sawdust Screw Conveyor Feeder

Advantage

1. Simple structure, easy operation and excellent sealing performance.
2. Small section of whole machine, being suitable for horizontal or tilted transportation.
3. Charging and Discharging can be conducted at more than one points in the middle.

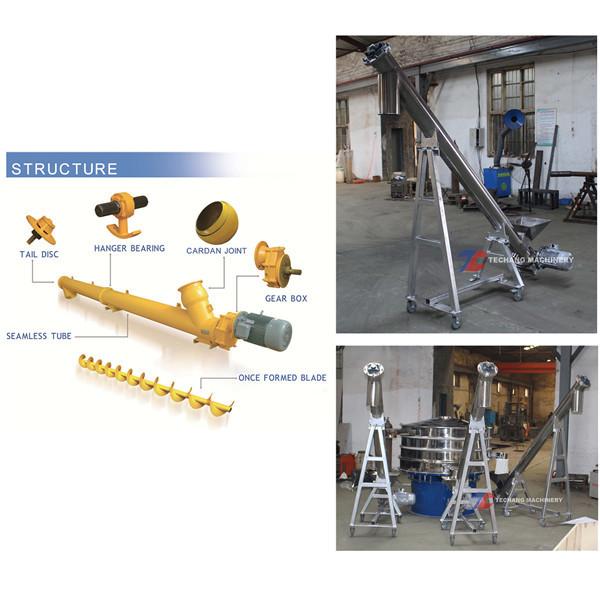

Structure

Carbon Steel Sawdust Screw Conveyor Feeder can convey sorts of powder materials. Combined with the package-machine of our company, also can be used separately. Complete machine made in stainless steel or carbon steel, the machine consists of motor, reducer, coupler, inlet, screw blade, bracket, lifting shackle, the end bearing, outlet, and so on.

Carbon Steel Sawdust Screw Conveyor Feeder

Technical data

The screw diameter range of Carbon Steel Sawdust Screw Conveyor Feeder is 108 to 600mm. The maximum conveying length can be 70 meters.

Model Diameter Screw Rotation Speed Inclination Angle Conveyor Length
(mm) (r/min) (degree) (m)
GX160 165 20,30,35,45,60,75,90,120,150,190,207,290 <90 3~30
GX219 219
GX273 273
GX325 325

Customer Visiting

If you are interested in Carbon Steel Sawdust Screw Conveyor Feeder, welcome to reach us here and visit our factory.
