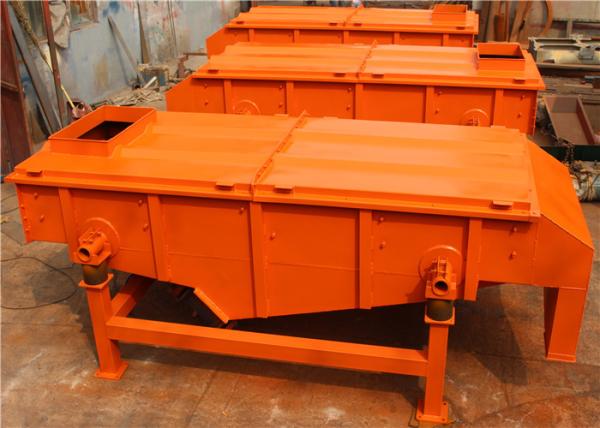

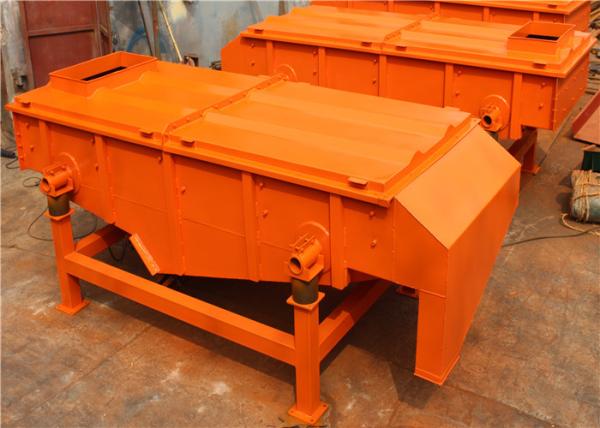

Carbon Steel Stone Gravel Linear Vibrating Screen

Introduction

Carbon Steel Stone Gravel Linear Vibrating Screen is a kind of closed and light weight vibrating sieve equipment, it uses a vibration motor as the vibration source, which make the material jump in straight line on the screen surface, material evenly go into the feed port of linear vibrating screen from the feeding machine, generating multiple materials through the multilayer Carbon Steel Stone Gravel Linear Vibrating Screen, and be discharged from each outlets.

Working Principle

Carbon Steel Stone Gravel Linear Vibrating Screen adopt twin vibrating exciters driving, when the two exciters rotated synchronously or reversed, the exciting force from the eccentric blocks will cancel each other on the direction of parallel to the motor axis, but stacking into a force on the direction of perpendicular to motor shaft, so the materials’ movement is one straight line. There is one inclination between the axial direction of two motors and screening surface, under the action of exciting force and the gravity force of the material, the materials are thrown up on the screen of Carbon Steel Stone Gravel Linear Vibrating Screen, jumps and moves forward in a straight line, achieving the sieving and classification purpose.

Technical data

The below table shows the detailed data of different models of Carbon Steel Stone Gravel Linear Vibrating Screen for your reference. And we will choose a suitable model according to your materials and application.

Application

Carbon Steel Stone Gravel Linear Vibrating Screen is widely used in food industry, mining industry, chemical industry, medical industry, waste treatment, etc. Main functions are removing impurity, filtering, classification of material, solid-liquid separation, screening.
