100T/H Industrial Linear Vibrating Screen Machine Stainless Steel
100T/H Industrial Linear Vibrating Screen Machine Stainless Steel
Specifications
Brand Name :
TECHANG
Model Number :
TCDZSF
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiatable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
50 sets per month
Delivery Time :
20~30 working days
Packaging Details :
Wooden case
Name :
Stainless Steel Industrial Linear Vibrating Screen Machine
Capacity :
50 KG~100 T/H
Frequency :
960 t/min
Angle of oscillation :
45~60 degree
Layer(s) :
1 layer
Amplitude :
6-8 mm
Customized :
Acceptable
Description

Stainless Steel Industrial Linear Vibrating Screen Machine

Introduction

Stainless Steel Industrial Linear Vibrating Screen Machine is a high precision fine powder screening machine.The fundamental principle of vibrating screen sifter is that the unbalanced weight dropper installed on the top and bottom ends of motor changes the rotation motion of motor to horizontal, vertical and inclined three-dimensional motions, and then passes this motion to screen surface, achieving the purpose of classification, filtering and removal of impurities. Stainless Steel Industrial Linear Vibrating Screen Machine can be used for grain, powder, granule, flake, liquid materials.

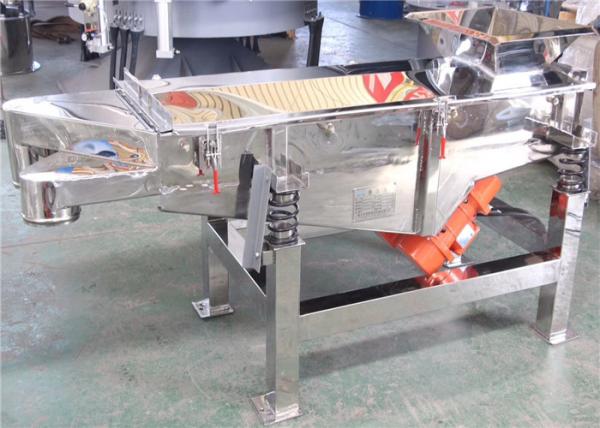

There are different materials for Stainless Steel Industrial Linear Vibrating Screen Machine, such as stainless steel, carbon steel, the pictures as follows:

100T/H Industrial Linear Vibrating Screen Machine Stainless Steel

100T/H Industrial Linear Vibrating Screen Machine Stainless Steel

Technical data

The below table shows the detailed data of different models of Stainless Steel Industrial Linear Vibrating Screen Machine for your reference. And we will choose a suitable model according to your materials and application.

Model Size of screen surface Number of layers of screen Mesh size Number of vibration amplitude Motor power
DZSF520 500*2000 1-6 2-400 mesh 960r/min 4-8 2×0.4
DZSF825 800×2500 1-6 2×(0.4-0.75)
DZSF1020 1000×2000 1-6 2×(0.75-1.5)
DZSF1030 1000×3000 1-6 2×(0.75-1.5)
DZSF1230 1200×3000 1-6 2×(0.75-3)
DZSF1530 1500×3000 1-6 2×(0.75-3)
DZSF1540 1500×4000 1-6 2×(0.75-3)

Application

Stainless Steel Industrial Linear Vibrating Screen Machine is widely used in chemical industry, food industry, mining industry, medical industry, waste treatment, etc. Main functions are removing impurity, filtering, classification of material, solid-liquid separation, screening.

Features

1. Low consumption with high yield and low cost.
2. Fully enclosed structure, automatic layout, more suitable for pipeline operations.
3. Good sealing without dust flying.
