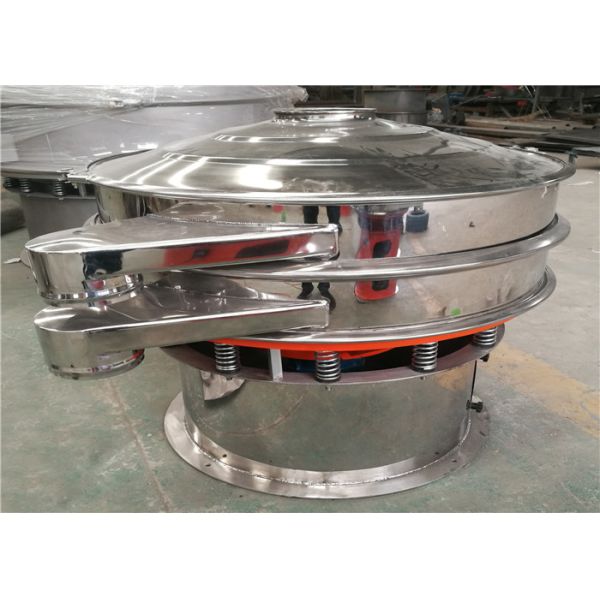

SUS304 Rotary Vibrating Screen For Sulfur Powder 1-5 Layers
SUS304 Rotary Vibrating Screen For Sulfur Powder 1-5 Layers
SUS304 Rotary Vibrating Screen For Sulfur Powder 1-5 Layers
SUS304 Rotary Vibrating Screen For Sulfur Powder 1-5 Layers
Specifications
Brand Name :
TECHANG
Model Number :
XZS
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
50 sets/month
Delivery Time :
20 working days
Packaging Details :
Wooden case
Name :
Stainless Steel Rotary Vibrating Screen For Sulfur Powder
Material :
Stainless Steel
Layer(s) :
1-5 Layers
Mesh size :
2~500 mesh
Capacity :
20 KG~20T/H
Surface :
Mirror polish
Motor Type :
Vibrating motor
Frequency :
50 / 60 HZ
Application :
Sulfur Powder
Customized :
Acceptable
Description

Stainless Steel Rotary Vibrating Screen For Sulfur Powder

Product introduction


Stainless Steel Rotary Vibrating Screen For Sulfur Powder is a high precision fine powder sieving machine. The fundamental principle of round separator is that the eccentric hammers installed on the top and bottom ends of motor changes the rotation motion of motor to horizontal, vertical and inclined three-dimensional motions, and then passes this motion to screen surface, achieving the purpose of classification, filtering and removal of impurities.

SUS304 Rotary Vibrating Screen For Sulfur Powder 1-5 Layers

Application


1. Chemical industry: resin, pigment, cosmetic, coatings, Chinese medicine powder.
2. Food industry: sugar powder, starch, salt, rice noodle, milk powder, egg powder, sauce.
3. Metallurgy, Mine industry: aluminum powered, copper powder, ore alloy powder, welding rod powder.

SUS304 Rotary Vibrating Screen For Sulfur Powder 1-5 Layers

Advantages

1. Can be used with single or multilayer screen mesh.

2. Automatic discharge of materials, continuous operation.

3. No dead corner of parts, easy rinse thoroughly and disinfection.

4. High screening precision, high efficiency, suitable for any powder, grain and mucus materials.

SUS304 Rotary Vibrating Screen For Sulfur Powder 1-5 Layers

Technical data

Stainless Steel Rotary Vibrating Screen For Sulfur Powder can be up to 5 layers, and the mesh size can reach 500 mesh. We will choose a suitable model according to your specific materials and application.

Model

Power

(kw)

Diameter

(mm)

 Layer

Mesh Size

(mesh)

Frequency

(rpm)
TCXZS400 0.37 360 1-3 1-500 1500
TCXZS600 0.55 560 1-3 1-500 1500
TCXZS800 0.75 760 1-3 1-500 1500
TCXZS1000 1.1 960 1-3 1-500 1500
TCXZS1200 1.5 1130 1-3 1-500 1500
TCXZS1500 2.2 1430 1-3 1-500 1500
TCXZS1800 2.2 1730 1-3 1-500 1500
TCXZS2000 3 1730 1-3 1-500 1500

The following pictures show the different layers of rotary vibrating screen sieve.

SUS304 Rotary Vibrating Screen For Sulfur Powder 1-5 Layers
